Engine Control Module Bracket Replacement

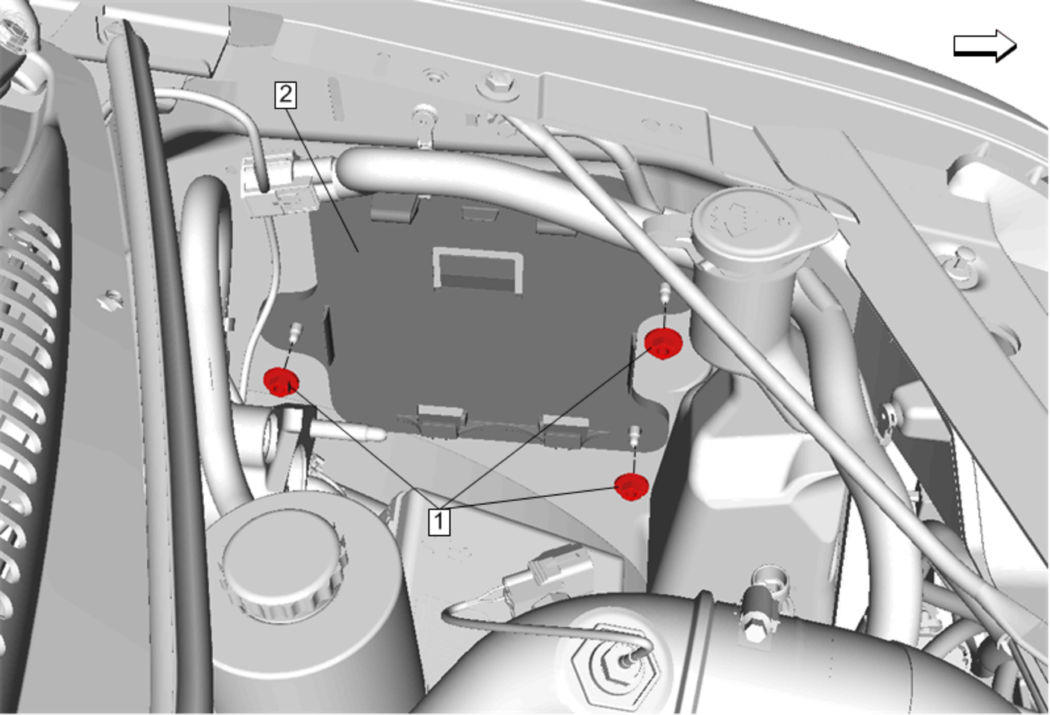

Fig 1: Bracket
GM4601472Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Refer to Engine Control Module Replacement
1 Engine Control Module Bracket Nut [3x]
CAUTION:

Refer to Fastener Caution .


tighten
22 N.m. (16 lb ft)
2 Engine Control Module Bracket
