Exhaust Particulate Sensor Replacement

Courtesy of

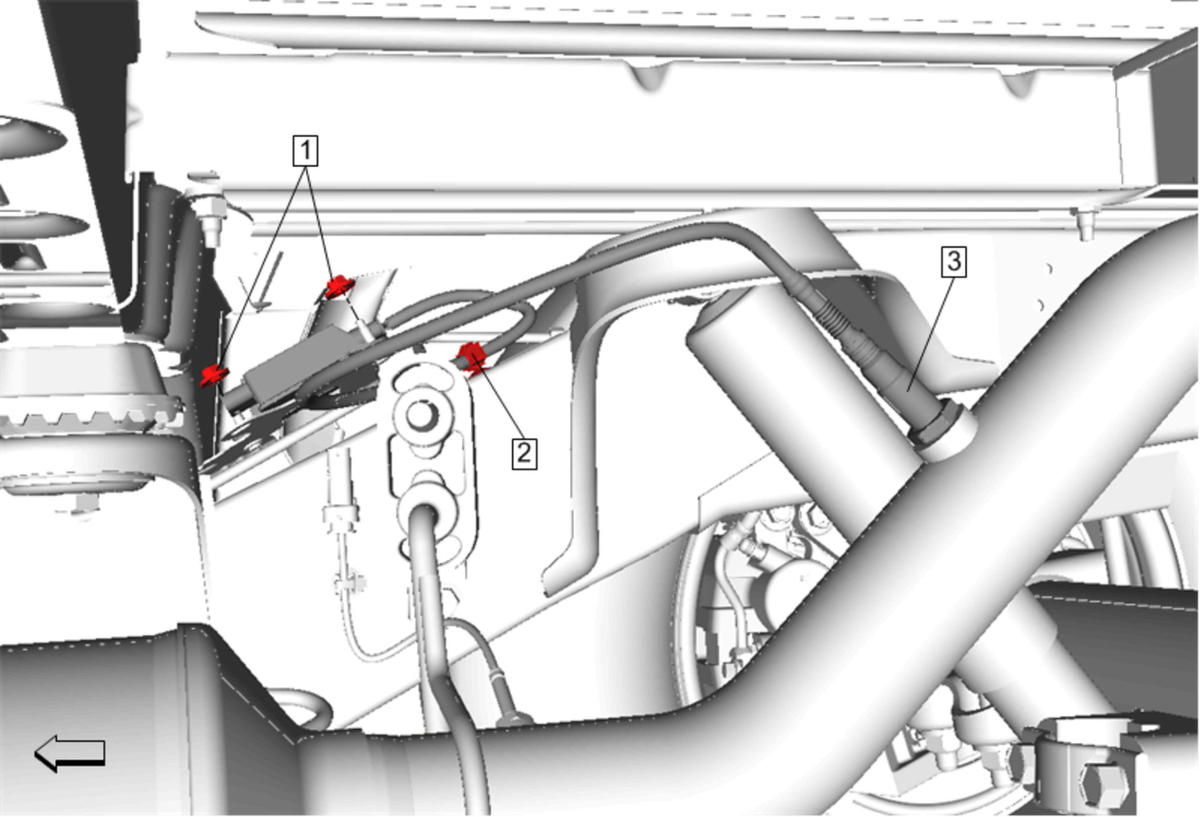

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Single Battery) or Battery Negative Cable Disconnection and Connection (Dual Battery) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Disconnect the electrical connector.
1	Exhaust Particulate Sensor Fastener [2x] CAUTION: Refer to Fastener Caution . tighten 10.5 N.m. (93 lb in)
2	Exhaust Particulate Sensor Wire Clip
3	Exhaust Particulate Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Perform the diesel particulate filter (DPF) regeneration enable. Refer to Diesel Particulate Filter (DPF) Regeneration Enable tighten 50 N.m. (37 lb ft)
