Fuel Level Sensor Replacement

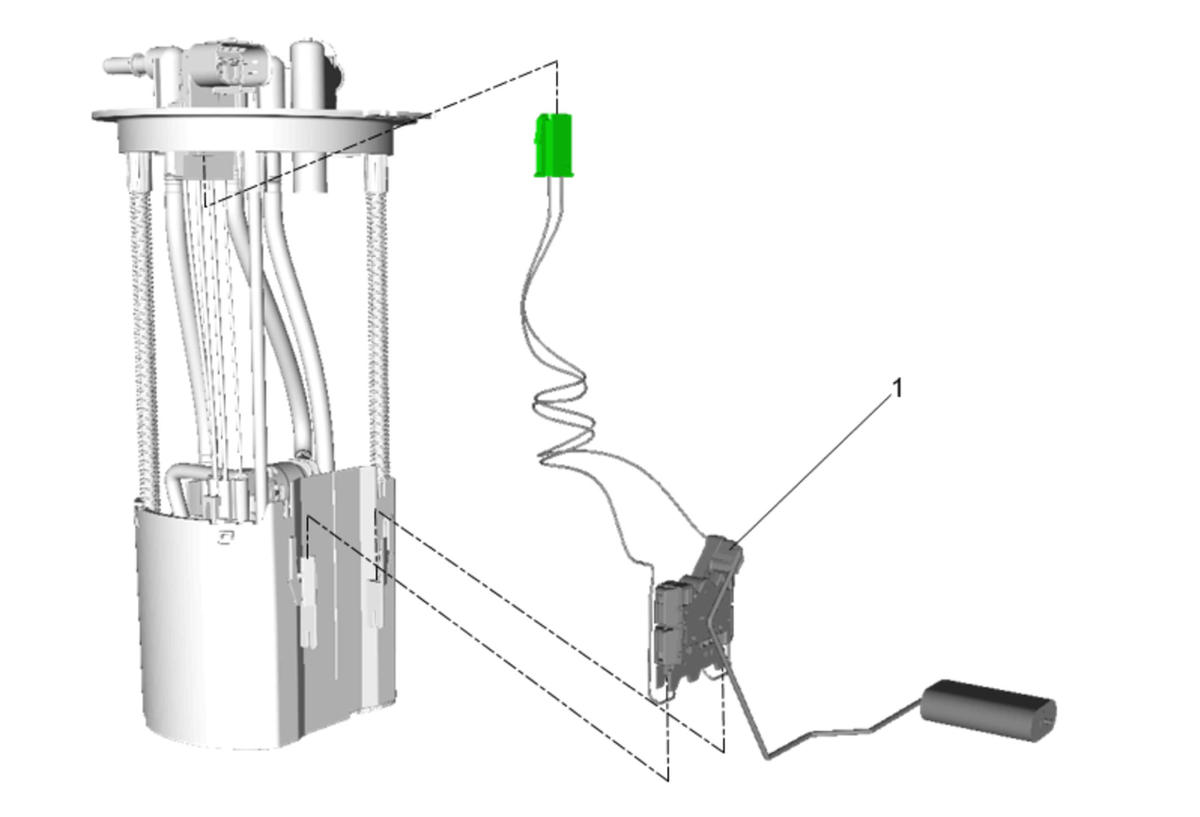

GM4601628Courtesy of
Callout Component Name
Preliminary Procedure
Refer to Fuel Tank Fuel Pump Module Replacement
1 Fuel Level Sensor

Procedure

  1. Release the plastic retaining tabs.
  2. Disconnect the electrical connector.
