Accessory Wakeup

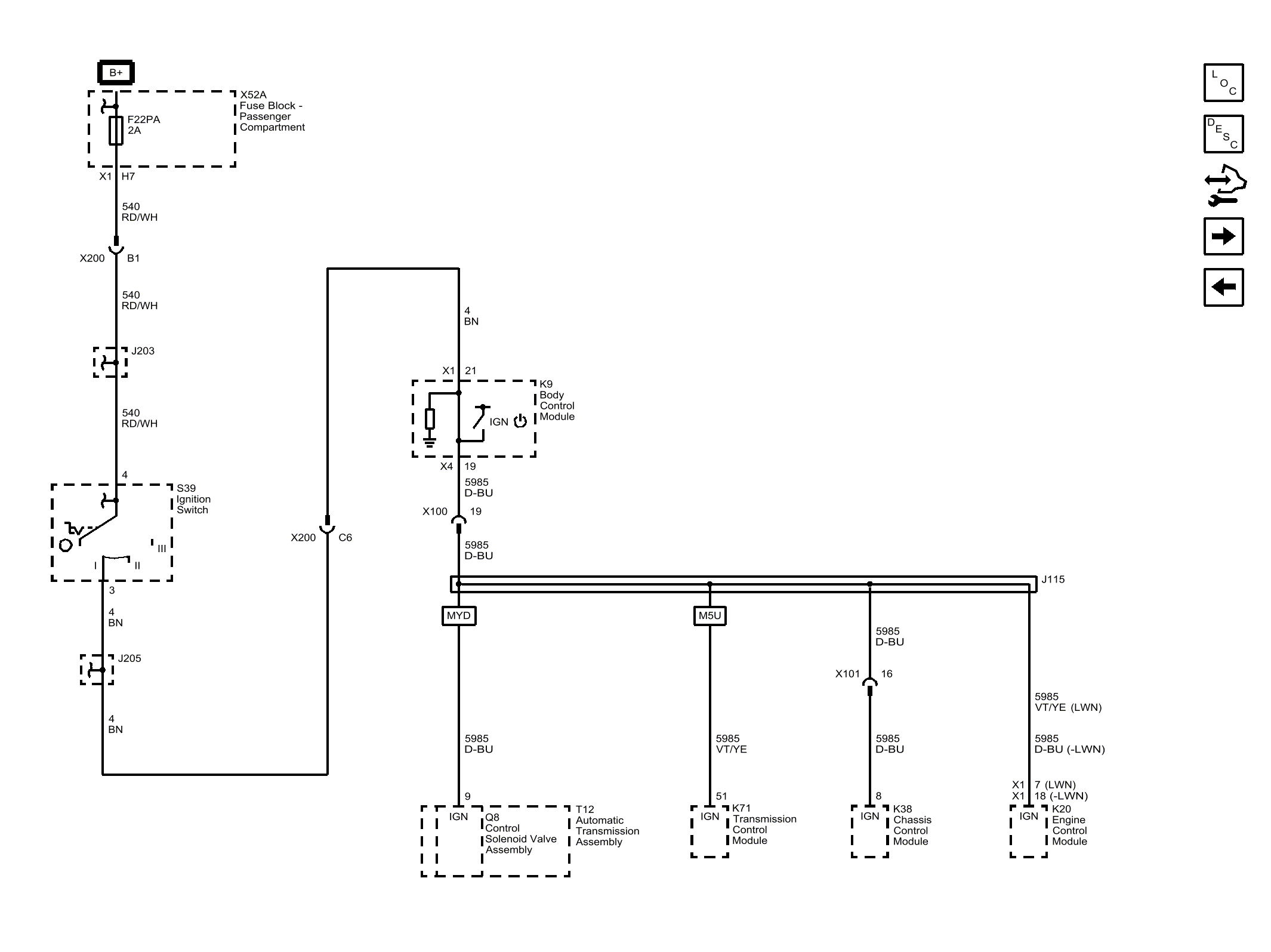

Fig 1: Accessory Wakeup
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
