Chevrolet
>>
2017
>>
Express 2500 Base, Van Cargo Extended, 4.8L Eng VIN F
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams (Object Detection System And Pedestrian Protection System)
>>
Object Detection Wiring Schematics (Object Detection System And Pedestrian Protection System)
>>
Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)

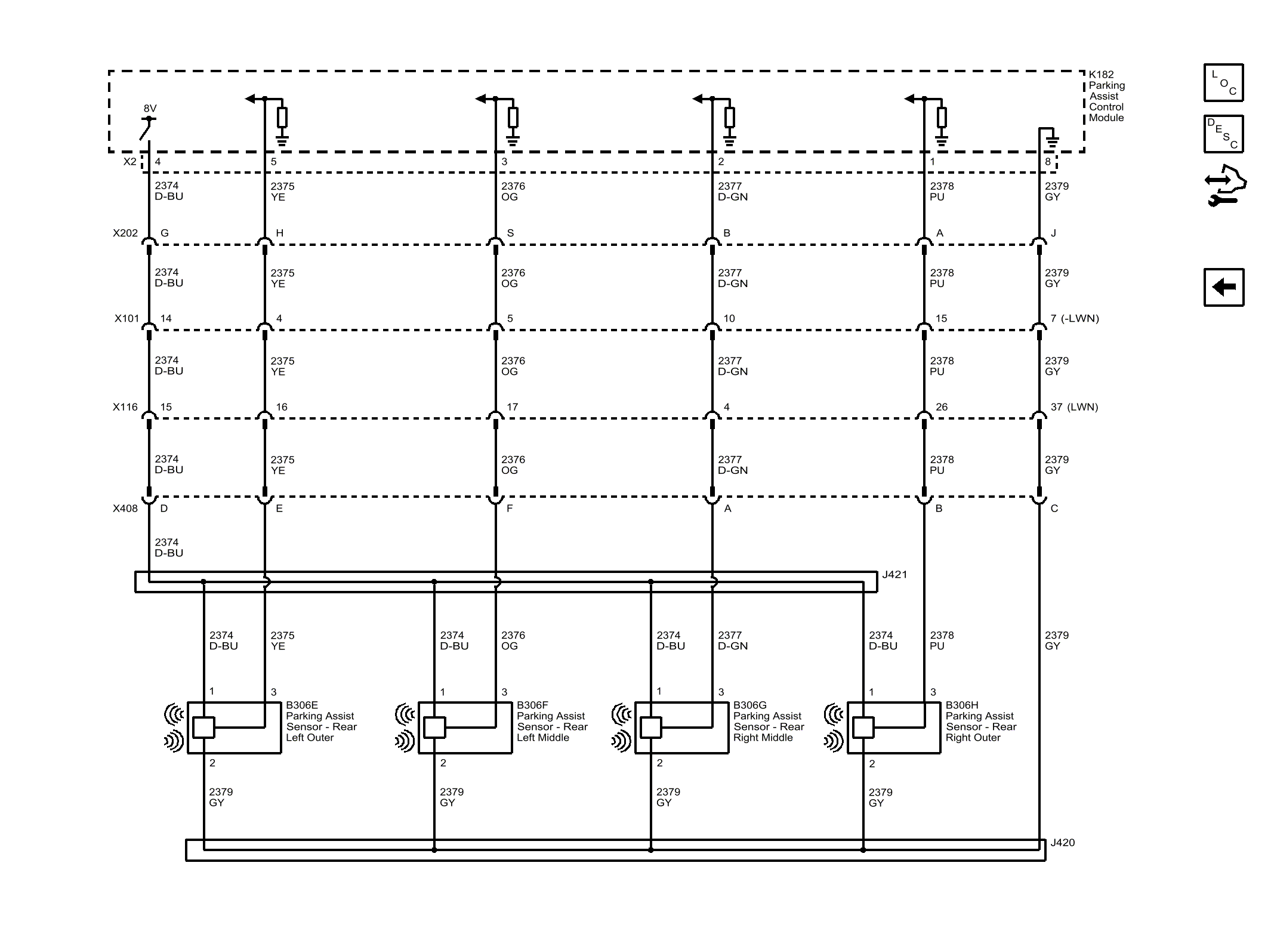

Fig 1: Rear Object Sensors (UD7)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
