Express 3500 Base, Van Cargo Extended, 2.8L Eng VIN 1
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
BCM Power, Ground and Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BCM Power, Ground and Serial Data

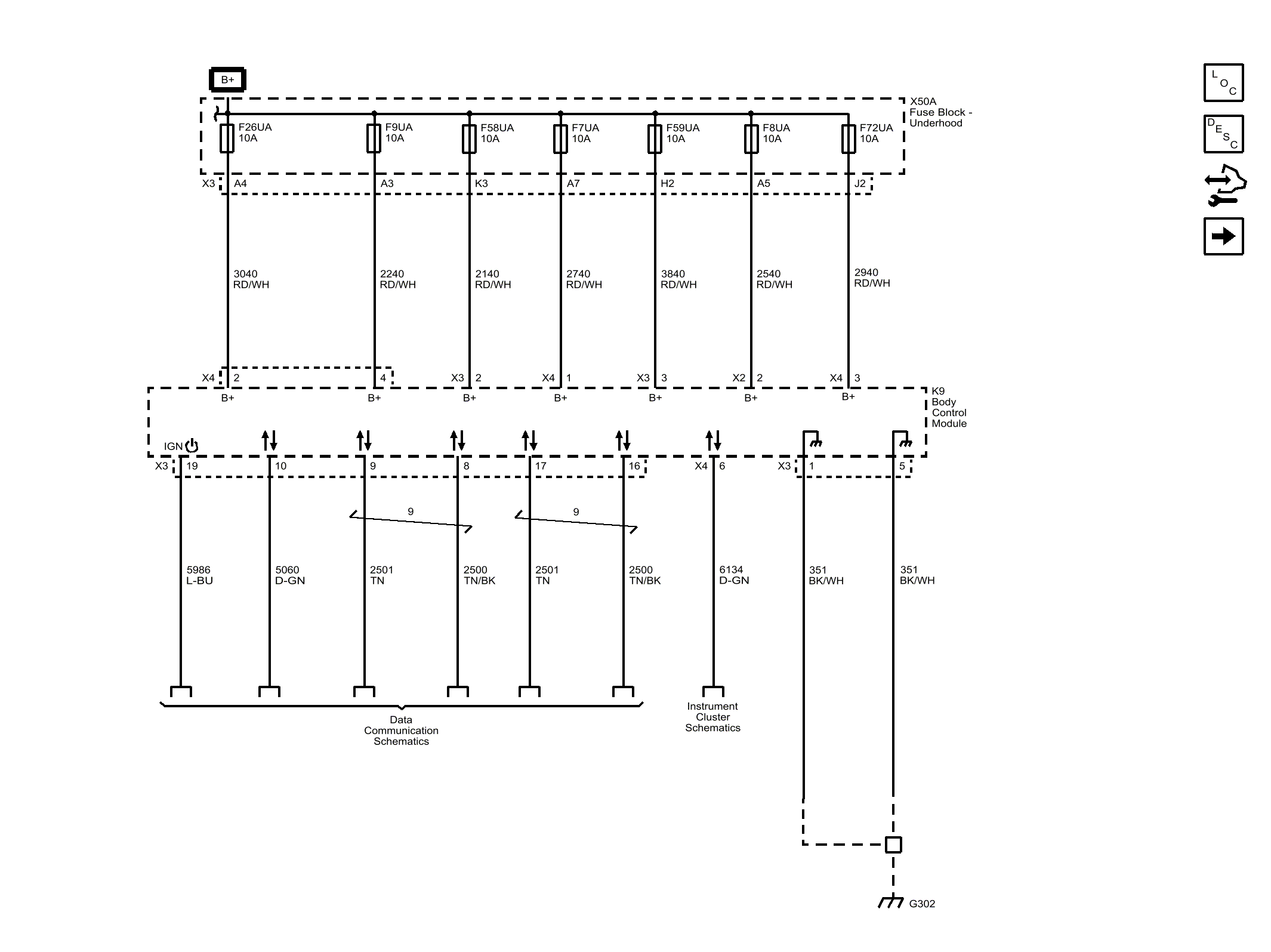

Fig 1: BCM Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
