Front View Camera Replacement

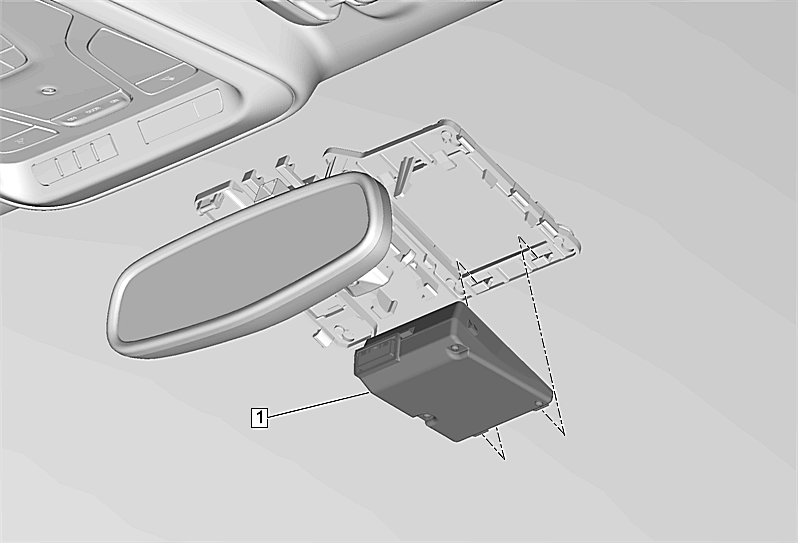

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Inside Rearview Mirror Wiring Harness Lower Cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement
1	Front View Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward. Disconnect the electrical connector. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

Preliminary Procedure
Remove Inside Rearview Mirror Wiring Harness Lower Cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
Refer to Control Module References for programming and set up information, if required.
