Rear Object Sensor Wiring Harness Replacement

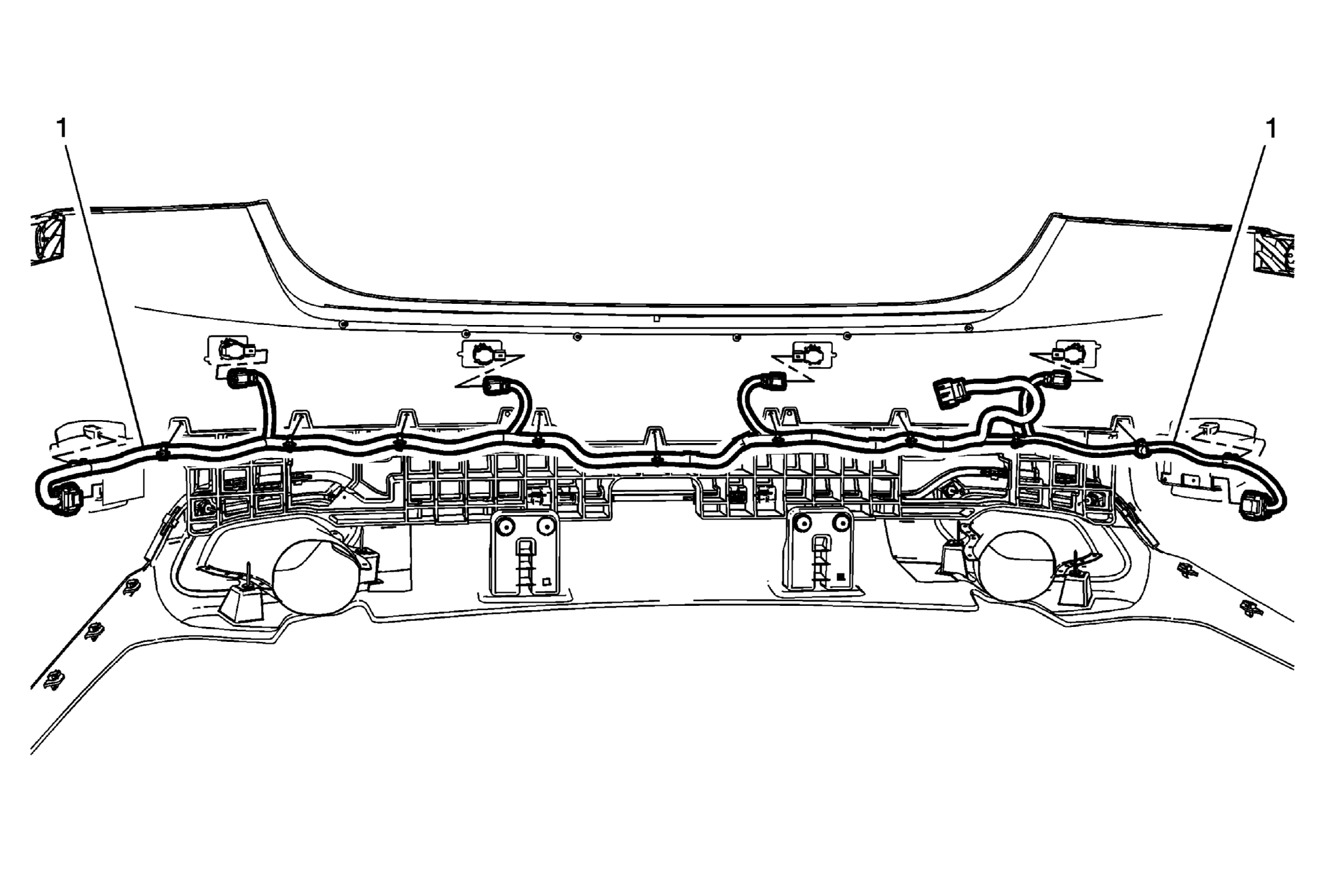

Fig 1: Rear Object Sensor Wiring Harness

GM2901481

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

1

Rear Object Sensor Wiring Harness

Procedure

Disconnect the rear object sensor wiring harness electrical connectors from the rear object sensors.
Disconnect the rear object sensor wiring harness electrical connectors from the rear module.
Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.
