Left Side of Engine Compartment Components

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
3: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
4: K17 Electronic Brake Control Module K17 Electronic Brake Control Module
5: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 (NJ2)X50D Fuse Block - Battery X4 (KL9)X50D Fuse Block - Battery X4 (NJ1)X50D Fuse Block - Battery X4 (NJ2)X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X6 X50D Fuse Block - Battery X7 X50D Fuse Block - Battery X7
6: P13 Horn Assembly P13 Horn Assembly
7: B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
8: G24 Windshield Washer Pump G24 Windshield Washer Pump
9: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5 X50A Fuse Block - Underhood X6
10: C1 Battery C1 Battery (+)C1 Battery (-) (Battery Negative)C1 Battery (-) (Body Harness)
11: K20 Engine Control Module K20 Engine Control Module X1 (LCV)K20 Engine Control Module X1 (LFR)K20 Engine Control Module X1 (LFX)K20 Engine Control Module X2 (LCV)K20 Engine Control Module X2 (LFR)K20 Engine Control Module X2 (LFX)K20 Engine Control Module X3 (LCV)K20 Engine Control Module X3 (LFX)
12: Q5 Brake Pressure Modulator

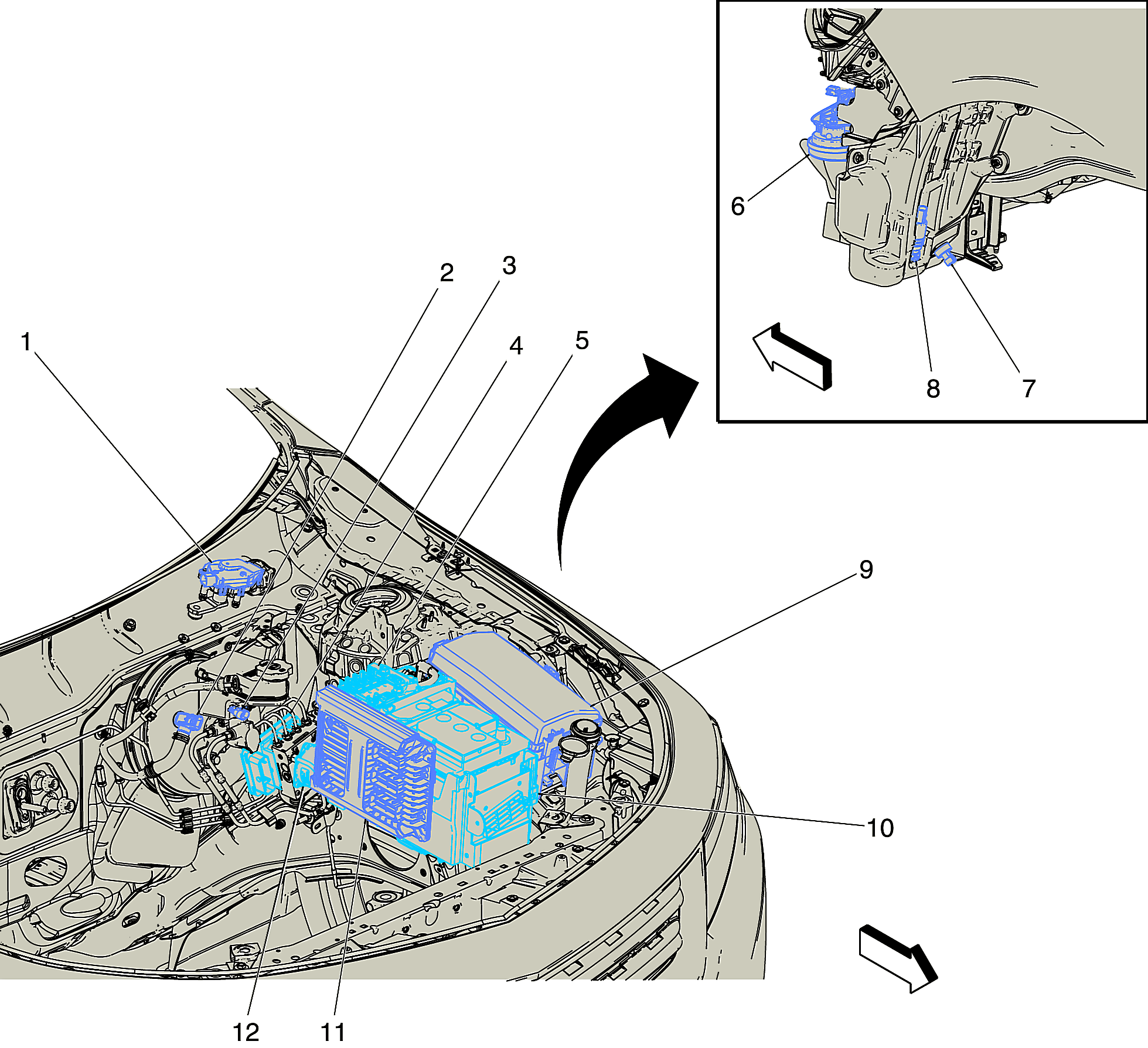

Fig 1: Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY
