Automatic Transmission Components (MHG)

Automatic Transmission Components (MHG)

Items
1: B15 Transmission Internal Mode Switch
2: B14C Transmission Input Shaft Speed Sensor
3: Q8 Control Solenoid Valve Assembly (M7W) Q8 Control Solenoid Valve Assembly X1 (LCV)Q8 Control Solenoid Valve Assembly X1 (LFR/LFX)
4: B14A Transmission Output Shaft Speed Sensor

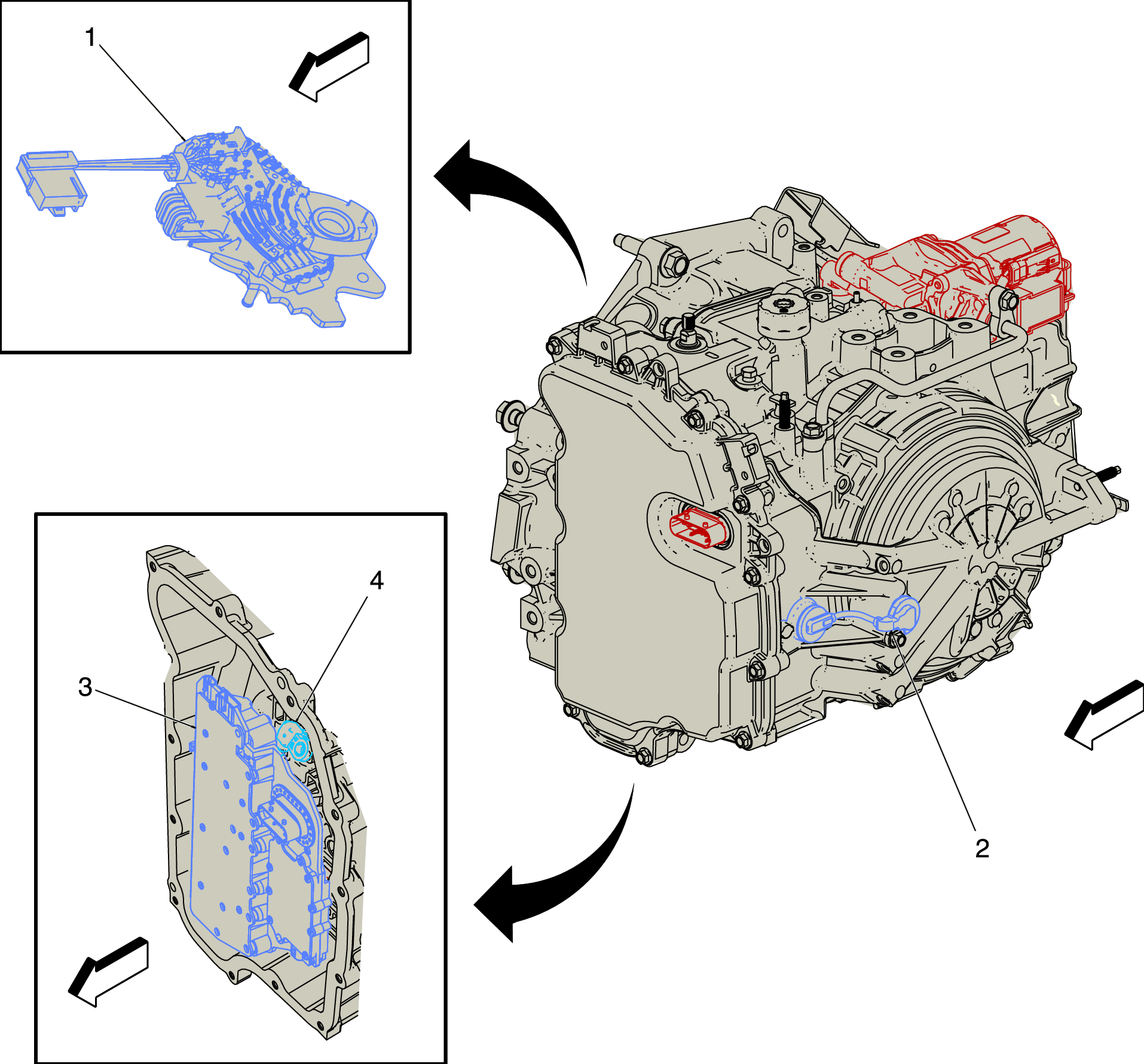

Fig 1: Automatic Transmission Components (MHG)
GM4231387Courtesy of GENERAL MOTORS COMPANY
