Left Front of Engine Components (LCV)

Left Front of Engine Components (LCV)

Items
Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV) Q6F Camshaft Position Actuator Solenoid Valve - Intake
1: T8A Ignition Coil 1 T8A Ignition Coil 1 (LCV)
2: T8B Ignition Coil 2 T8B Ignition Coil 2 (LCV)
3: T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV)
4: T8D Ignition Coil 4 T8D Ignition Coil 4 (LCV)
5: B23E Camshaft Position Sensor - Exhaust (LCV) B23E Camshaft Position Sensor - Exhaust (LCV)
6: B52B Heated Oxygen Sensor 2 (LCV) B52B Heated Oxygen Sensor 2
7: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
8: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
9: B52A Heated Oxygen Sensor 1 (LCV) B52A Heated Oxygen Sensor 1
10: G13 Generator G13 Generator X1G13 Generator X2

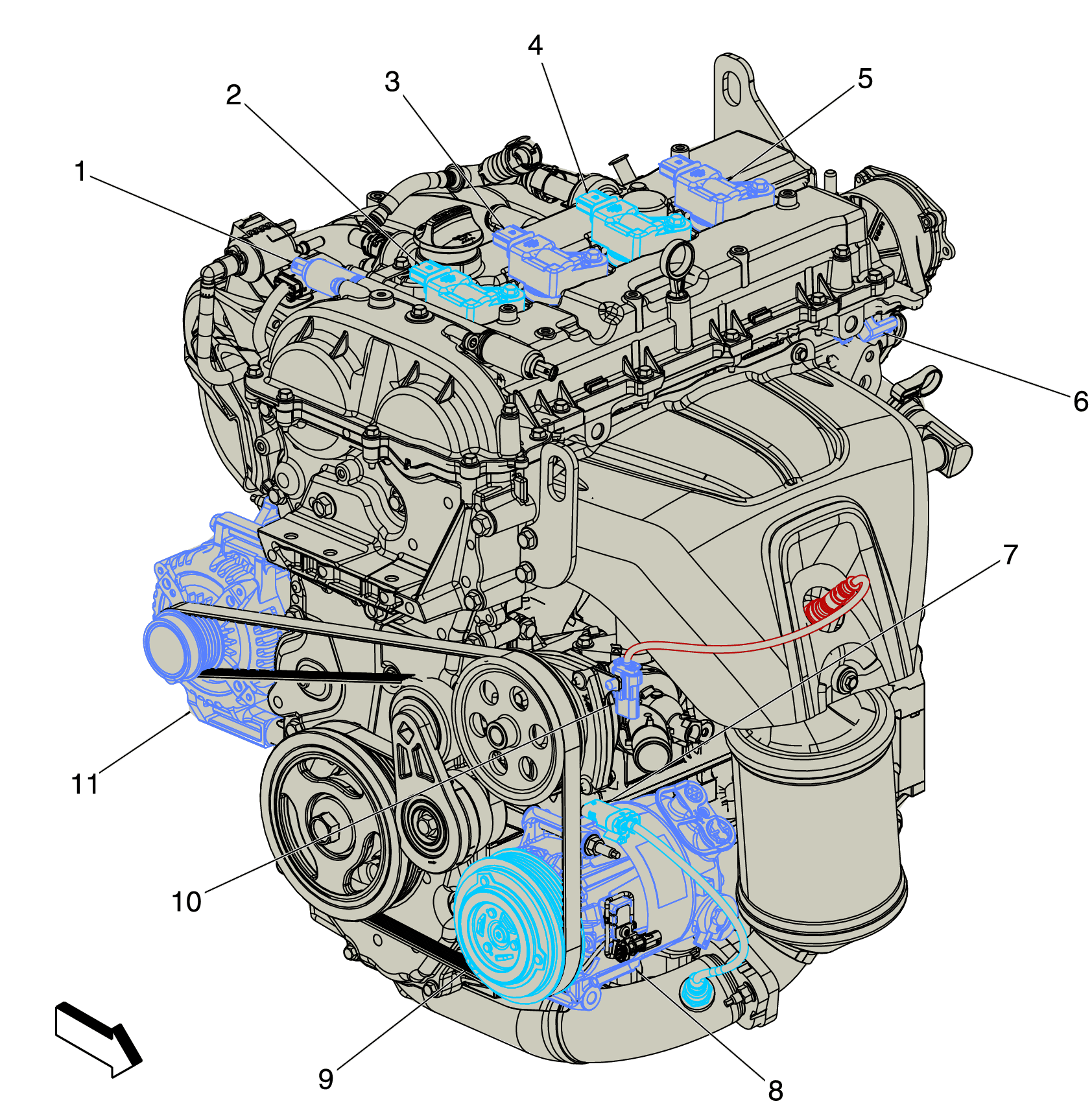

Fig 1: Left Front of Engine Components (LCV)
GM4144156Courtesy of GENERAL MOTORS COMPANY
