Engine Components - Right Front (LFV)

Items
1: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LFV/LTG)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LKN)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG)
2: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LFV)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LKN)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG)
3: Q42 Turbocharger Wastegate Solenoid Valve (LTG/LFV) Q42 Turbocharger Wastegate Solenoid Valve (LTG/LFV)
4: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LFV)B52B Heated Oxygen Sensor 2 (LKN/LTG)
5: Q46 A/C Compressor Solenoid Valve (LTG/LFV) Q46 A/C Compressor Solenoid Valve (LTG/LFV)
6: G1 A/C Compressor (LKN) G1 A/C Compressor X1 (HP4)
7: Q2 A/C Compressor Clutch (LFV/LTG) Q2 A/C Compressor Clutch (LTG/LFV)
8: Q40 Turbocharger Bypass Solenoid Valve (LTG/LFV) Q40 Turbocharger Bypass Solenoid Valve

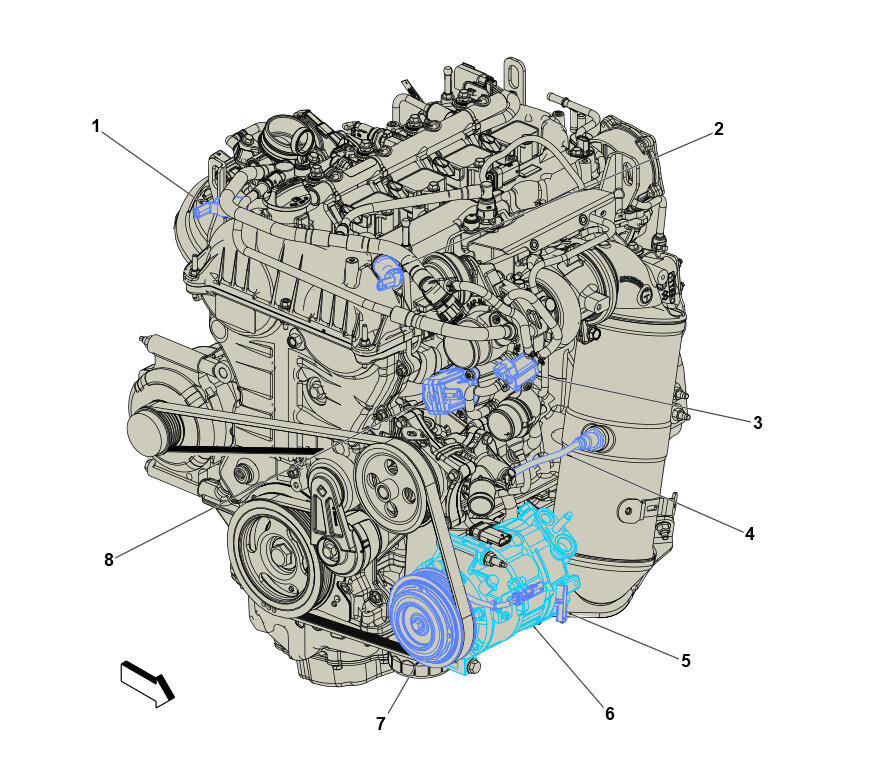

Fig 1: Engine Components - Right Front (LFV)

Courtesy of GENERAL MOTORS COMPANY
