Crankshaft Position Sensor Replacement

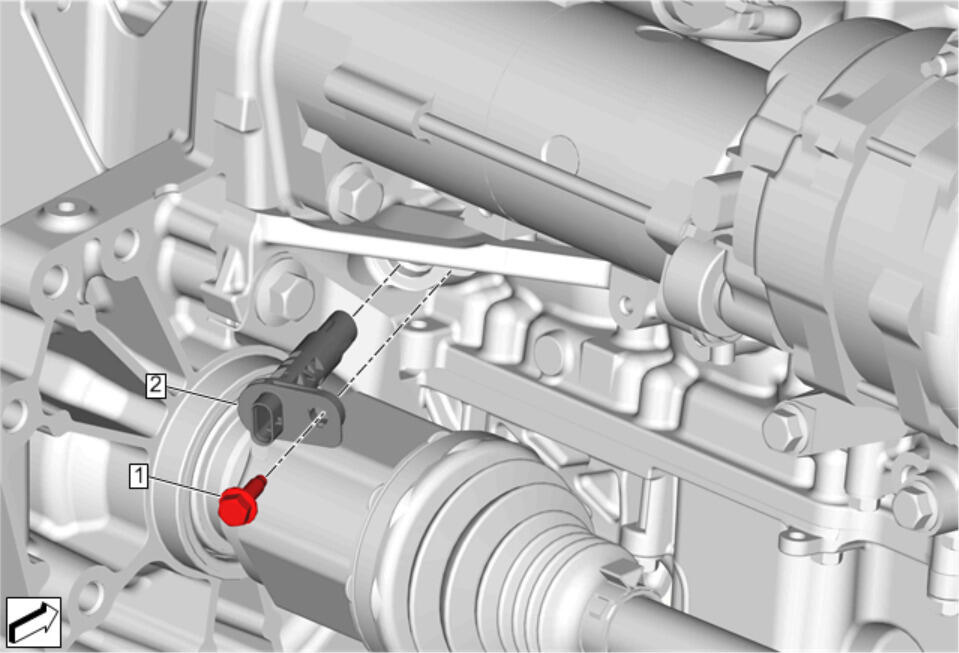

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. Perform the Crankshaft Position Variation Learn. Refer to Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Crankshaft Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
Perform the Crankshaft Position Variation Learn. Refer to Crankshaft Position Variation Learn
