Installation Procedure

  1. Connect the fuel feed front pipe (1) to the fuel pump and the fuel feed pipe. Refer to Metal Collar Quick Connect Fitting Service

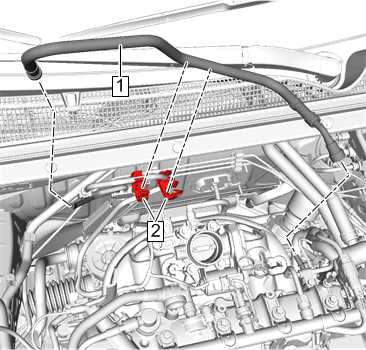

    Fig 1: Fuel Feed Evaporative Emission Separator Pipe Clip
    GM4279673Courtesy of GENERAL MOTORS COMPANY
  2. Secure the fuel feed front pipe (1) in the fuel feed evaporative emission separator pipe clips (2).
  3. Intake Manifold Cover - Install Intake Manifold Cover Replacement
  4. Pressurize the fuel system and inspect for leaks.
