Radiator Support Components

Radiator Support Components

Items
1: P12R Horn - Right P12R Horn - Right
2: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3: P48 Pedestrian Alert Sound Speaker (HP4) P48 Pedestrian Alert Sound Speaker (HP4)
4: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
5: B55 Hood Ajar Switch B55 Hood Ajar Switch
6: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
7: P12L Horn - Left P12L Horn - Left
8: G24 Windshield Washer Pump (HP4) G24 Windshield Washer Pump
9: M60B Active Grille Air Shutter 2 Motor Module (VRI) M60B Active Grille Air Shutter 2 Motor Module (VRI)
10: M60A Active Grille Air Shutter 1 Motor Module (VRI) M60A Active Grille Air Shutter 1 Motor Module (VRI)
11: B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor

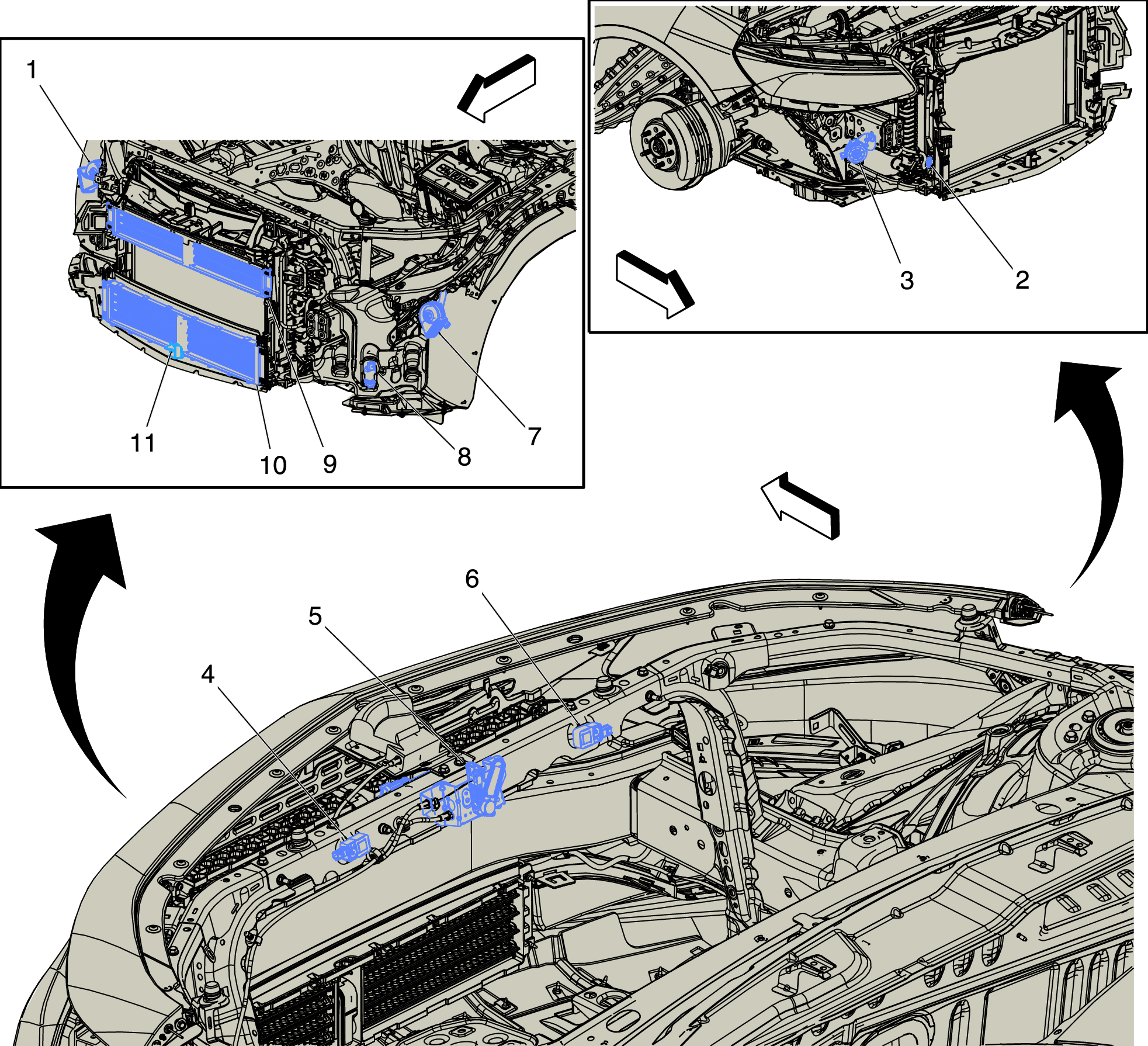

Fig 1: Radiator Support Components
GM4228711Courtesy of GENERAL MOTORS COMPANY
