Communication Interface Module Battery Replacement

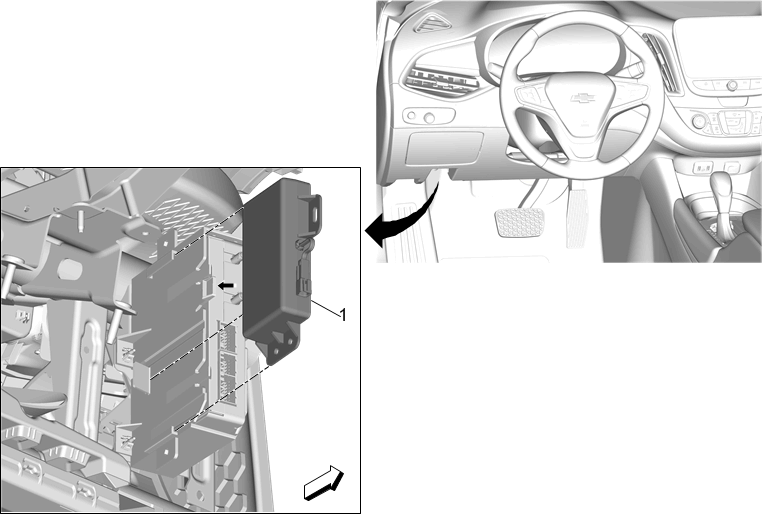

Fig 1: Communication Interface Module Battery
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Communication Interface Module Battery
Procedure
Push the retaining tab outward and slide the module downward.
Disconnect the electrical connector.
Control Module References
for programming and setup information, if required.
