Fuel Tank Protector Replacement

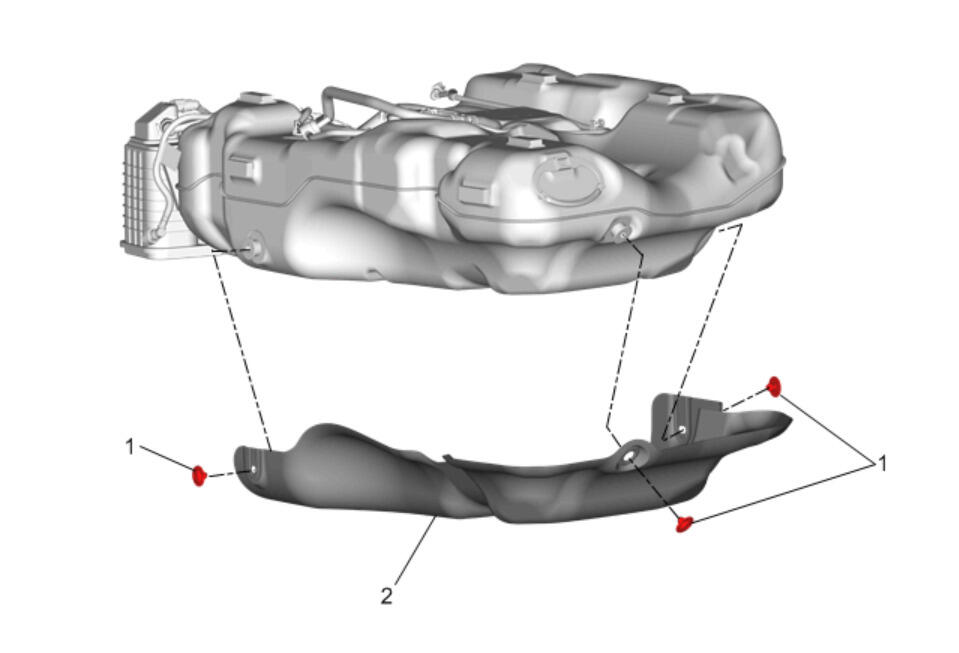

Fig 1: Fuel Tank Protector
GM4230161Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Strap @ Left Side - Remove Fuel Tank Replacement
1 Fuel Tank Protector Retainer [3x]
CAUTION: Refer to Fastener Caution .
2 Fuel Tank Protector
