Audio Disc Player and USB Receptacle Replacement

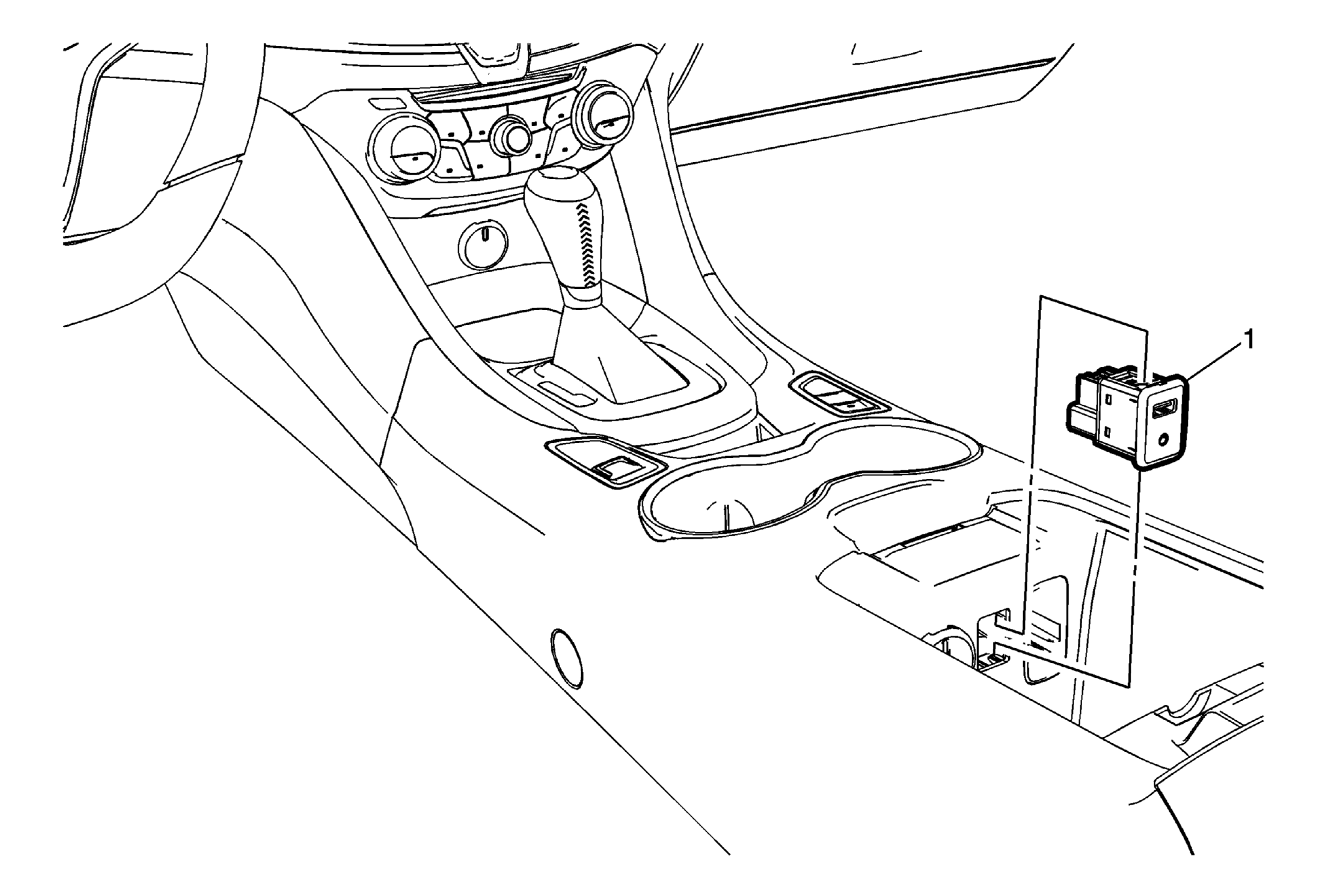

Fig 1: Audio Disc Player and USB Receptacle
GM3559711Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Audio Player and USB Receptacle

Procedure

  1. Using a small flat bladed tool, release the receptacle.
  2. Disconnect the electrical connector.
