Radio Controls

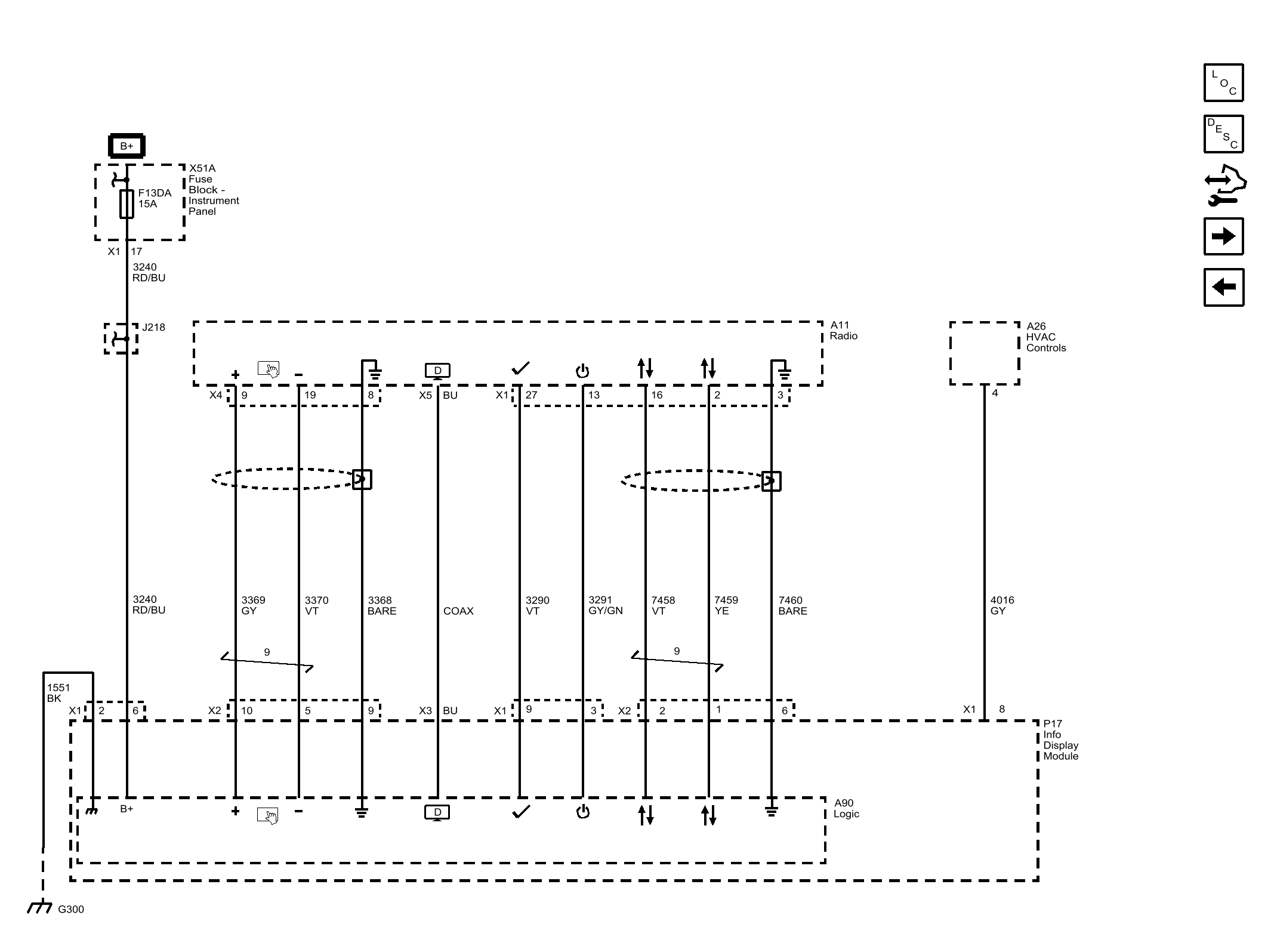

Fig 1: Radio Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
