Installation Procedure

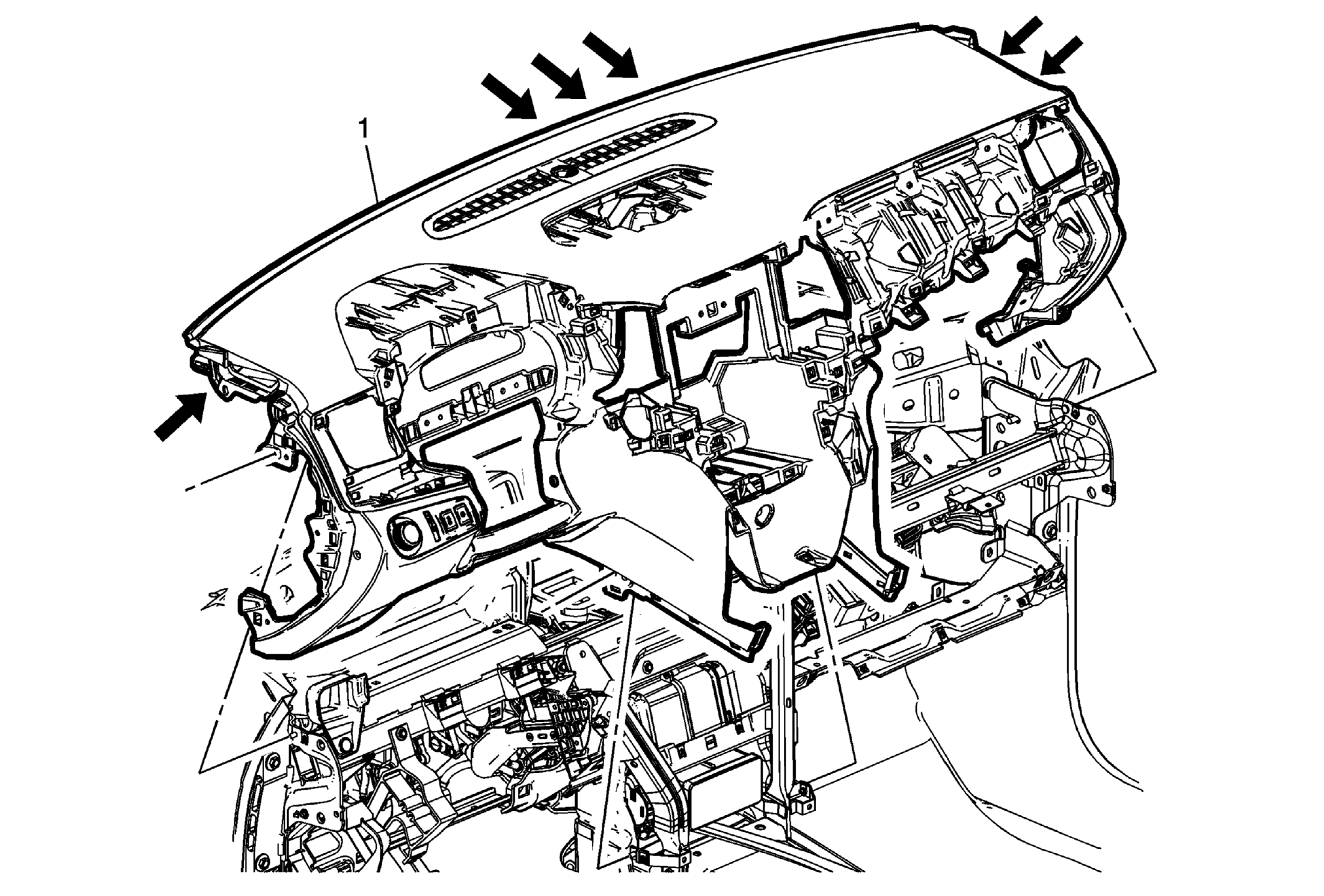

    Fig 1: Instrument Panel Assembly
    GM3512773Courtesy of GENERAL MOTORS COMPANY
  1. When replacing the instrument panel assembly apply tape to the steering column adjustment lever and the surrounding areas to prevent marring.
  2. With the aid of an assistant, position the instrument panel assembly (1) over the steering column, over the gear shifter and into the vehicle.
  3. Ensure the sun load sensor wiring and centre speaker wiring (if equipped) is pulled through the access hole.
  4. Reposition and secure the instrument panel wiring harness into vehicle position at the indicated points.
  5. Ensure the accessory power receptacle/cigar lighter wiring is reconnected.
  6. Ensure all instrument panel dowels (side and centre) are relocated and locked in.
  7. Fig 2: Sun Load Temperature & Headlamp Automatic Control Ambient Light Sensor Bezel

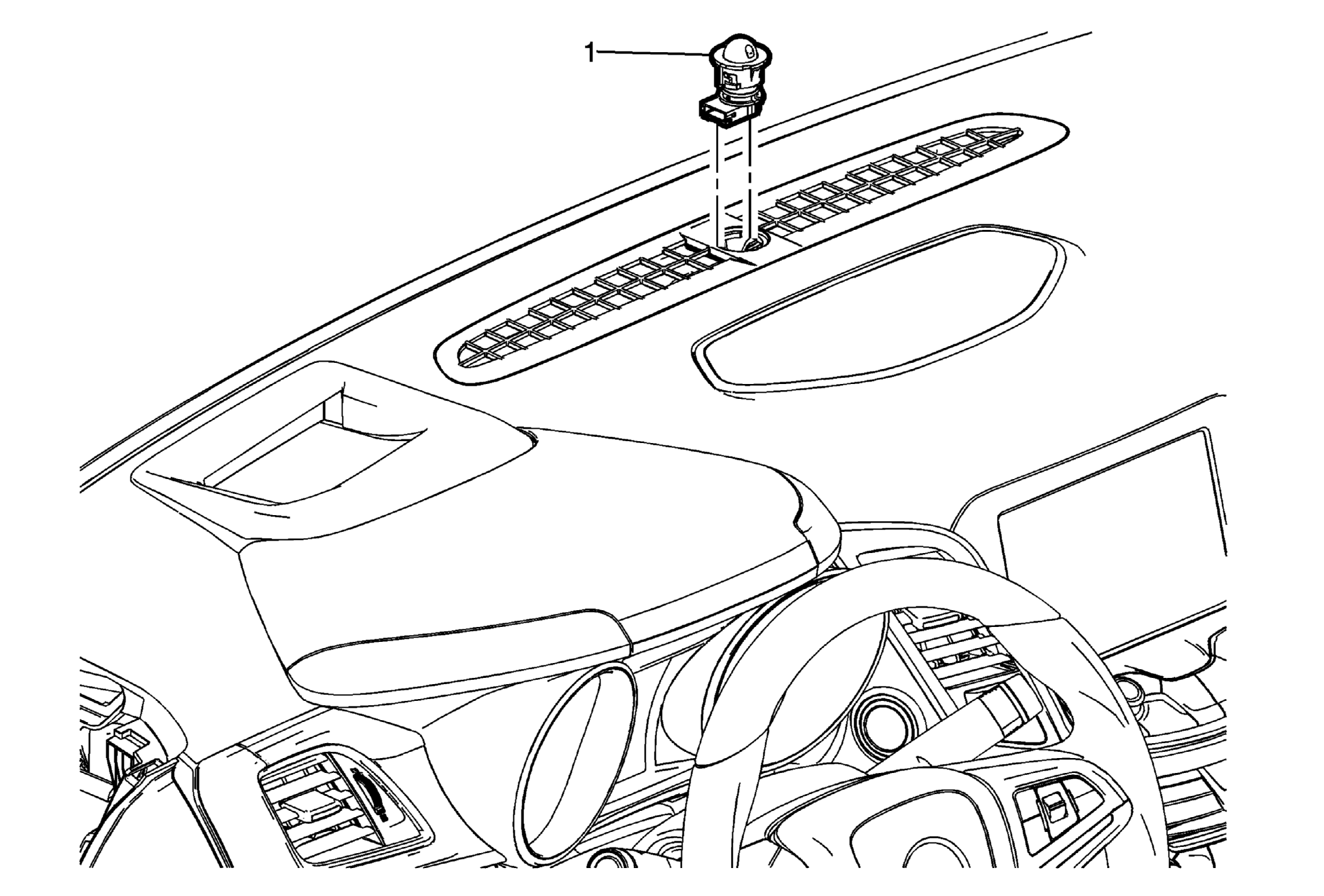

    GM3402872Courtesy of GENERAL MOTORS COMPANY
  8. Install Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Bezel (1) - Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Bezel Replacement

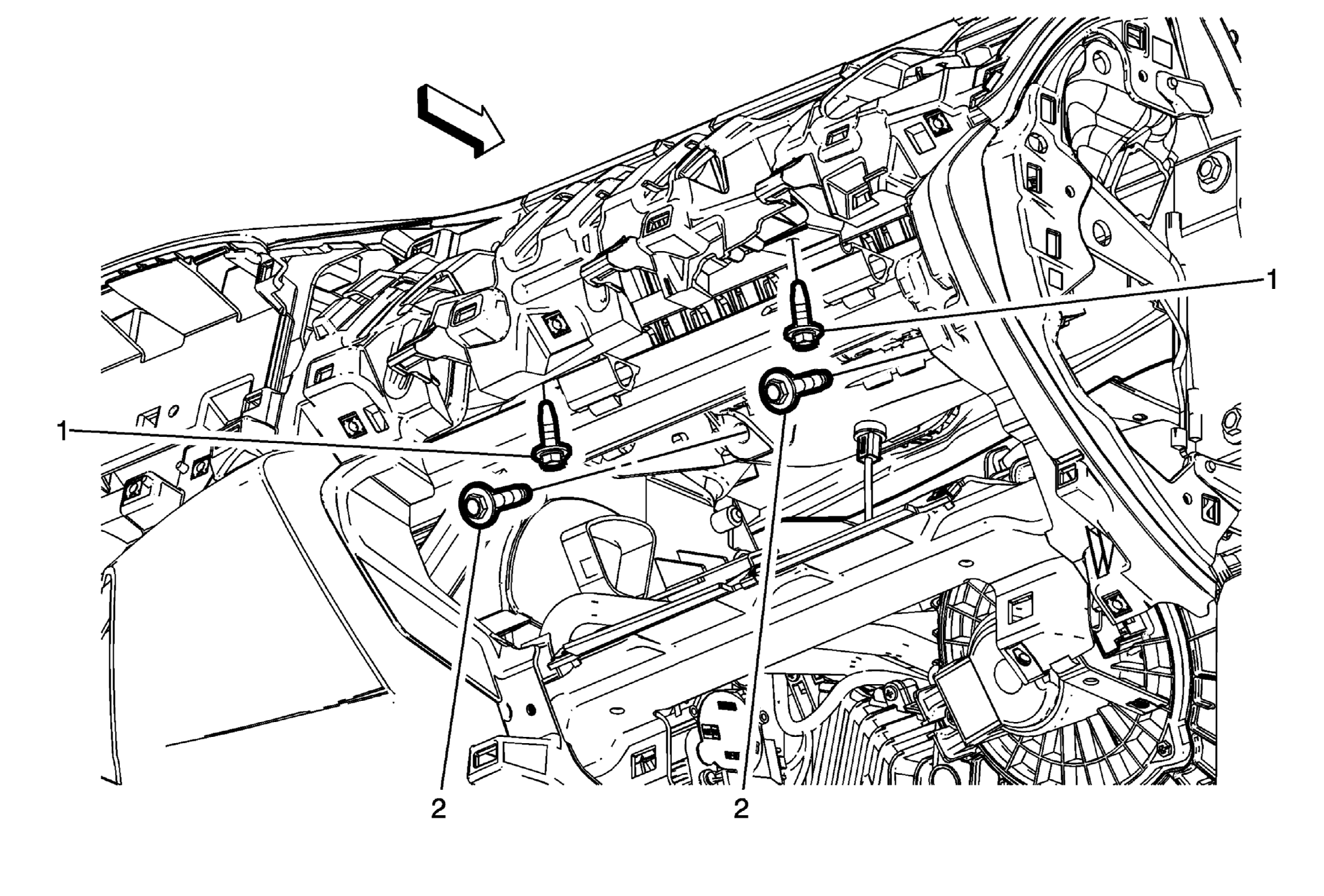

  9. Fig 3: Instrument Panel Assembly & Airbag Inflatable Fasteners
    GM3512772Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  10. Install Instrument Panel Bolt (1) (Qty: 2) and tighten to 2.5 N.m (22 lb in)
  11. Install Instrument Panel Airbag Inflatable Bolt (2) (Qty: 2) and tighten to 9 N.m (80 lb in)
  12. Connect the upper right duct air temperature sensor connector.
  13. Install the electrical connector to the instrument panel inflatable restraint module airbag inflatable.

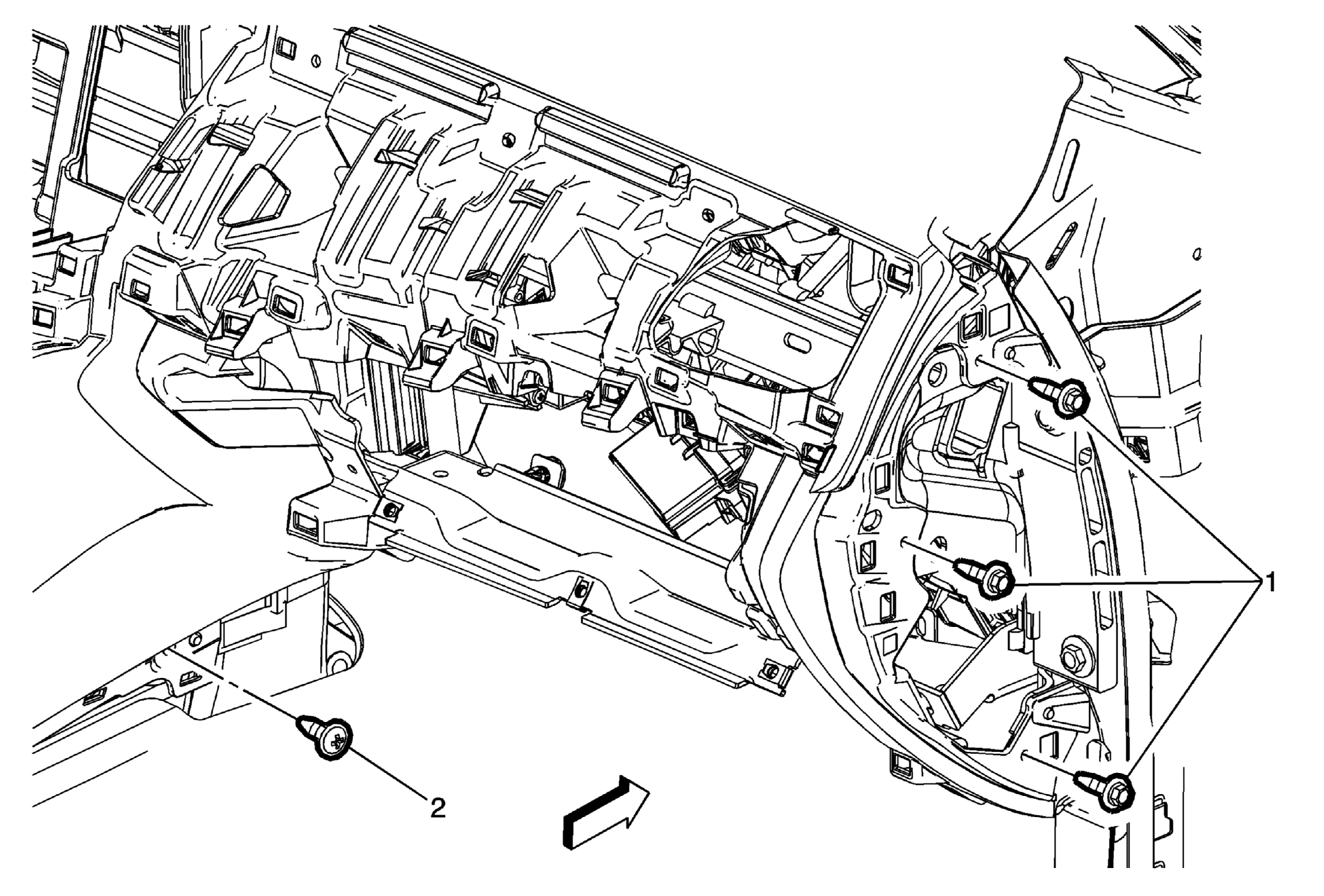

  14. Fig 4: Instrument Panel Assembly Fasteners
    GM3512771Courtesy of GENERAL MOTORS COMPANY
  15. Install Instrument Panel Bolt (1) (Qty: 3) and tighten to 2.5 N.m (22 lb in)

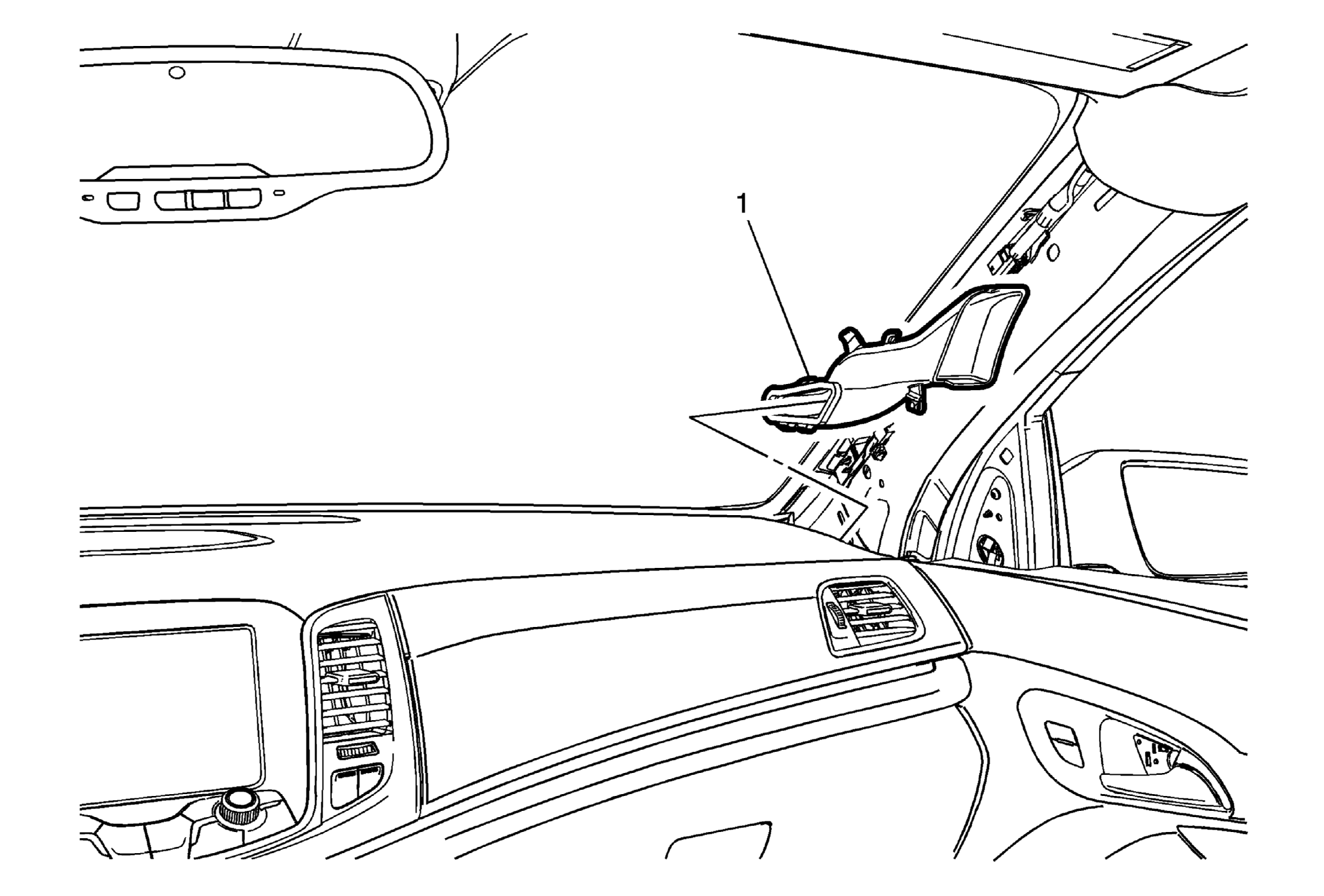

  16. Fig 5: Side Window Defogger Outlet Outer Duct - Right Side
    GM3541175Courtesy of GENERAL MOTORS COMPANY
  17. Install Side Window Defogger Outlet Outer Duct - Right Side (1) - Side Window Defogger Outlet Outer Duct Replacement - Right Side
  18. Fig 6: Selector Lever Housing
    GM1954236Courtesy of GENERAL MOTORS COMPANY
  19. Install the selector lever housing (2) from the base (1) ensuring the four retaining tabs are engaged (3).
  20. Connect the electrical connectors.
  21. Fig 7: Shift Knob Trim Plate & Boot Assembly

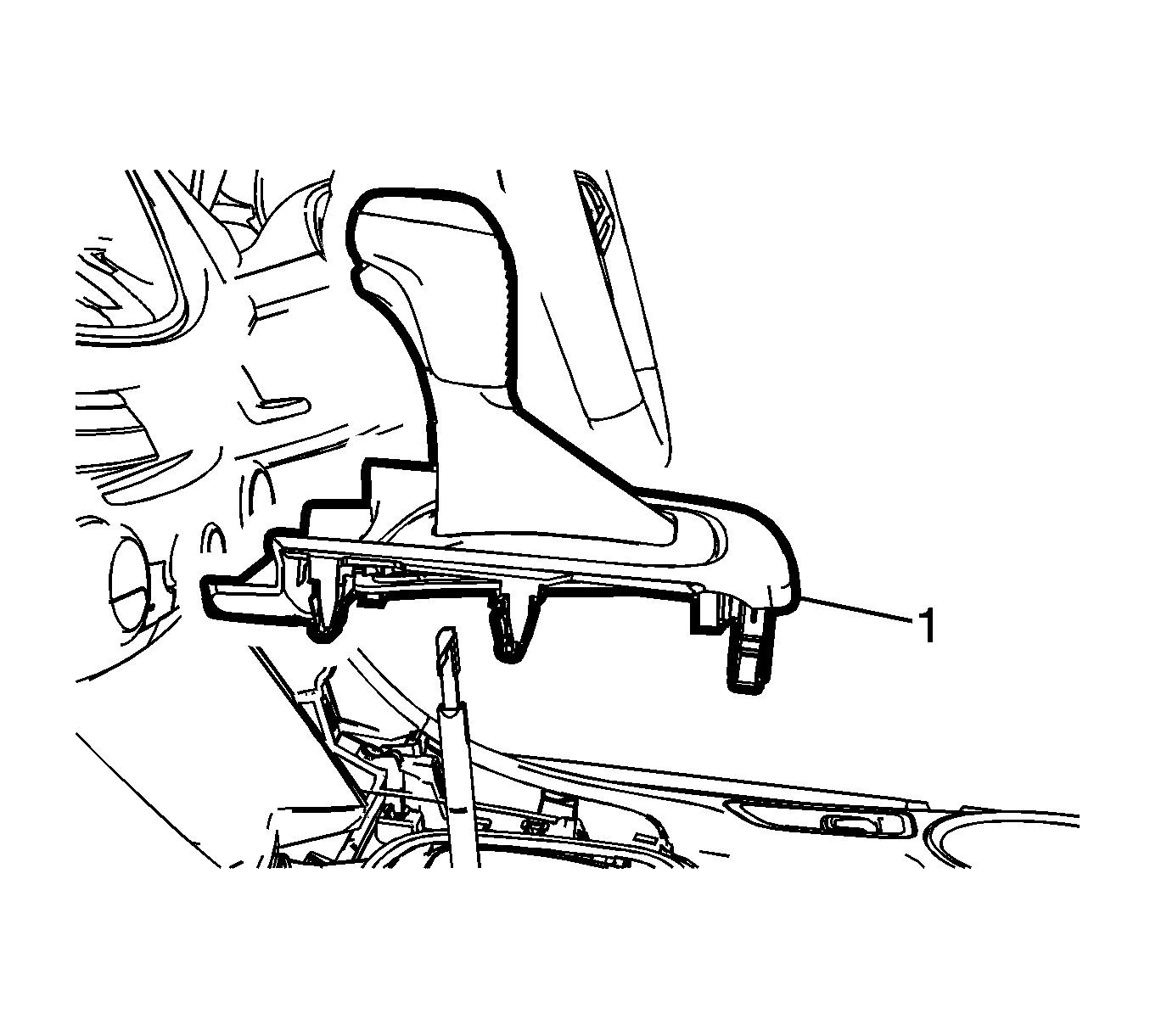

    GM2964476Courtesy of GENERAL MOTORS COMPANY
  22. Install Transmission Control Lever Knob (1) - Transmission Control Lever Knob Replacement
  23. Fig 8: Instrument Panel Assembly Fasteners

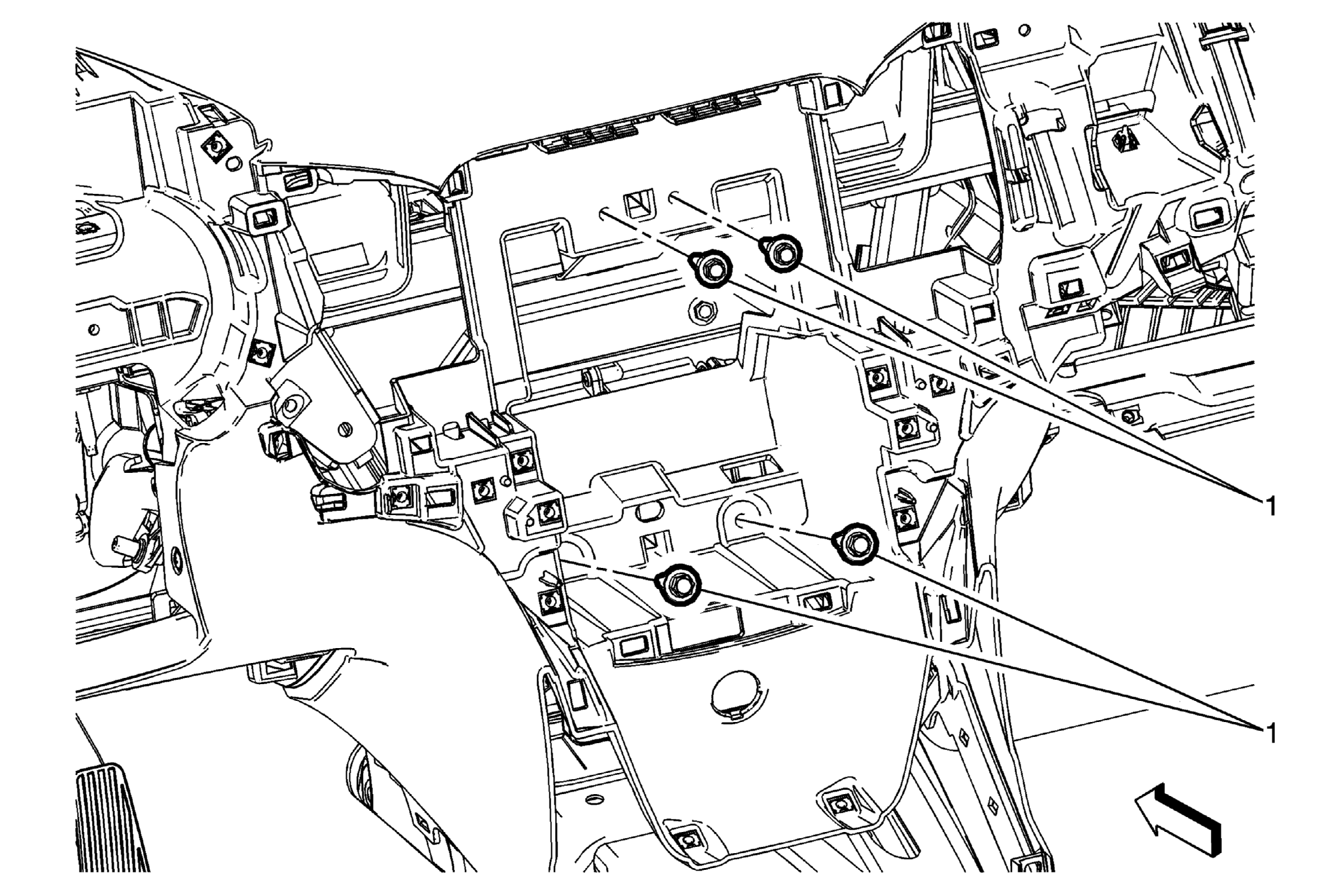

    GM3512770Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    These screws are longer than all other instrument panel assembly fasteners.

  24. Install Instrument Panel Bolt (1) (Qty: 4) and tighten to 2.5 N.m (22 lb in)
  25. Fig 9: Front Floor Console Rear Air Duct Retainer
    GM4539192Courtesy of GENERAL MOTORS COMPANY
  26. Install Front Floor Console Rear Air Duct Retainer (1) (Qty: 2)

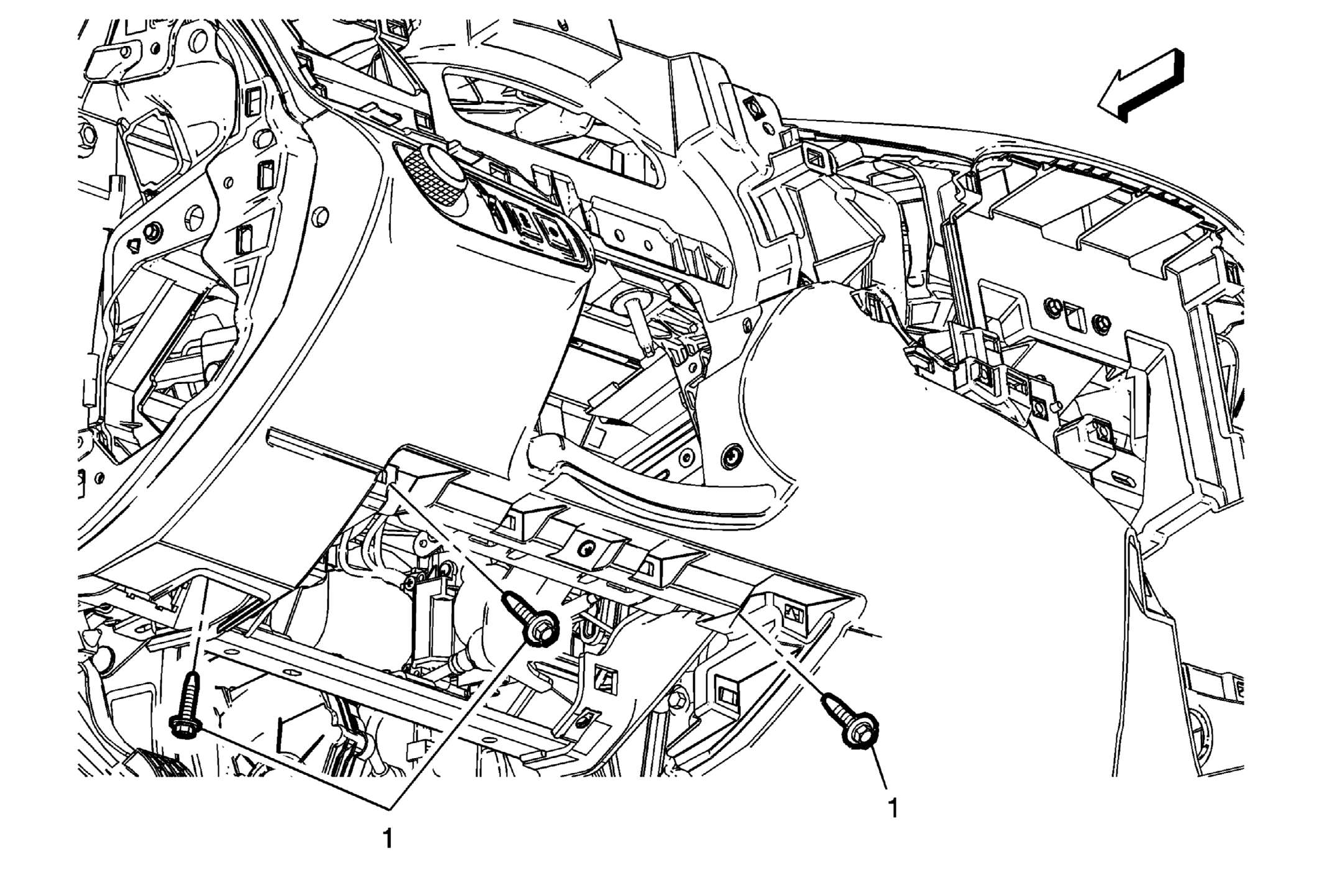

  27. Fig 10: Instrument Panel Assembly Fasteners
    GM3512768Courtesy of GENERAL MOTORS COMPANY
  28. Install Instrument Panel Bolt (1) (Qty: 3) and tighten to 2.5 N.m (22 lb in)
  29. Connect the data link connector.

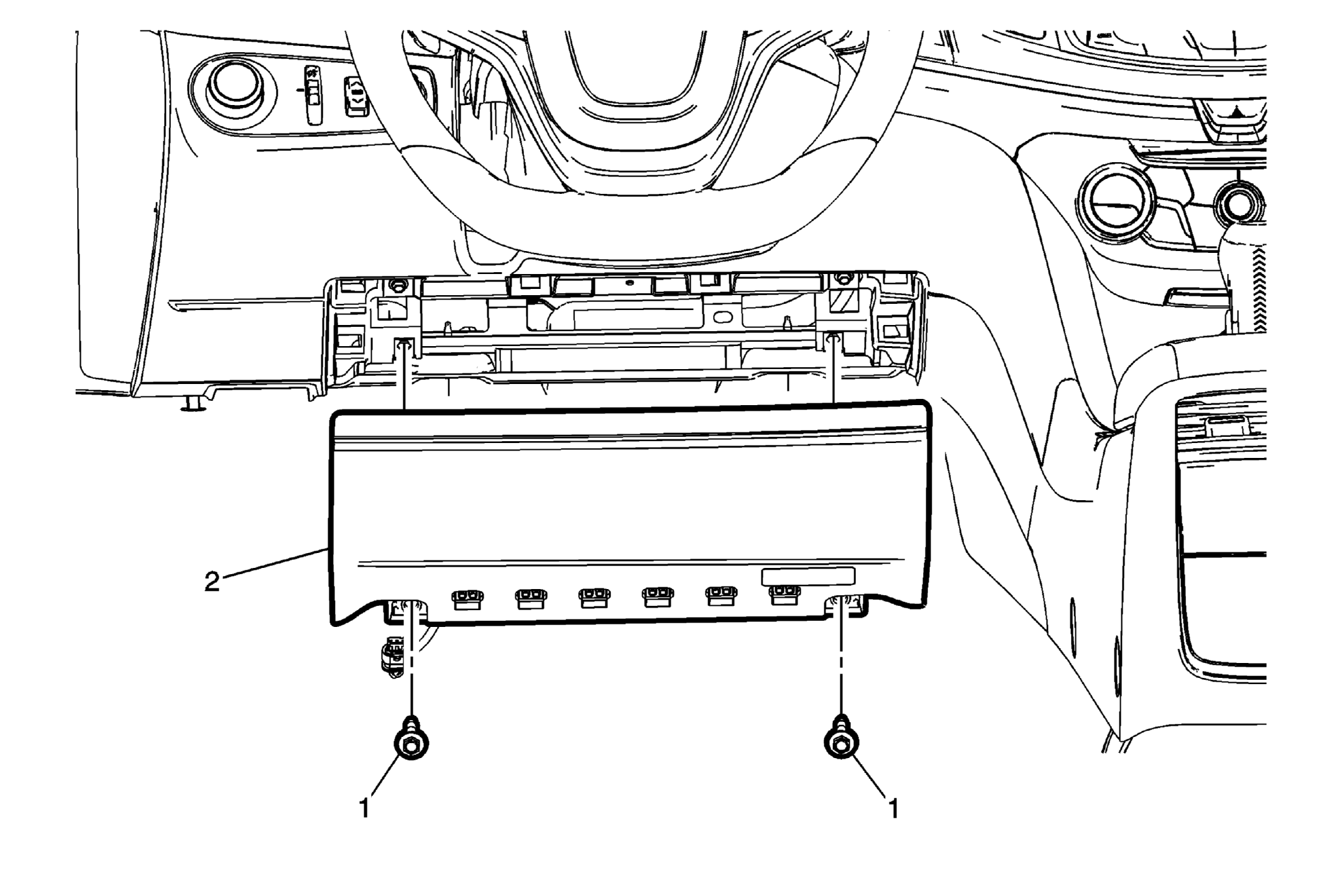

  30. Fig 11: Instrument Panel Lower Airbag - Driver Side
    GM3582144Courtesy of GENERAL MOTORS COMPANY
  31. Install Instrument Panel Lower Airbag - Driver Side (2) - Instrument Panel Lower Airbag Replacement - Driver Side

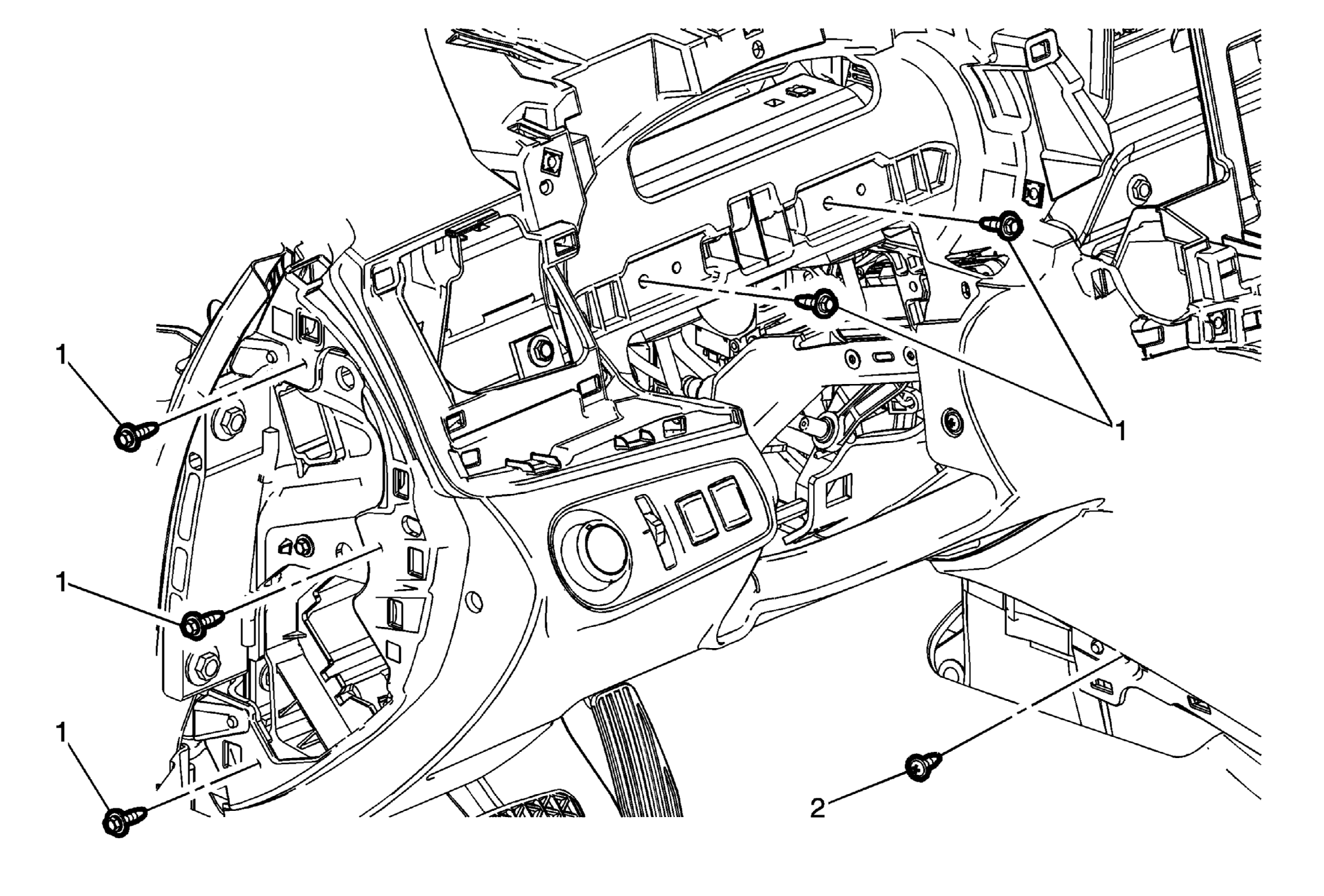

  32. Fig 12: Instrument Panel Assembly Fasteners
    GM3512767Courtesy of GENERAL MOTORS COMPANY
  33. Install Instrument Panel Bolt (1) (Qty: 5) and tighten to 2.5 N.m (22 lb in)

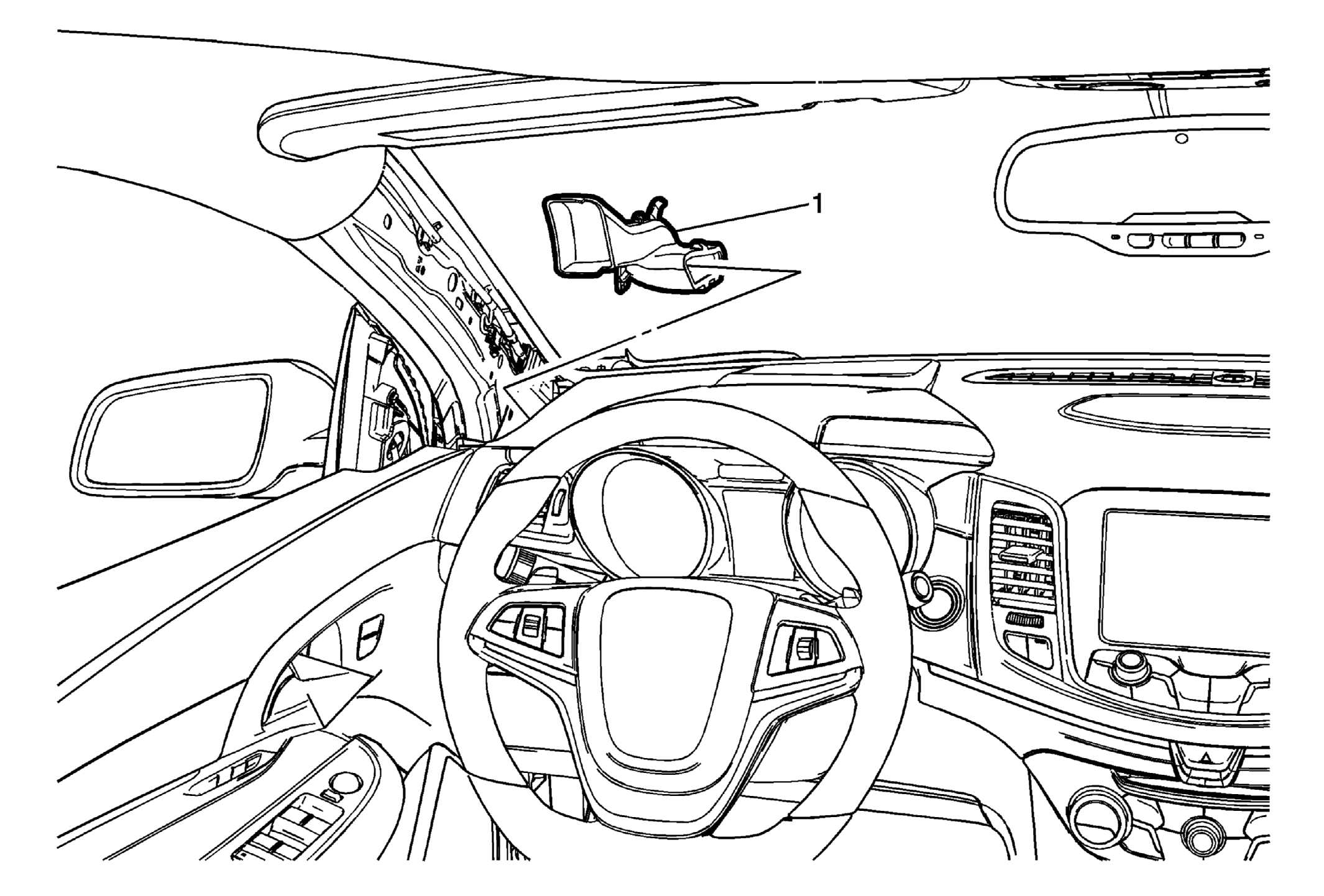

  34. Fig 13: Side Window Defogger Outlet Outer Duct - Left Side
    GM3541177Courtesy of GENERAL MOTORS COMPANY
  35. Install Side Window Defogger Outlet Outer Duct - Left Side (1) - Side Window Defogger Outlet Outer Duct Replacement - Left Side

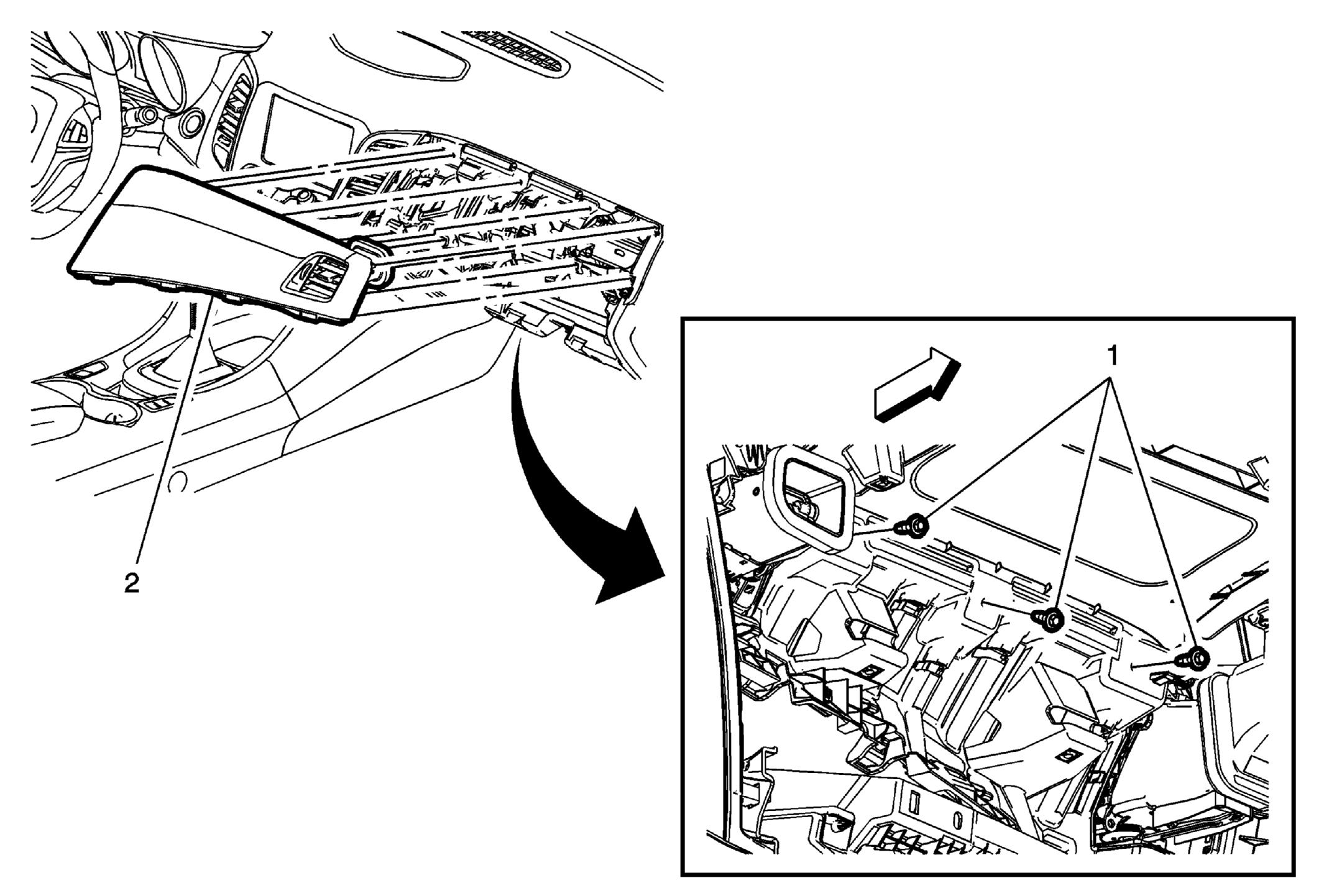

  36. Fig 14: Side Instrument Panel Upper Trim Panel & Mounting Bolts
    GM3402825Courtesy of GENERAL MOTORS COMPANY
  37. Install Instrument Panel Upper Trim Panel - Right Side (2) - Instrument Panel Upper Trim Panel Replacement - Right Side
  38. Fig 15: Right Front Floor Air Outlet Duct & Mounting Components

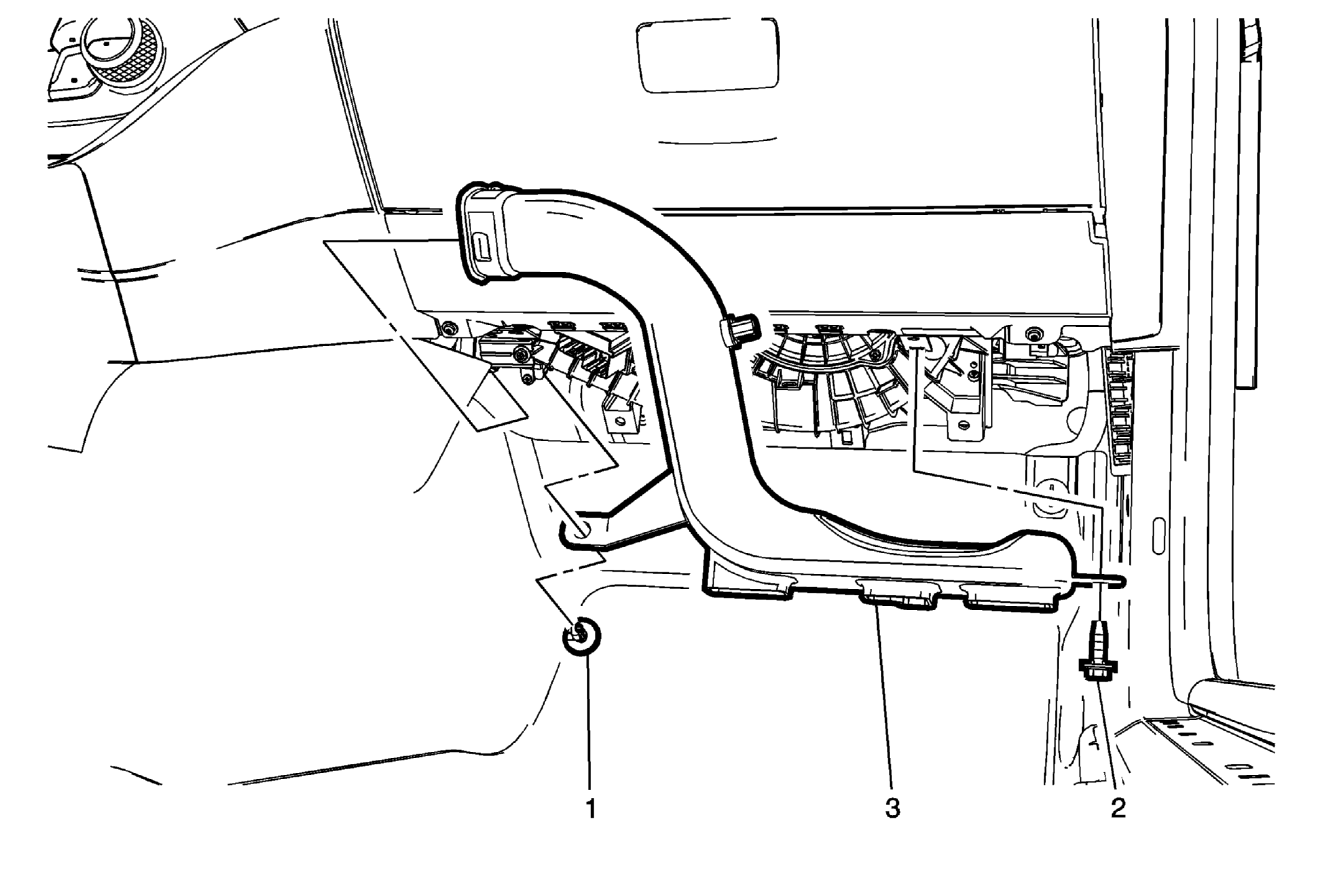

    GM3417760Courtesy of GENERAL MOTORS COMPANY
  39. Install Floor Front Air Outlet Duct - Right Side (3) - Floor Front Air Outlet Duct Replacement - Right Side

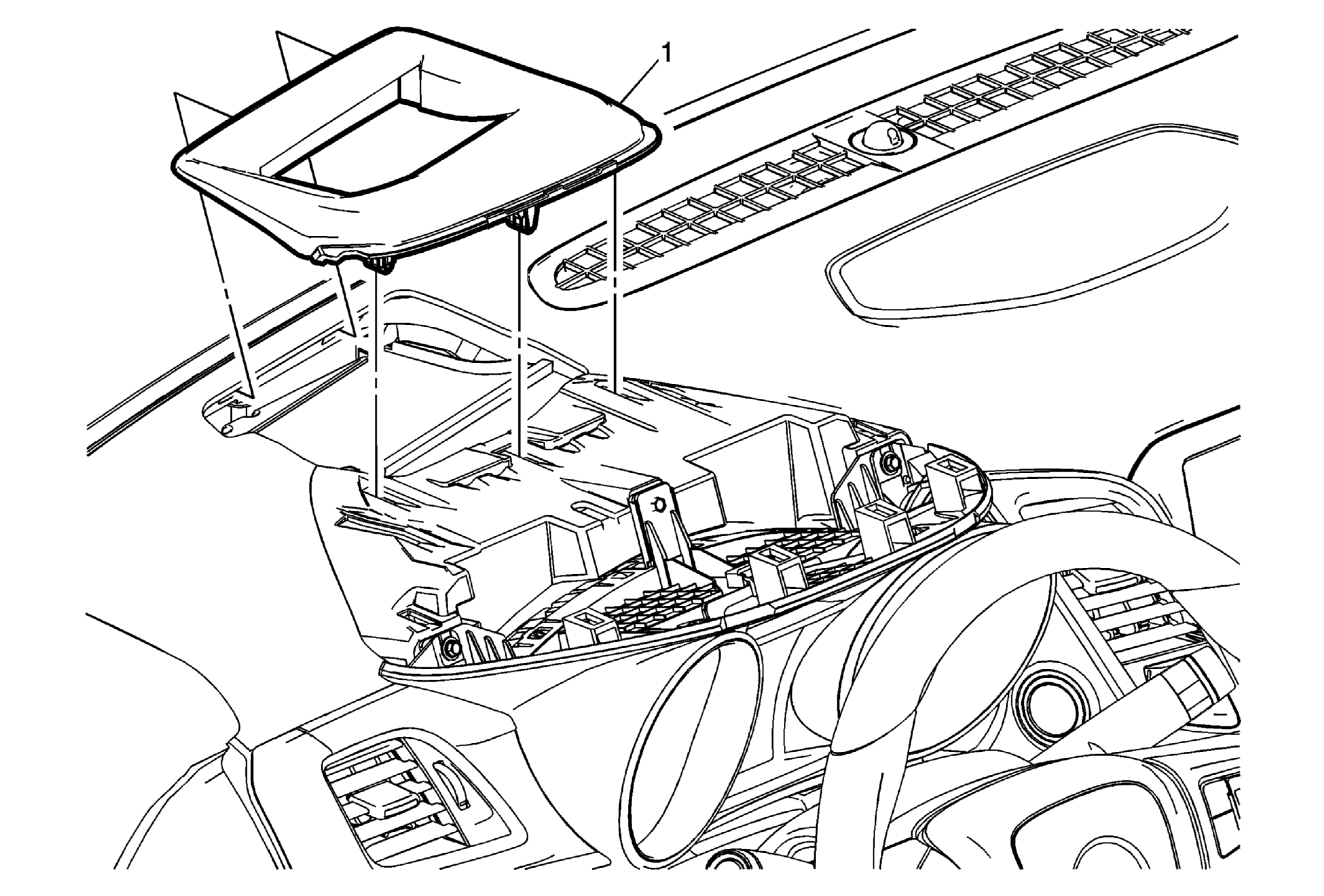

  40. Fig 16: Head-Up Display Bezel
    GM3530736Courtesy of GENERAL MOTORS COMPANY
  41. Install Head-Up Display Bezel (1) - Head-Up Display Bezel Replacement
  42. Fig 17: Instrument Cluster Assembly
    GM3402863Courtesy of GENERAL MOTORS COMPANY
  43. Install Instrument Cluster (2) - Instrument Cluster Replacement
  44. Take caution to ensure the fabric closeout base plate pegs are engaged correctly.
  45. Fig 18: Radio Front Center Speaker & Fasteners
    GM3559713Courtesy of GENERAL MOTORS COMPANY
  46. Install Radio Front Center Speaker (2) - Radio Front Center Speaker Replacement
  47. Fig 19: Radio & Fasteners
    GM3559709Courtesy of GENERAL MOTORS COMPANY
  48. Install Radio (2) - Radio Replacement

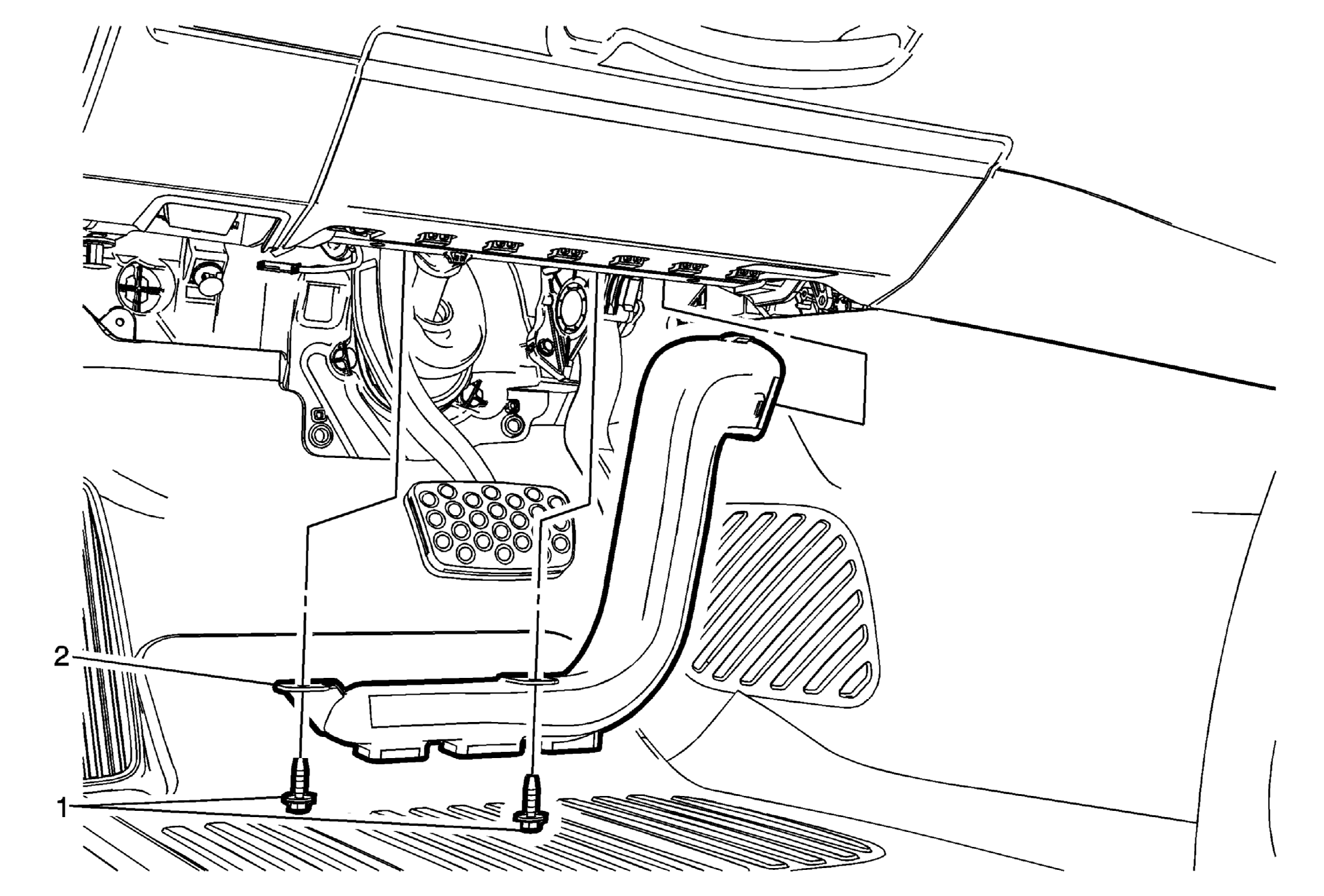

  49. Fig 20: Floor Front Air Outlet Duct - Left Side
    GM3417424Courtesy of GENERAL MOTORS COMPANY
  50. Install Floor Front Air Outlet Duct - Left Side (2) - Floor Front Air Outlet Duct Replacement - Left Side

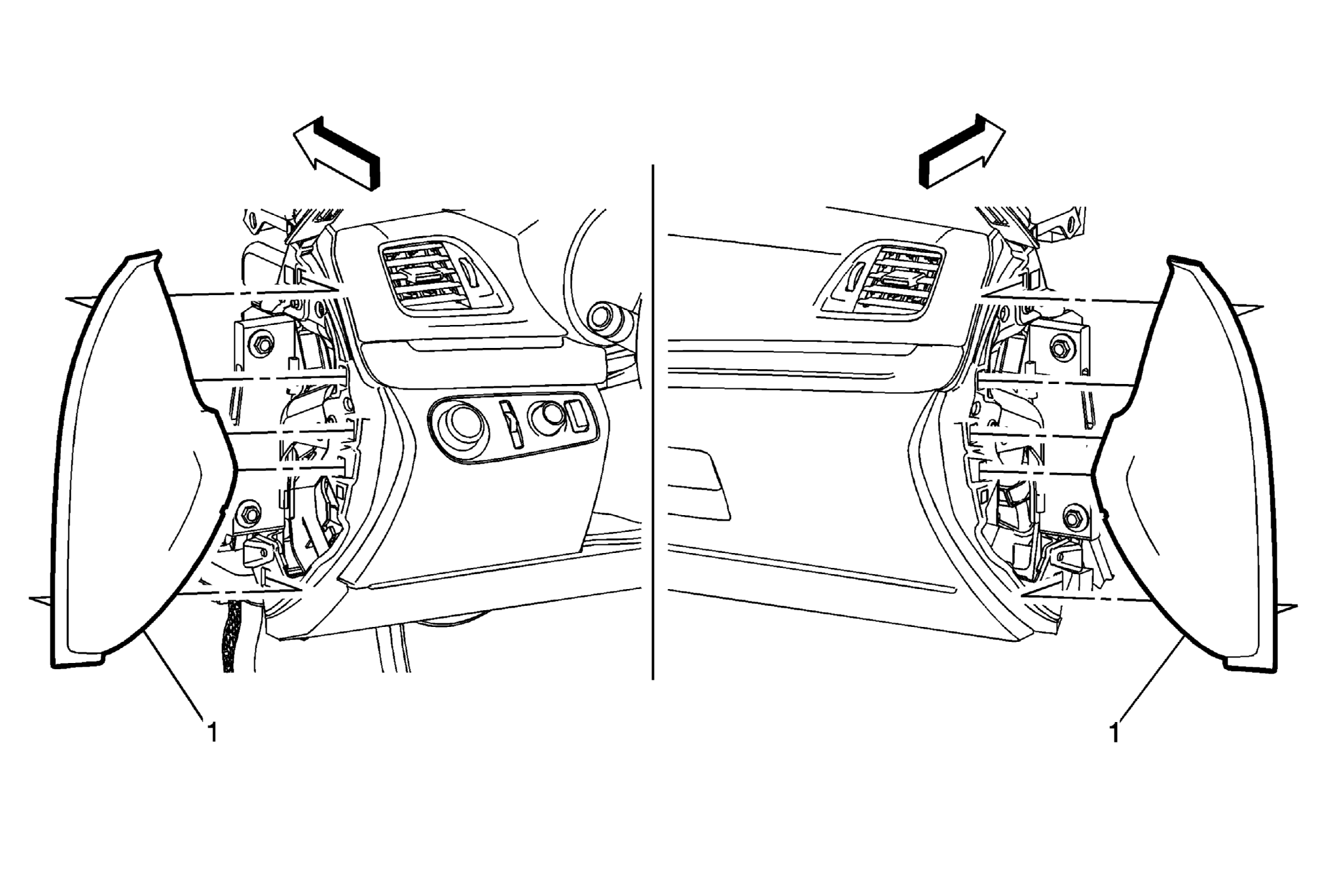

  51. Fig 21: Instrument Panel Outer Trim Covers
    GM3402826Courtesy of GENERAL MOTORS COMPANY
  52. Install Instrument Panel Outer Trim Cover (1) - Instrument Panel Outer Trim Cover Replacement

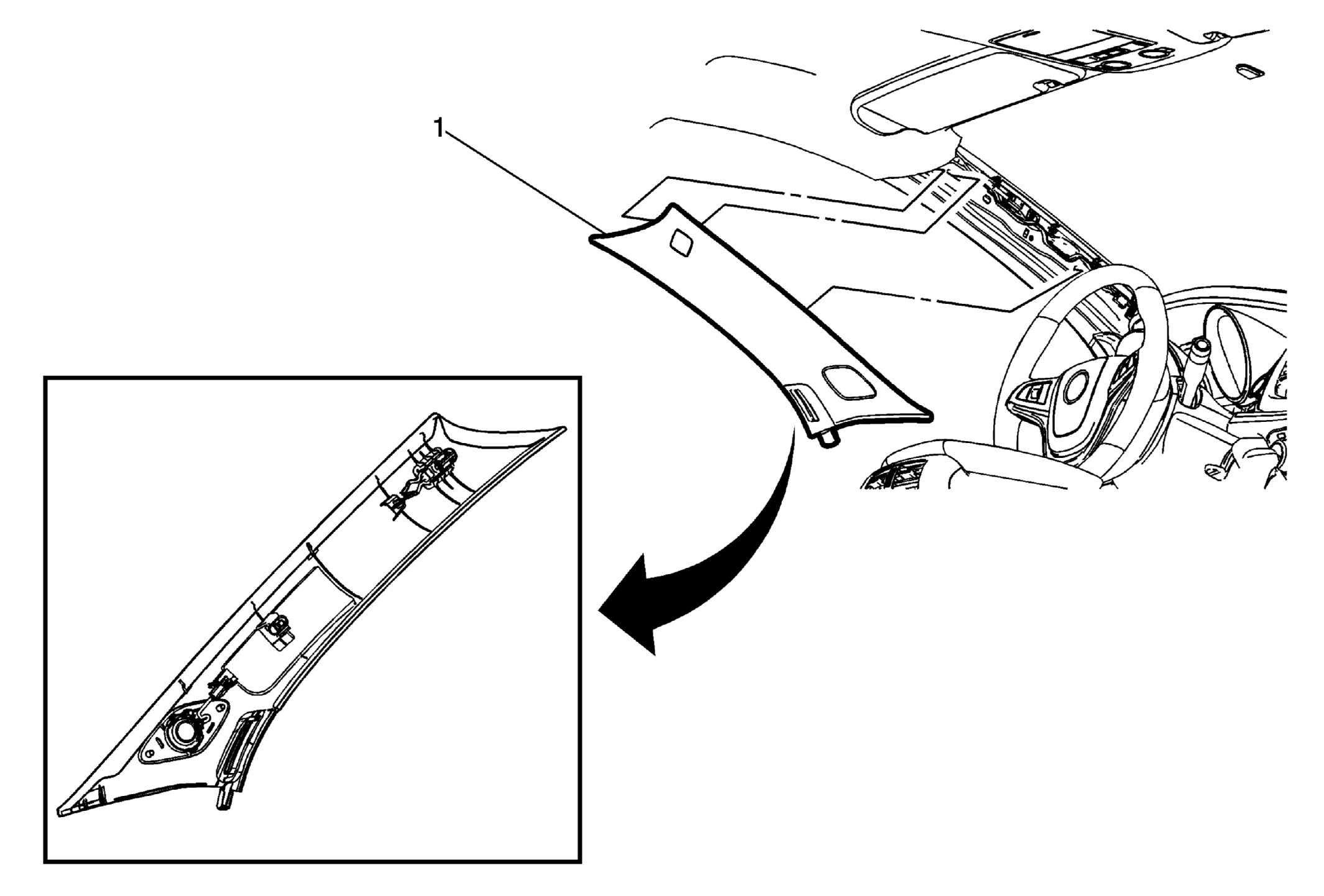

  53. Fig 22: Windshield Garnish Molding Assembly
    GM3586050Courtesy of GENERAL MOTORS COMPANY
  54. Install Windshield Garnish Molding (1) - Windshield Garnish Molding Replacement

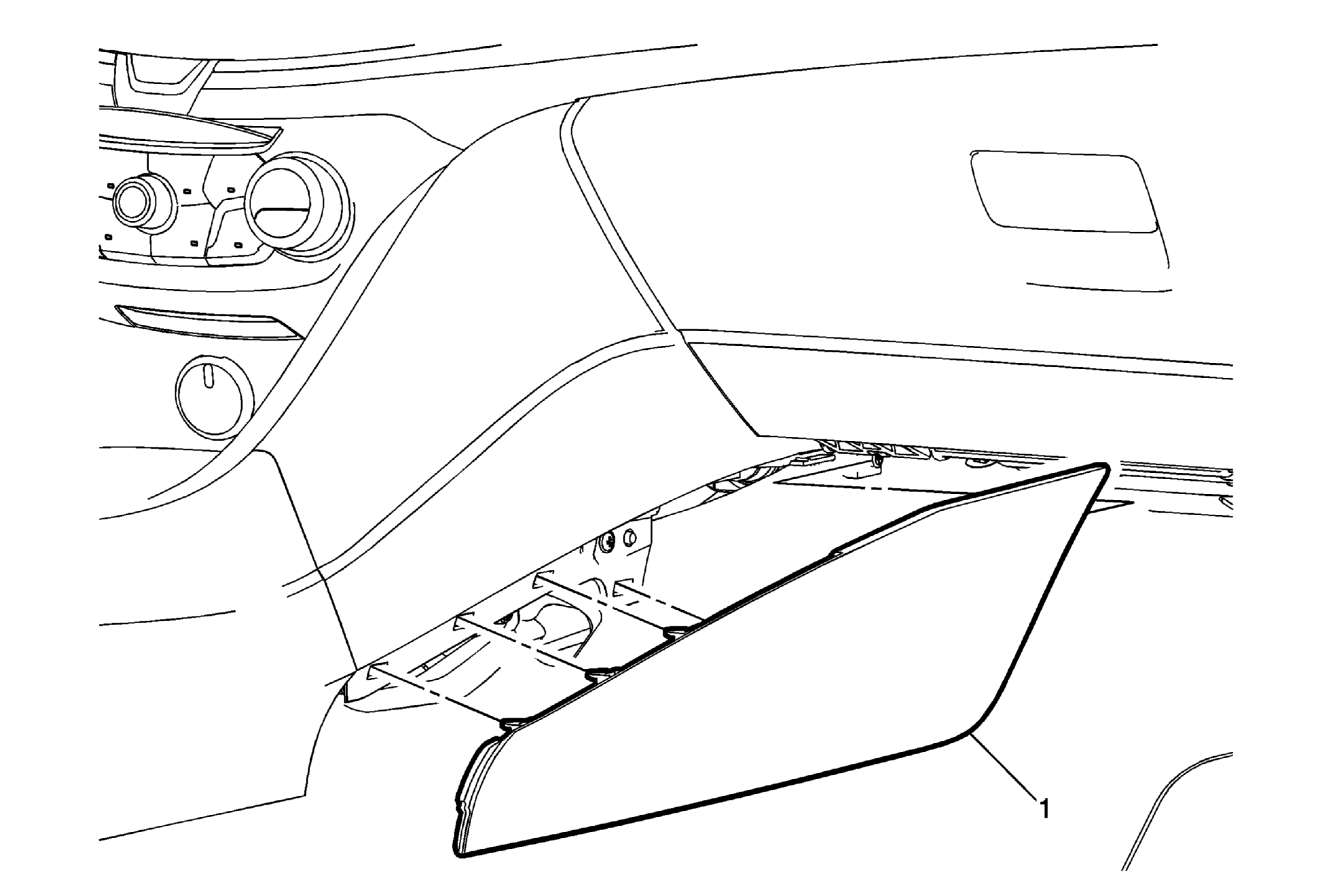

  55. Fig 23: Front Floor Console Extension Panel - Right Side
    GM3533138Courtesy of GENERAL MOTORS COMPANY
  56. Install Front Floor Console Extension Panel - Right (1) - Front Floor Console Extension Panel Replacement - Right Side
  57. Fig 24: Front Floor Console Extension Panel - Left Side

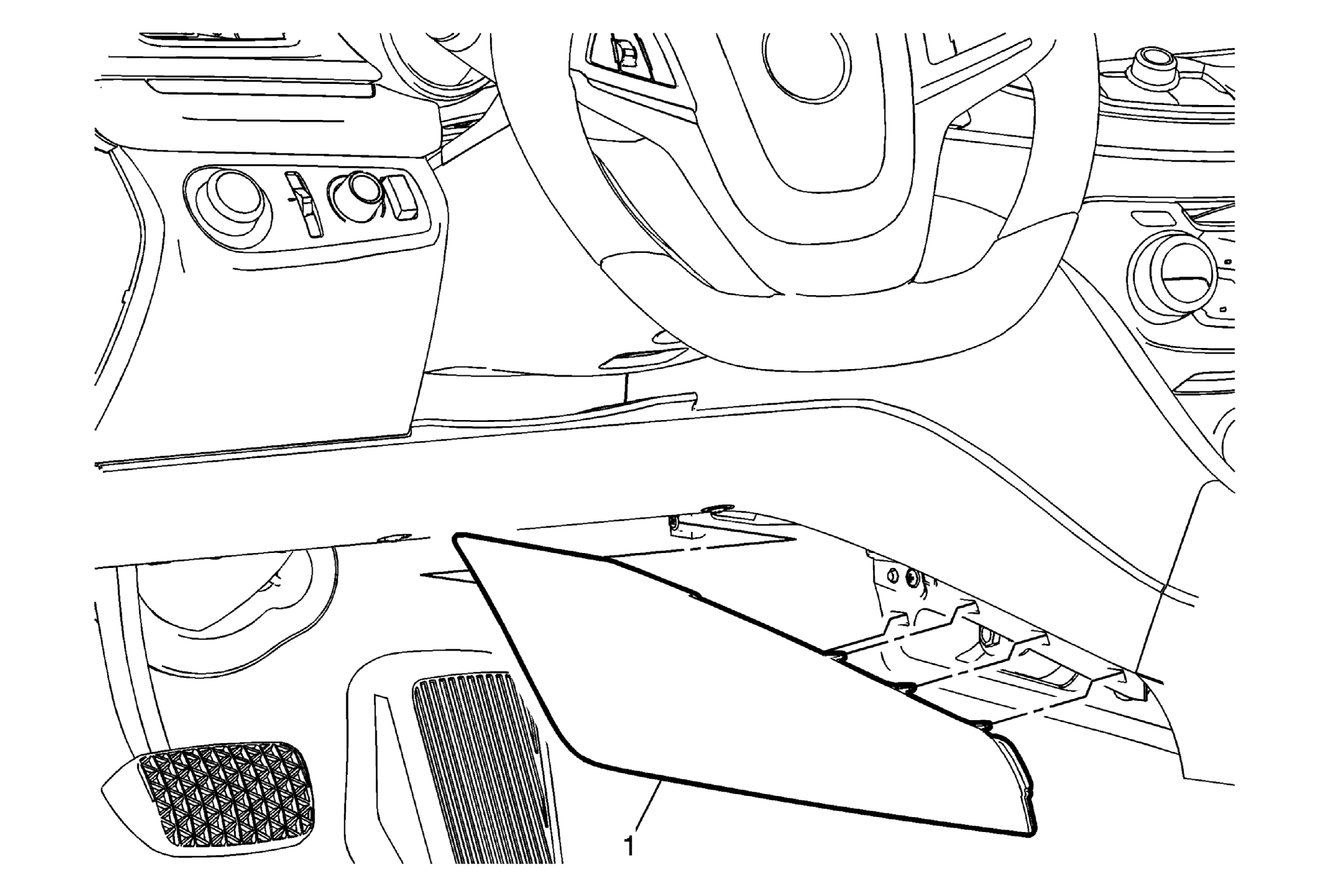

    GM3533140Courtesy of GENERAL MOTORS COMPANY
  58. Install Front Floor Console Extension Panel - Left (1) - Front Floor Console Extension Panel Replacement - Left Side

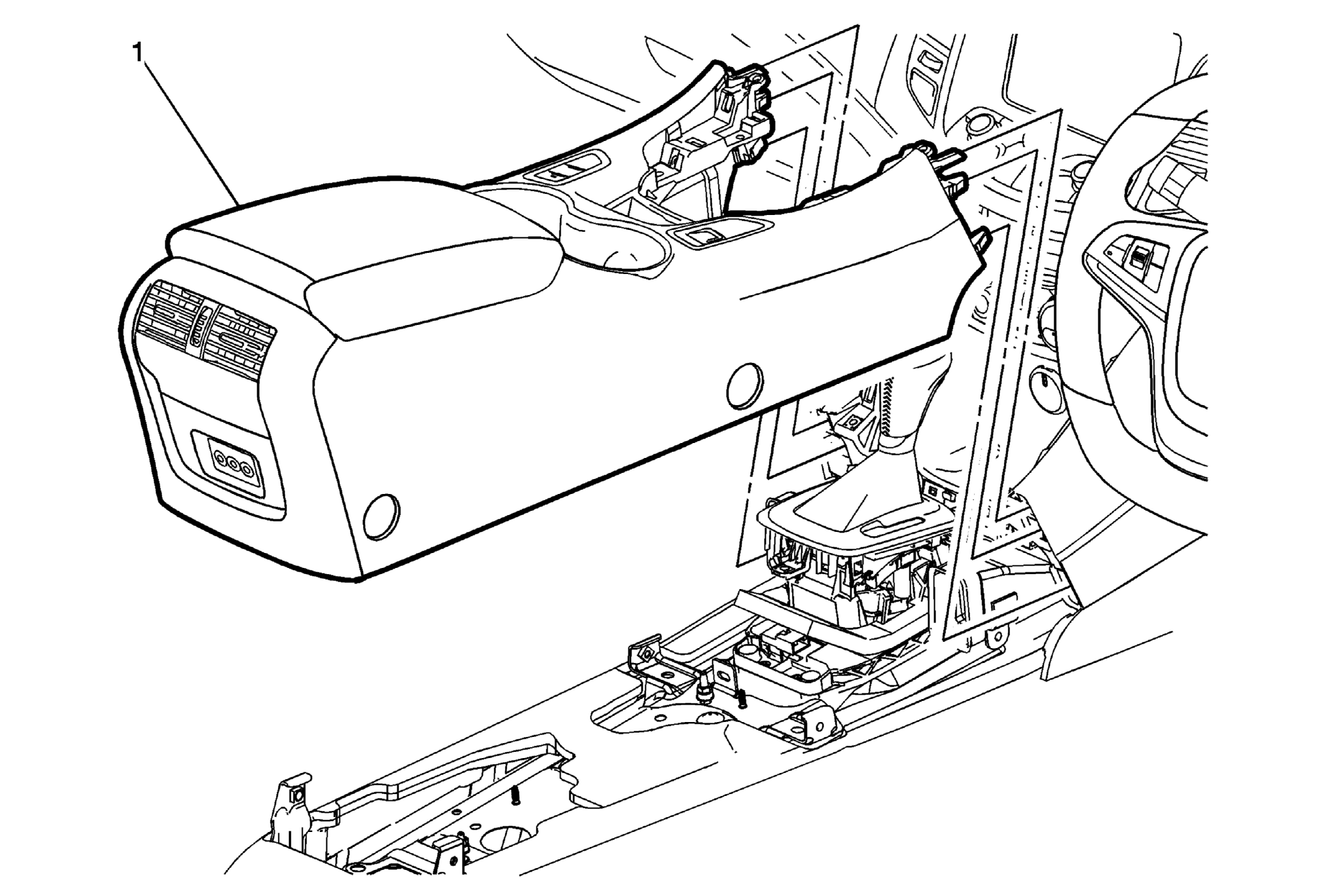

  59. Fig 25: Front Floor Console
    GM3232500Courtesy of GENERAL MOTORS COMPANY
  60. Install Front Floor Console (1) - Front Floor Console Replacement (Automatic) Front Floor Console Replacement (Manual)

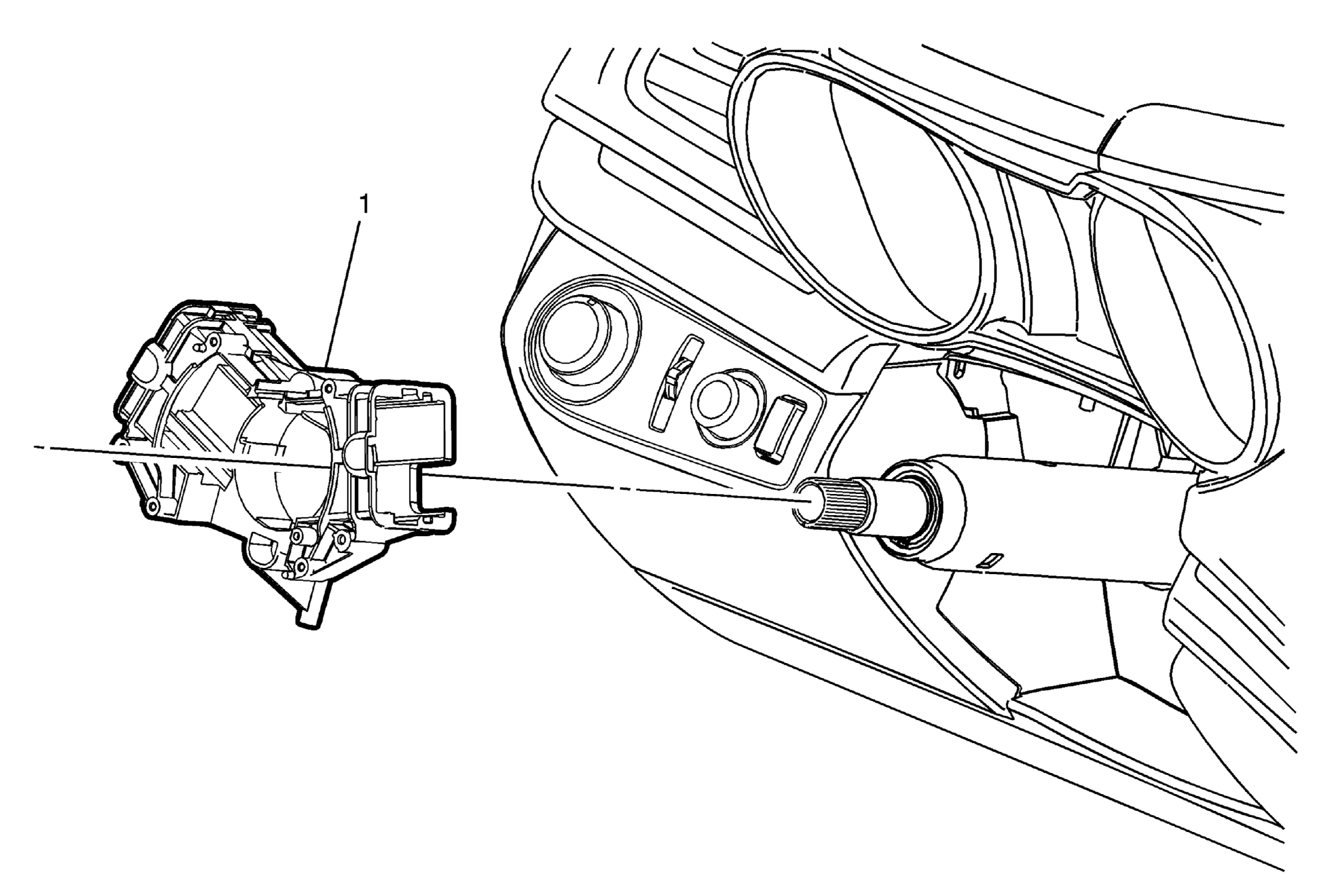

  61. Fig 26: Turn Signal Switch Bracket
    GM3414291Courtesy of GENERAL MOTORS COMPANY
  62. Install Turn Signal Switch Bracket (1) - Turn Signal Switch Bracket Replacement
  63. Enable the SIR System. Refer to SIR Disabling and Enabling .
