Installation Procedure

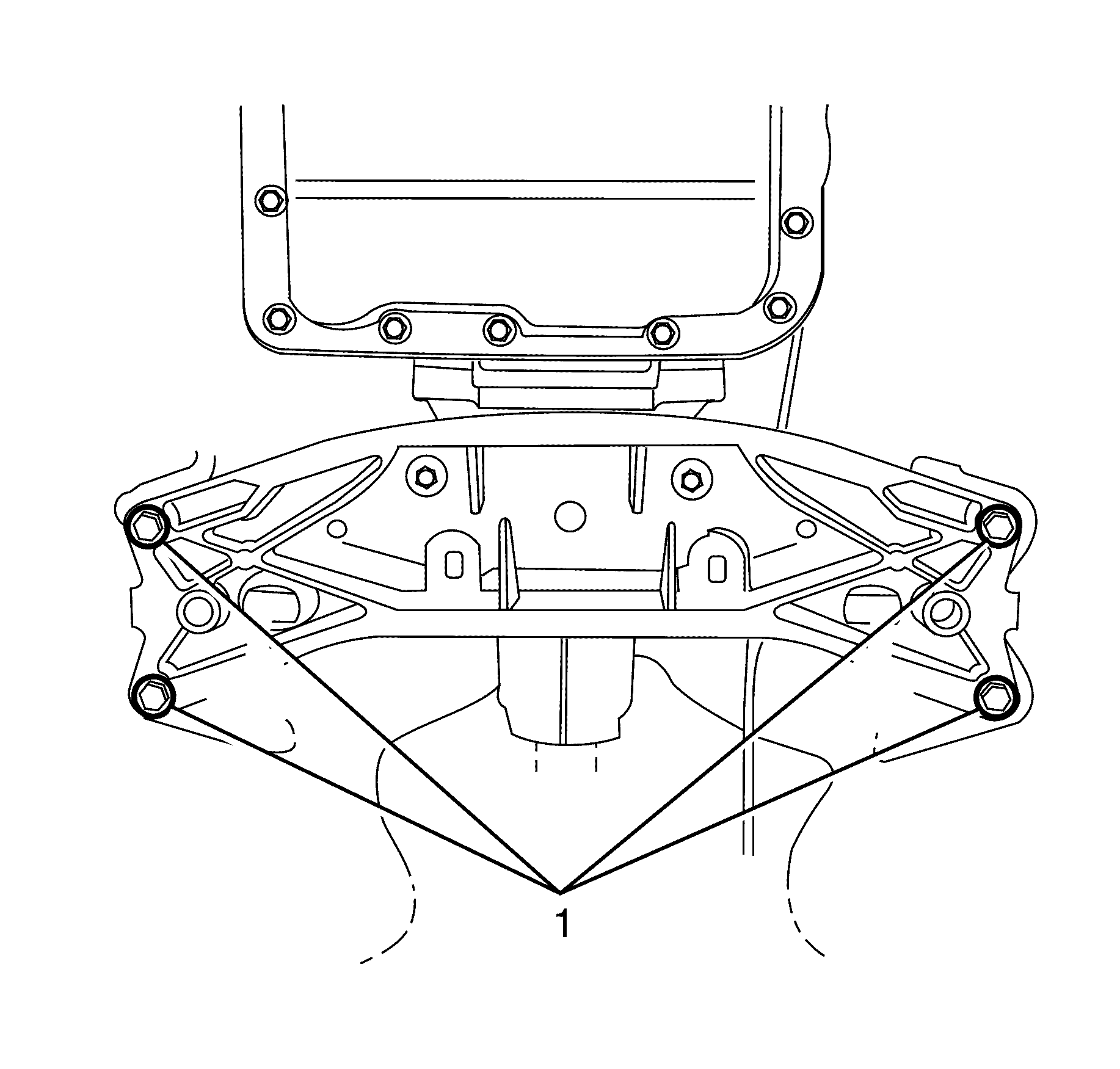

    Fig 1: Transmission Support To Lower Sub Frame Rail Retaining Bolts
    GM1943732Courtesy of GENERAL MOTORS COMPANY
  1. Install the transmission support to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transmission support to subframe retaining bolts (1).

    Tighten

    Tighten the bolts to 58 N.m (43 lb ft).

  3. Remove the suitable supporting stand from the transmission.

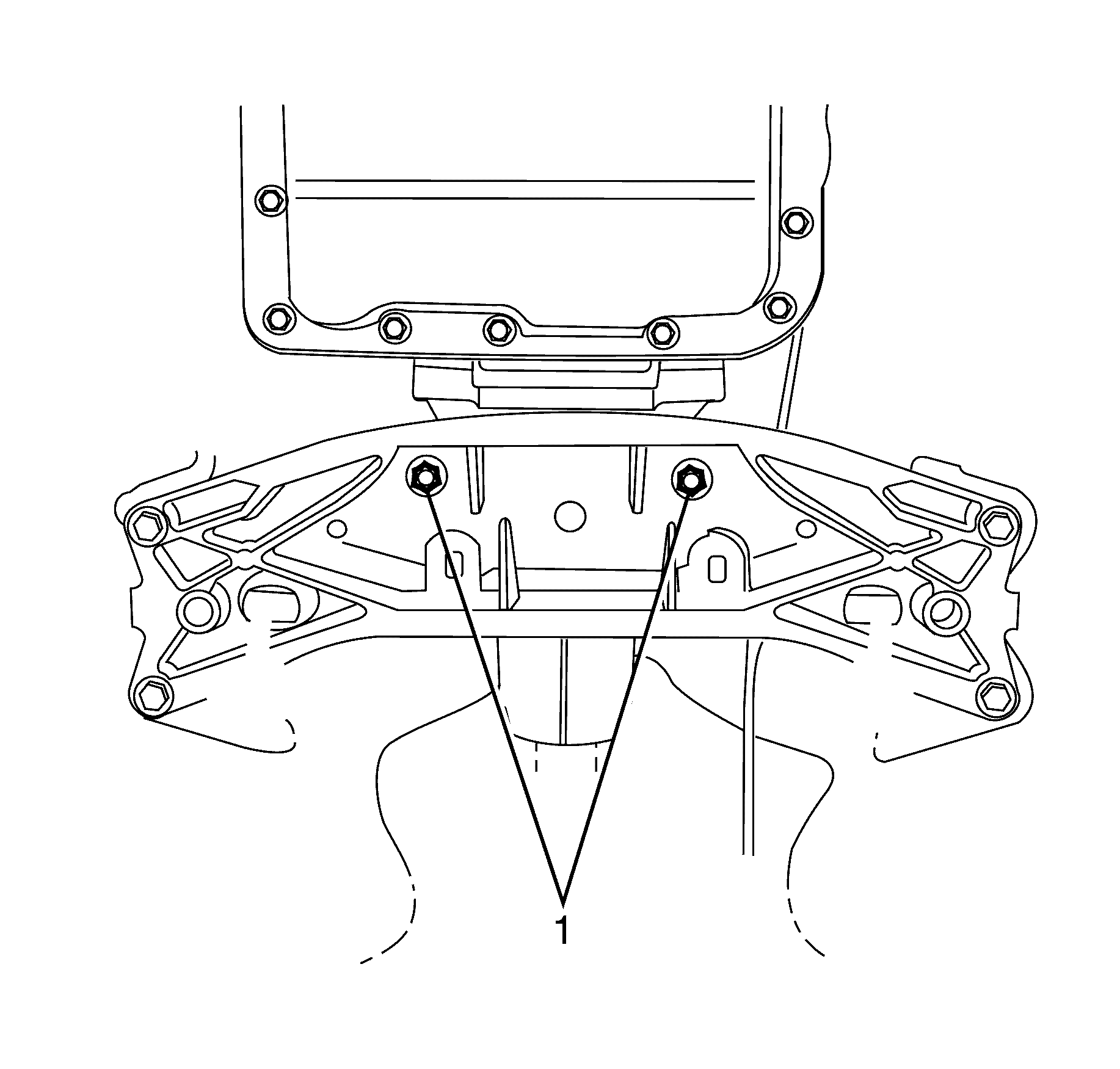

    4. Fig 2: Transmission Support To Transmission Mount Retaining Nuts
    GM1943730Courtesy of GENERAL MOTORS COMPANY
  4. Install the transmission support to transmission mount retaining nuts (1).

    Tighten

    Tighten the nuts to 22 N.m (16 lb ft).

  5. Install the exhaust system. Refer to Exhaust System Replacement .
  6. Lower the vehicle.
