Engine Controls And Fuel - 6.2L (LS3) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Controlled/Monitored Subsystem References
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Controlled/Monitored Subsystem References

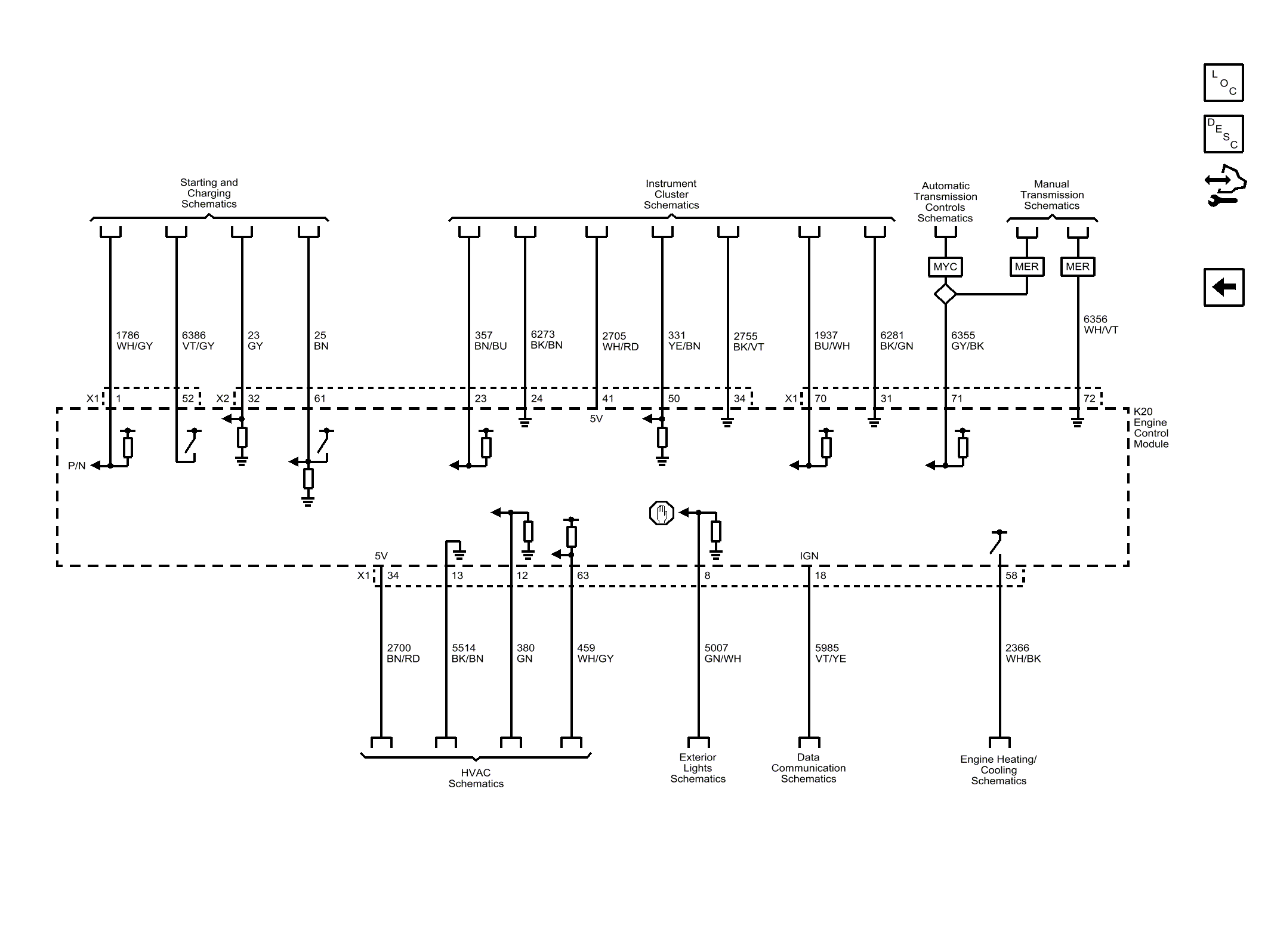

Fig 1: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
