Engine Controls And Fuel - 6.2L (LS3) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Fuel Controls - Fuel Pump Controls
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Controls - Fuel Pump Controls

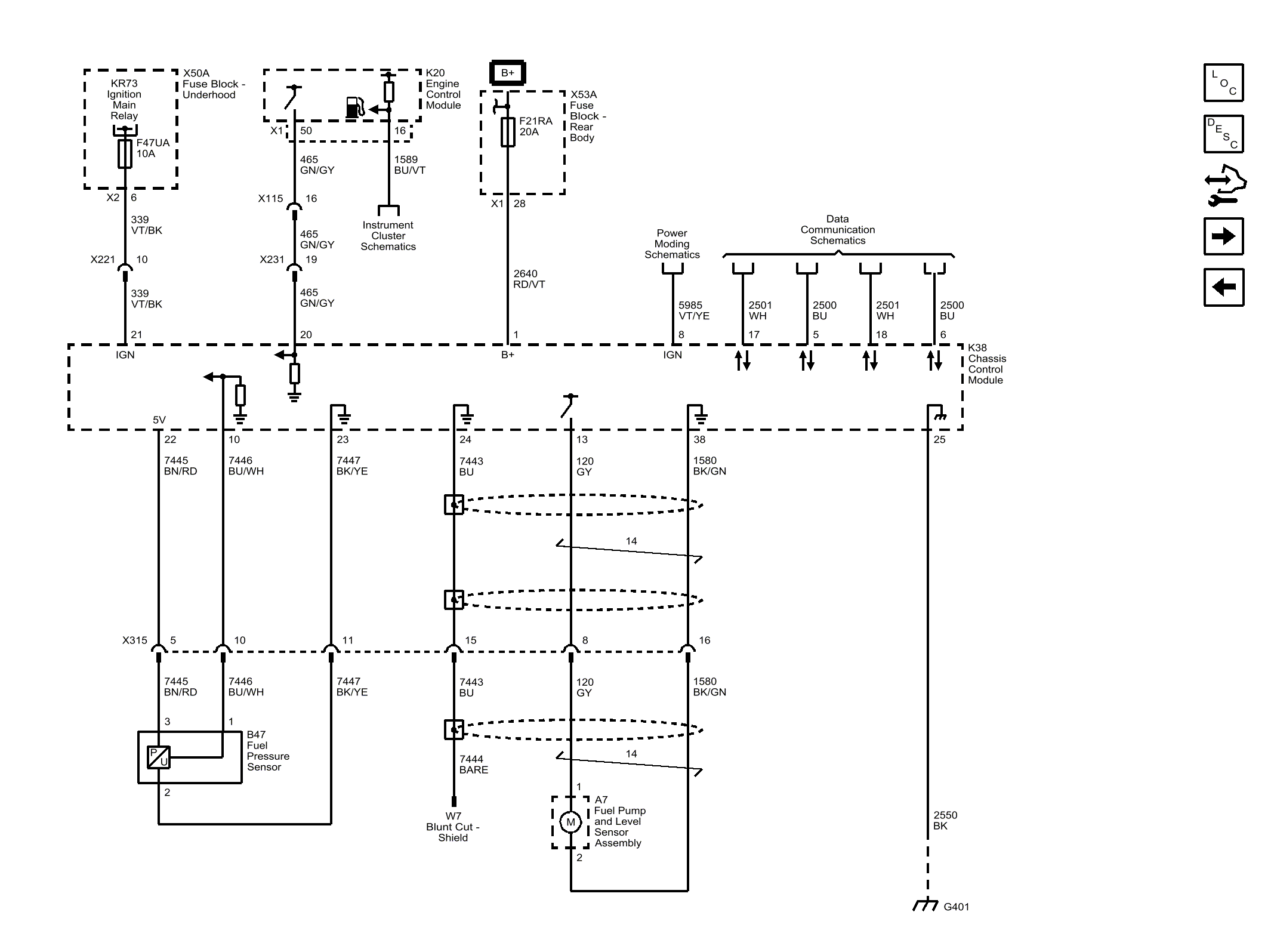

Fig 1: Fuel Controls - Fuel Pump Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
