Front End Inflatable Restraint Discriminating Sensor Replacement

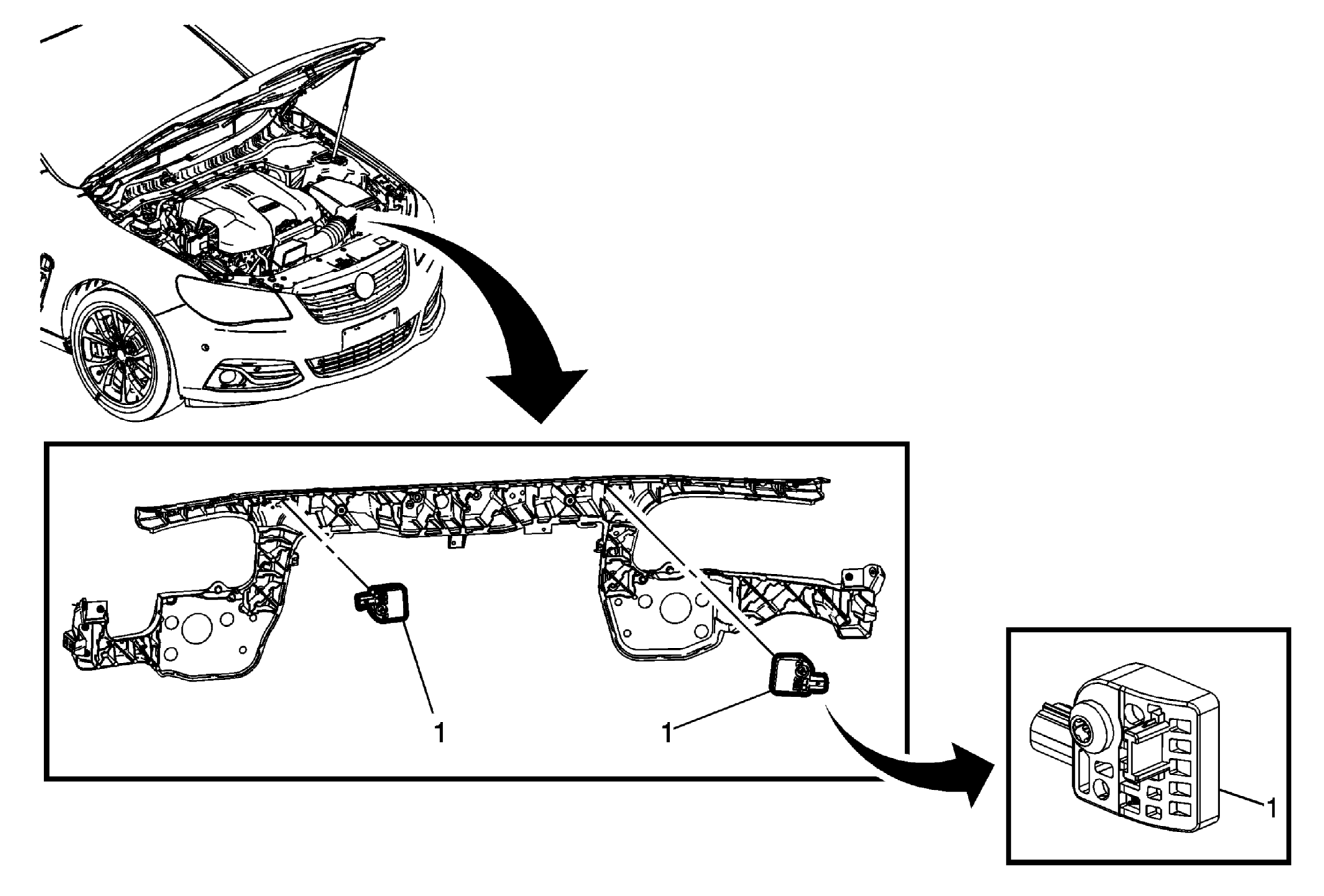

Fig 1: Front End Inflatable Restraint Discriminating Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . The radiator upper mounts can be taken off and the radiator lent back to aid in the removal. Refer to Radiator Upper Mount Replacement .
1	Airbag Front End Discriminating Sensor Assembly (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connectors. Loosen the bolts and slide the sensors out of the keyhole slots. The bolts are integral to the sensor assembly and DO NOT remove separately. Tighten 7.5 N.m (66 lb in)

Callout

Component Name

WARNING:

WARNING:

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

Failure to do so may cause future personal injury.

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
The radiator upper mounts can be taken off and the radiator lent back to aid in the removal. Refer to Radiator Upper Mount Replacement .

Airbag Front End Discriminating Sensor Assembly (Qty: 2)

CAUTION:

Procedure

Tighten
7.5 N.m (66 lb in)
