Parking Assist Control Module Replacement

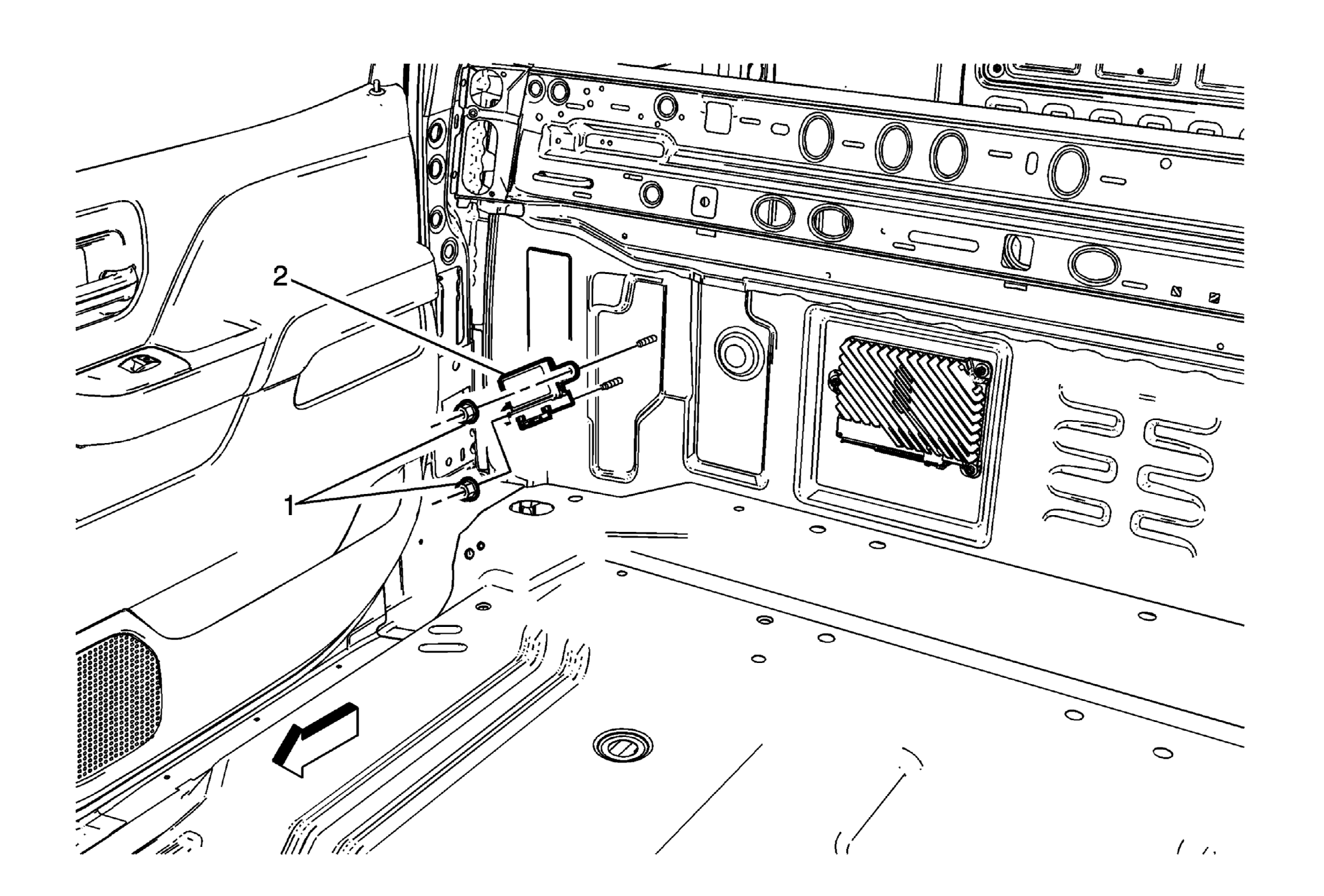

Fig 1: Rear Object Alarm Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Removal and Installation (Extended Cab with AM7)Rear Seat Removal and Installation (Heavy Duty Crew Cab with A68)Rear Seat Removal and Installation (Light Duty Crew Cab with A68)Rear Seat Removal and Installation (Extended Cab with A68) . Remove the body rear panel insulator. Refer to Body Rear Panel Insulator Replacement .
1	Rear Object Control Module Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Object Control Module Procedure Disconnect the electrical connections. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Rear Object Control Module Fasteners (Qty: 2)

CAUTION:

Tighten
6 N.m (53 lb in)

Rear Object Control Module

Procedure
