Disc Player Replacement (With IO3, IO5, IO6)

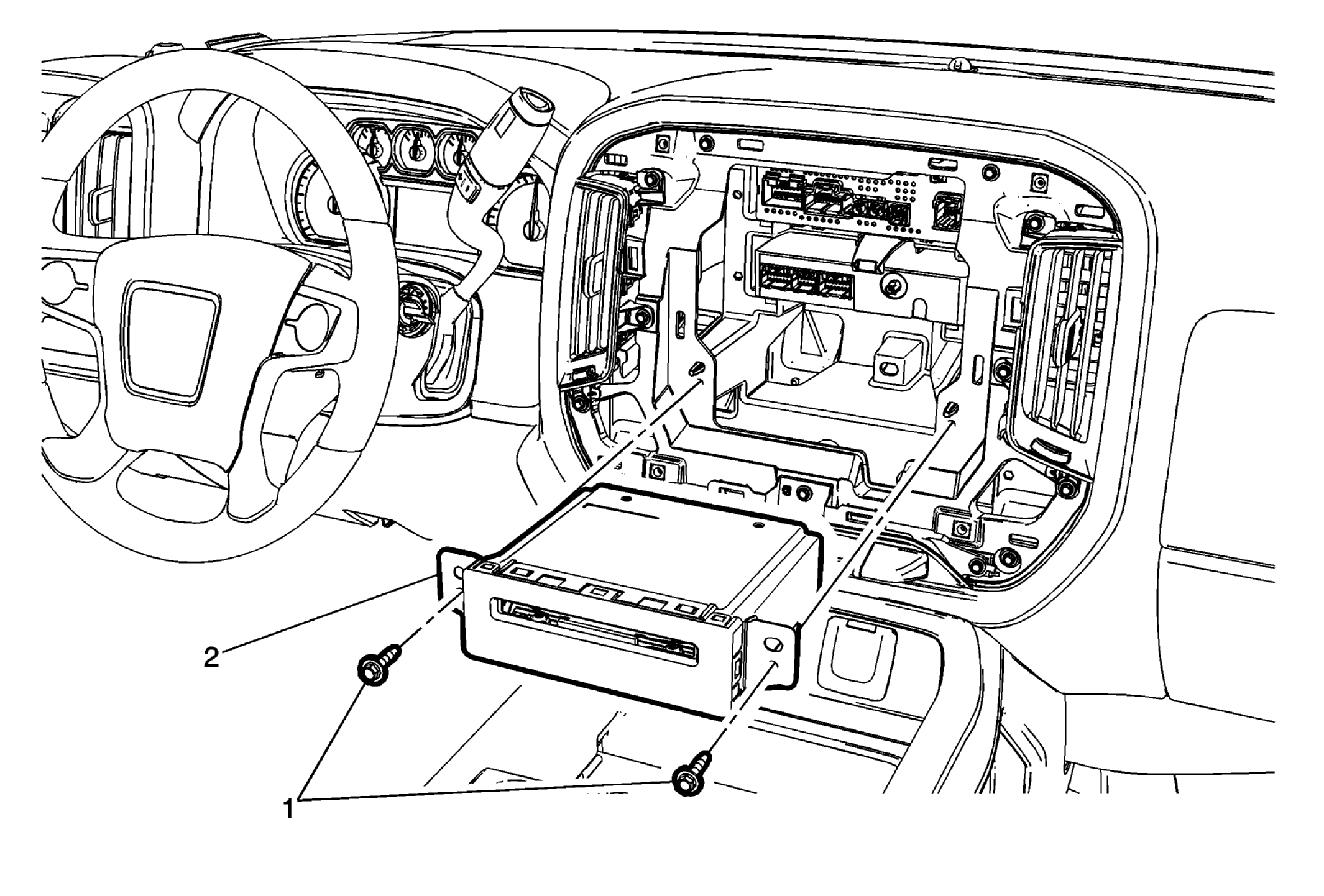

Fig 1: Audio Disc Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Disc Player Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Disc Player Procedure Disconnect the electrical connectors.
