Auxiliary Chassis Control Module Replacement - Trailer Brake

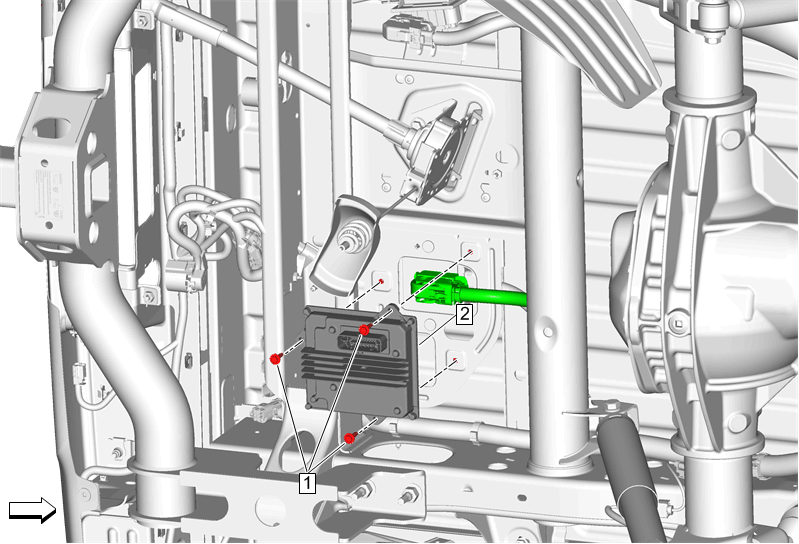

Fig 1: Auxiliary Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the spare tire. Spare Wheel Hoist Replacement
1	Auxiliary Chassis Control Module Bolt [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Auxiliary Chassis Control Module- Trailer Brake Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove the spare tire. Spare Wheel Hoist Replacement

Auxiliary Chassis Control Module Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Auxiliary Chassis Control Module- Trailer Brake

Procedure
