Engine Speed Power Take-Off Control Module Replacement

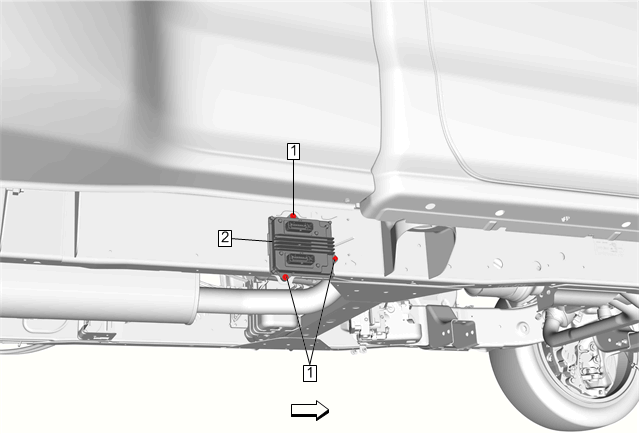

Fig 1: Auxiliary Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the harness connectors.
1	Engine Speed Power Take-Off Control Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Speed Power Take-Off Control Module Procedure New Engine Speed Power Take-Off Control Module must be programed. Refer to Engine Speed Power Take-Off Control Module Programming and Setup .

Callout

Component Name

Preliminary Procedure
Disconnect the harness connectors.

Engine Speed Power Take-Off Control Module Bolt (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Speed Power Take-Off Control Module

Procedure

New Engine Speed Power Take-Off Control Module must be programed. Refer to Engine Speed Power Take-Off Control Module Programming and Setup .
