Starter/Generator, K59 Starter/Generator Control Module, and Components

WARNING: This page is about a different variant/trim than selected.

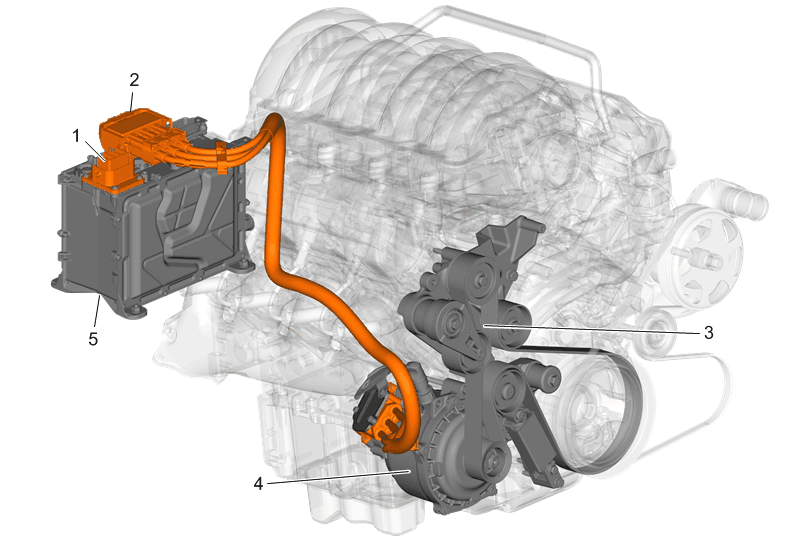

Fig 1: Starter/Generator, K59 Starter/Generator Control Module, and Components
GM4406711Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 High Voltage DC Connector
2 High Voltage 3 Phase AC Connector
3 Generator Drive Belt and Tensioner Assembly
4 A15 Starter/Generator
5 K59 Starter/Generator Control Module
