Installation Procedure

WARNING: This page is about a different variant/trim than selected.

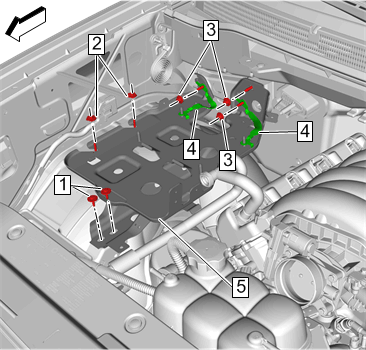

    Fig 1: Accessory DC Power Control Module Tray
    GM4598976Courtesy of GENERAL MOTORS COMPANY
  1. Accessory DC Power Control Module Tray 5 -Install
  2. Battery Negative Cable Extension Cable Strap 4 -Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Accessory DC Power Control Module Nut 2 -Install and tighten 9 N.m (80 lb in)
  4. Accessory DC Power Control Module Nut 3 -Install and tighten 22 N.m (16 lb ft)
  5. Accessory DC Power Control Module Bolt 1 -Install and tighten 9 N.m (80 lb in)

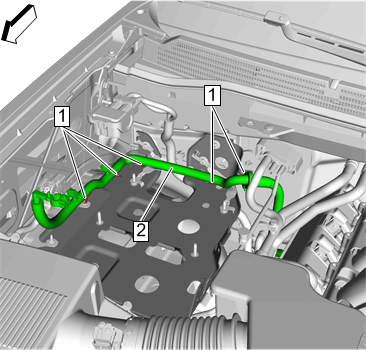

    6. Fig 2: Retainer
    GM4598975Courtesy of GENERAL MOTORS COMPANY
  6. Retainer 1 -Engage

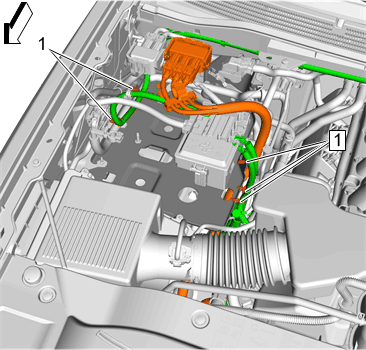

    7. Fig 3: Retainer
    GM4598973Courtesy of GENERAL MOTORS COMPANY
  7. Retainer 1 -Engage

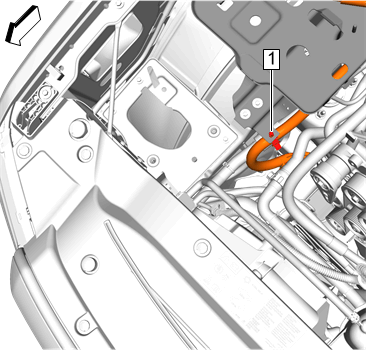

    8. Fig 4: Retainer
    GM4598972Courtesy of GENERAL MOTORS COMPANY
  8. Retainer 1 -Engage
  9. Install the generator control module. Generator Control Module Replacement
  10. Install the battery. Battery Replacement
  11. Install the air cleaner assembly. Air Cleaner Assembly Replacement
