Installation Procedure

WARNING: This page is about a different variant/trim than selected.

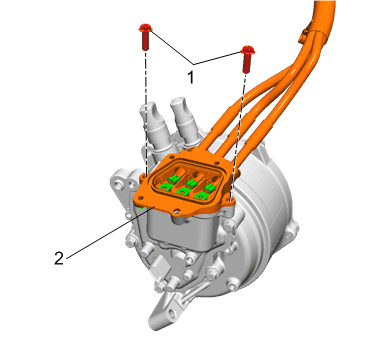

    Fig 1: Generator Control Module 3 Phase Cable
    GM4371986Courtesy of GENERAL MOTORS COMPANY
  1. Generator Control Module 3 Phase Cable 2 -Install
  2. Loosely install the generator control module 3 phase cable mounting bolts. 1

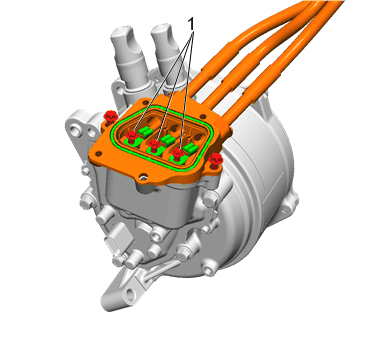

    3. Fig 2: Generator Control Module 3 Phase Cable Terminal Bolts
    GM4371987Courtesy of GENERAL MOTORS COMPANY
  3. Loosely install the generator control module 3 phase cable terminal bolts. 1

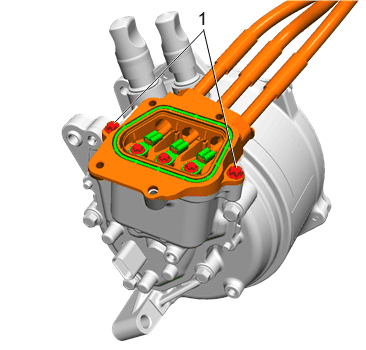

    4. Fig 3: Generator Control Module 3 Phase Cable Mounting Bolt
    GM4371993Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  4. Generator Control Module 3 Phase Cable Mounting Bolt 1 -Tighten 9 N.m (80 lb in)

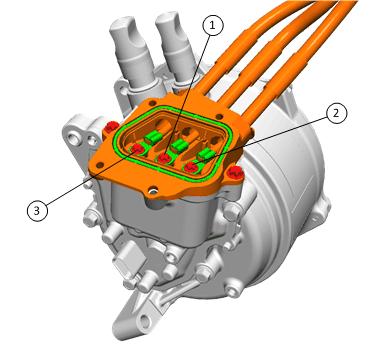

    5. Fig 4: Control Module 3 Phase Cable Bolt Tightening Sequence
    GM4371999Courtesy of GENERAL MOTORS COMPANY
  5. Tighten the bolts in the sequence shown.8 N.m (71 lb in)

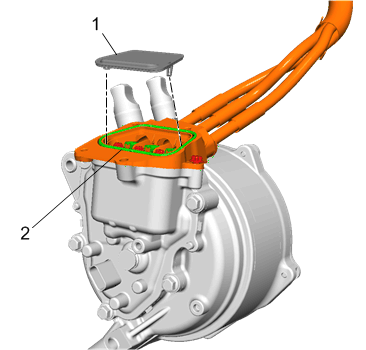

    6. Fig 5: Terminal Cover Seal
    GM4372008Courtesy of GENERAL MOTORS COMPANY
  6. Terminal Cover Seal 2 -Install
  7. Dust Cover 1 -Install

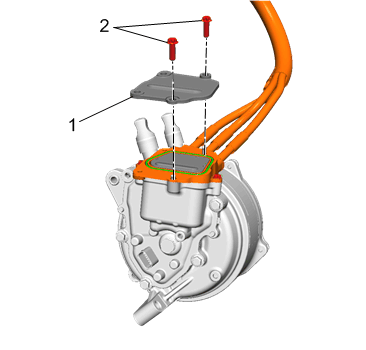

    8. Fig 6: Cover
    GM4372027Courtesy of GENERAL MOTORS COMPANY
  8. Cover 1 -Install
  9. Loosely install the cover bolts. 2

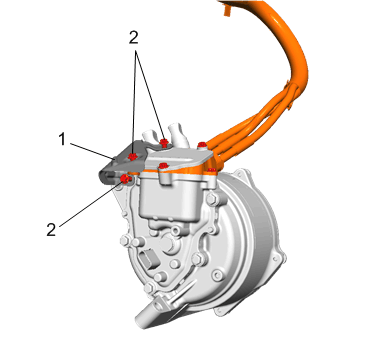

    10. Fig 7: Terminal Cover Seal
    GM4372033Courtesy of GENERAL MOTORS COMPANY
  10. Heat Shield 1 -Install
  11. Loosely install the heat shield bolts. 2

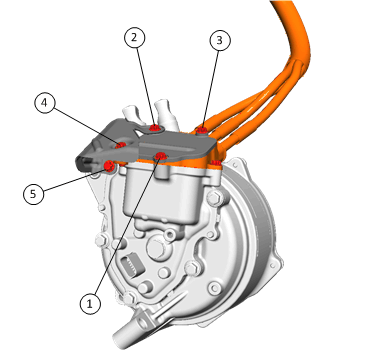

    12. Fig 8: Cover Bolt TIghtening Sequence
    GM4372040Courtesy of GENERAL MOTORS COMPANY
  12. Tighten the bolts in the sequence shown.9 N.m (80 lb in)

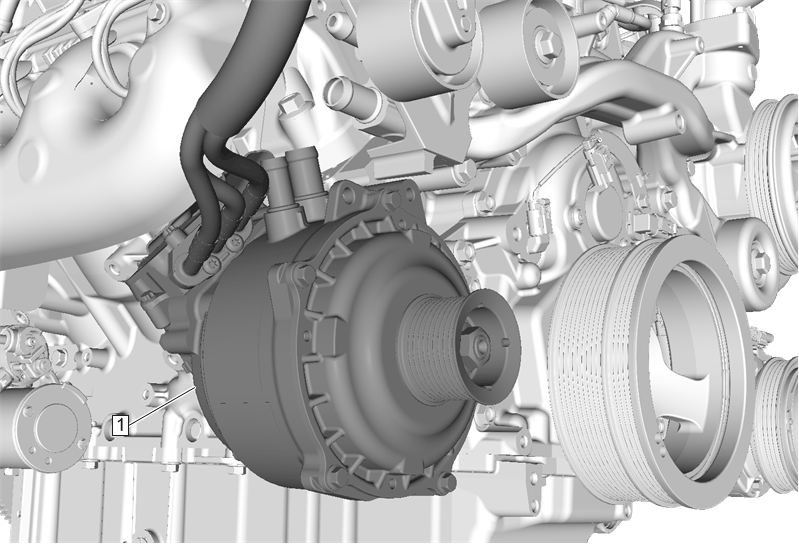

    13. Fig 9: Starter Generator
    GM4353331Courtesy of GENERAL MOTORS COMPANY
  13. Starter Generator 1 - Install - Starter Generator Replacement
