Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Starter Generator
    GM4353331Courtesy of GENERAL MOTORS COMPANY
  1. Starter Generator 1 -Remove - Starter Generator Replacement

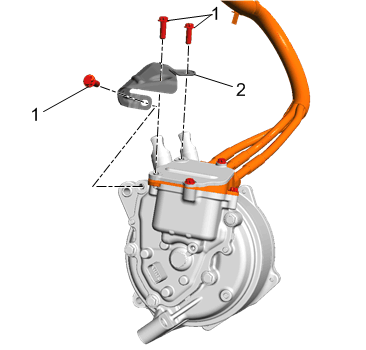

    2. Fig 2: Heat Shield Bolt
    GM4371958Courtesy of GENERAL MOTORS COMPANY
  2. Heat Shield Bolt 1 -Remove
  3. Heat Shield 2 -Remove

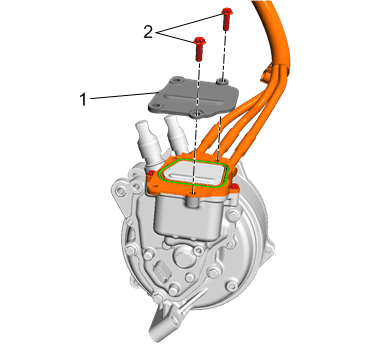

    4. Fig 3: Cover Bolt
    GM4371972Courtesy of GENERAL MOTORS COMPANY
  4. Cover Bolt 2 -Remove
  5. Cover 1 -Remove

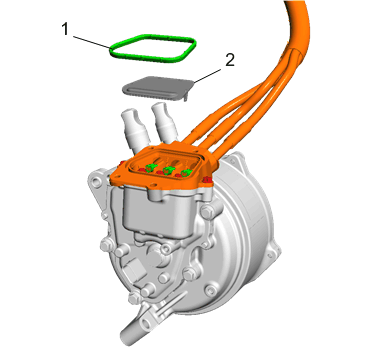

    6. Fig 4: Terminal Cover Seal And Dust Cover
    GM4371975Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Clean and inspect the seal for damage.

  6. Terminal Cover Seal 1 -Remove
  7. Dust Cover 2 -Remove

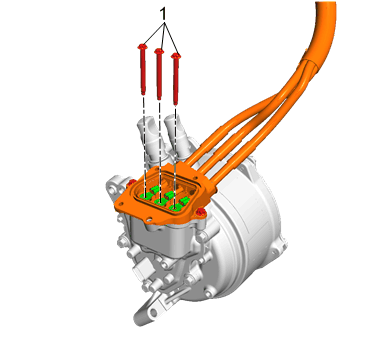

    8. Fig 5: Generator Control Module 3 Phase Cable Terminal Bolt
    GM4371976Courtesy of GENERAL MOTORS COMPANY
  8. Generator Control Module 3 Phase Cable Terminal Bolt 1 -Remove

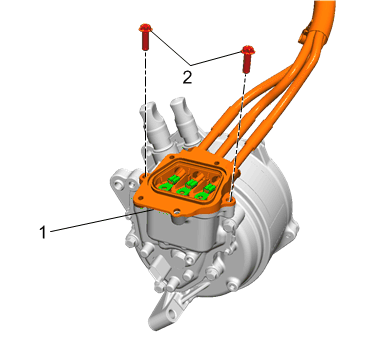

    9. Fig 6: Generator Control Module 3--Phase Cable
    GM4371978Courtesy of GENERAL MOTORS COMPANY
  9. Generator Control Module 3 Phase Cable Mounting Bolt 2 -Remove
  10. Generator Control Module 3 Phase Cable 1 -Remove
