Rear of Instrument Panel Components

Items
1. K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2
2. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag
3. A33 Media Disc Player (TG5/U42/D07) A33 Media Disc Player X1 (D07/U42)A33 Media Disc Player X1 (TG5)A33 Media Disc Player X2 (D07/U42)A33 Media Disc Player X3 (U42)A33 Media Disc Player X4 (U42)A33 Media Disc Player X5 (U42)
5. A11 Radio A11 Radio X1 A11 Radio X2 (-IOB)A11 Radio X2 (IOB)A11 Radio X3 A11 Radio X4 ()A11 Radio X5 (IOB)A11 Radio X6 (IO5/IO6 +U2K)A11 Radio X7 (IO3/IOB)
6. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 K73 Telematics Communication Interface Control Module X2
7. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 ()K56 Serial Data Gateway Module X2
8. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
9. T1 Accessory DC/AC Power Inverter Module (KI4 or KI5) T1 Accessory DC/AC Power Inverter Module (KI5)
10. X80J Accessory Power Receptacle - Instrument Panel 1 (D07) X80J Accessory Power Receptacle - Instrument Panel 1
11. X81 Accessory Power Receptacle - 110V AC (KI4) X81 Accessory Power Receptacle - 110V AC X1 X81 Accessory Power Receptacle - 110V AC X2
12. S135 Rollover Protection Disable Switch (C9I) S135 Rollover Protection Disable Switch

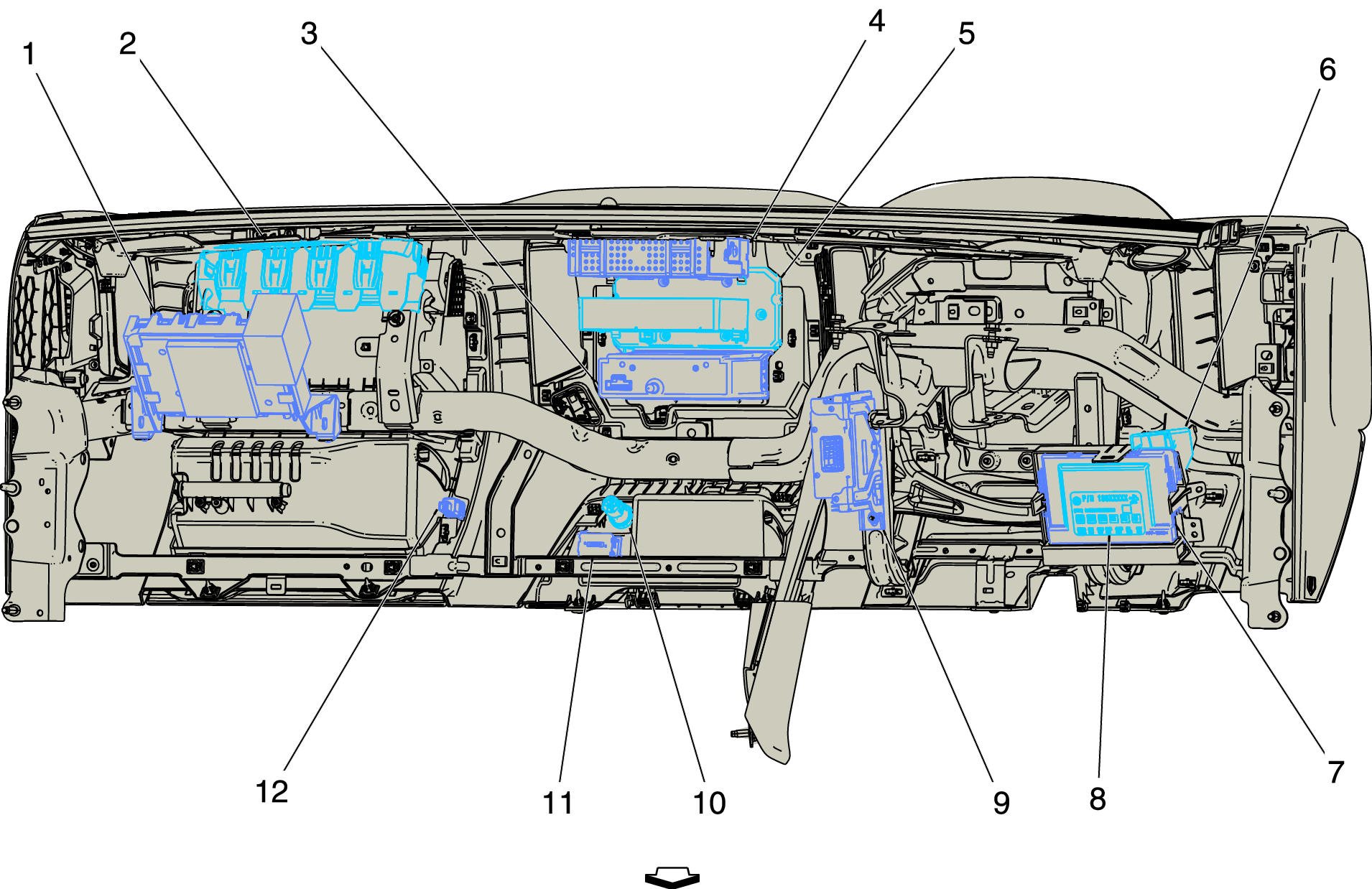

Fig 1: Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
