Keyless Entry - Passive Entry (ATH)

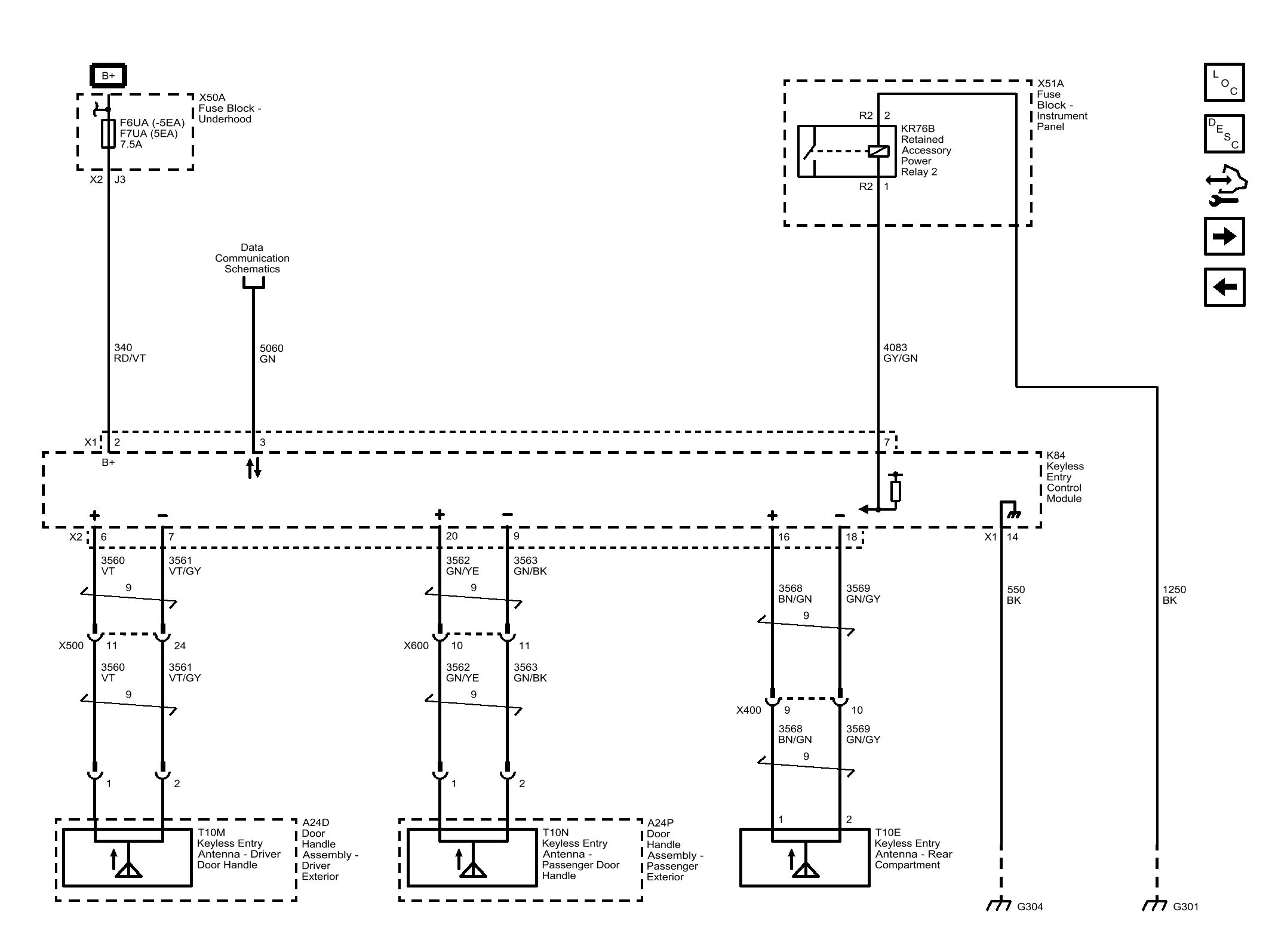

Fig 1: Keyless Entry Wiring Schematics - Passive Entry (ATH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
