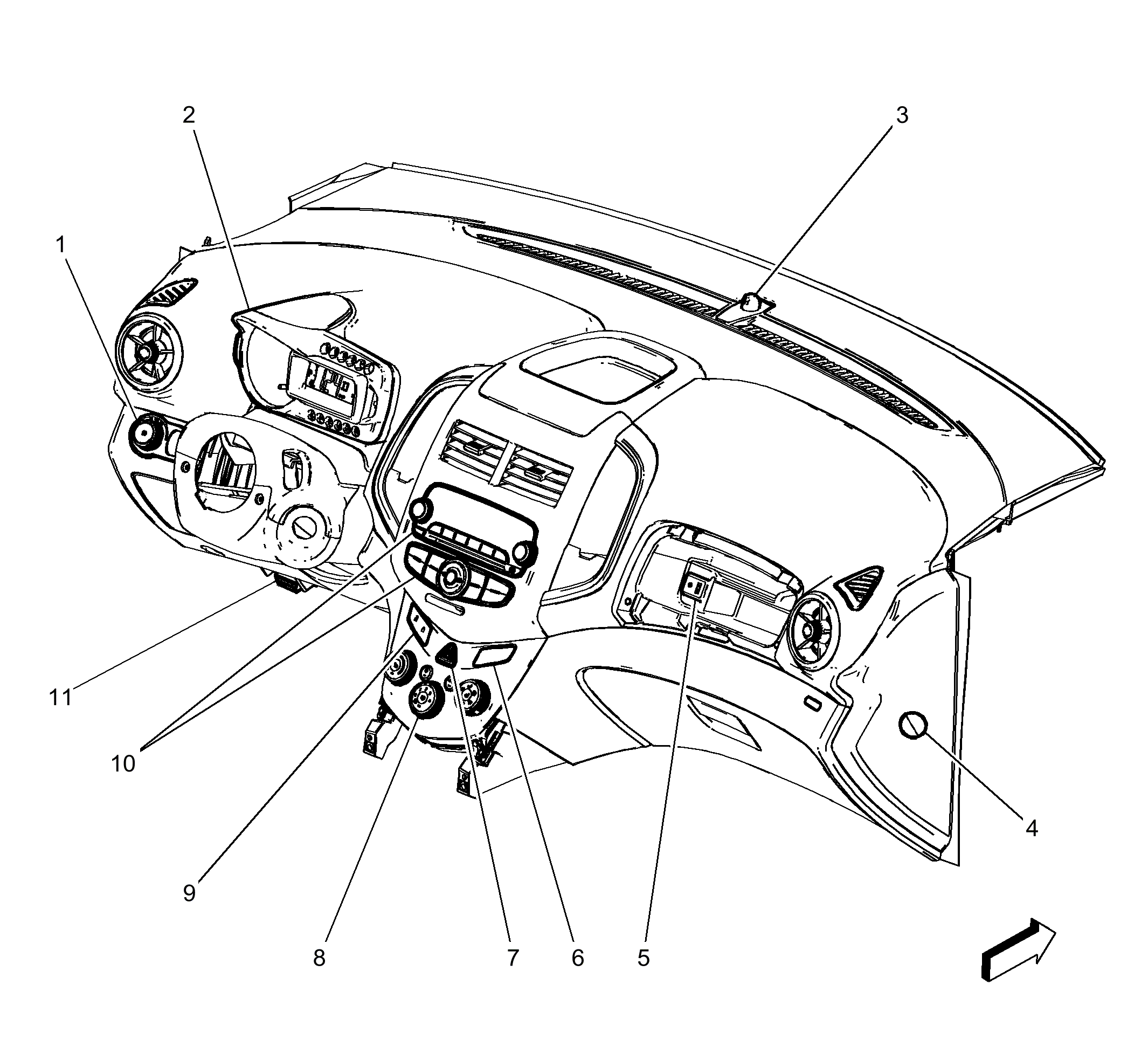

Front of Instrument Panel Components
Front of Instrument Panel Components
| Items |
|---|
| 1. S30 Headlamp Switch S30 Headlamp Switch |
| 2. P16 Instrument Cluster P16 Instrument Cluster |
| 3. B10 Ambient Light Sensor (T83 or UTJ) B10 Ambient Light Sensor |
| 4. S40 Passenger Air Bag Disable Switch S40 Passenger Air Bag Disable Switch |
| 5. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2 |
| 6. P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator |
| 7. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 8. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3 |
| 9. S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver |
| 10. A11 Radio (Without UL5) A11 Radio X1A11 Radio X5 (U2K) |
| 11. X84 Data Link Connector X84 Data Link Connector |
