Isolated High Speed GMLAN

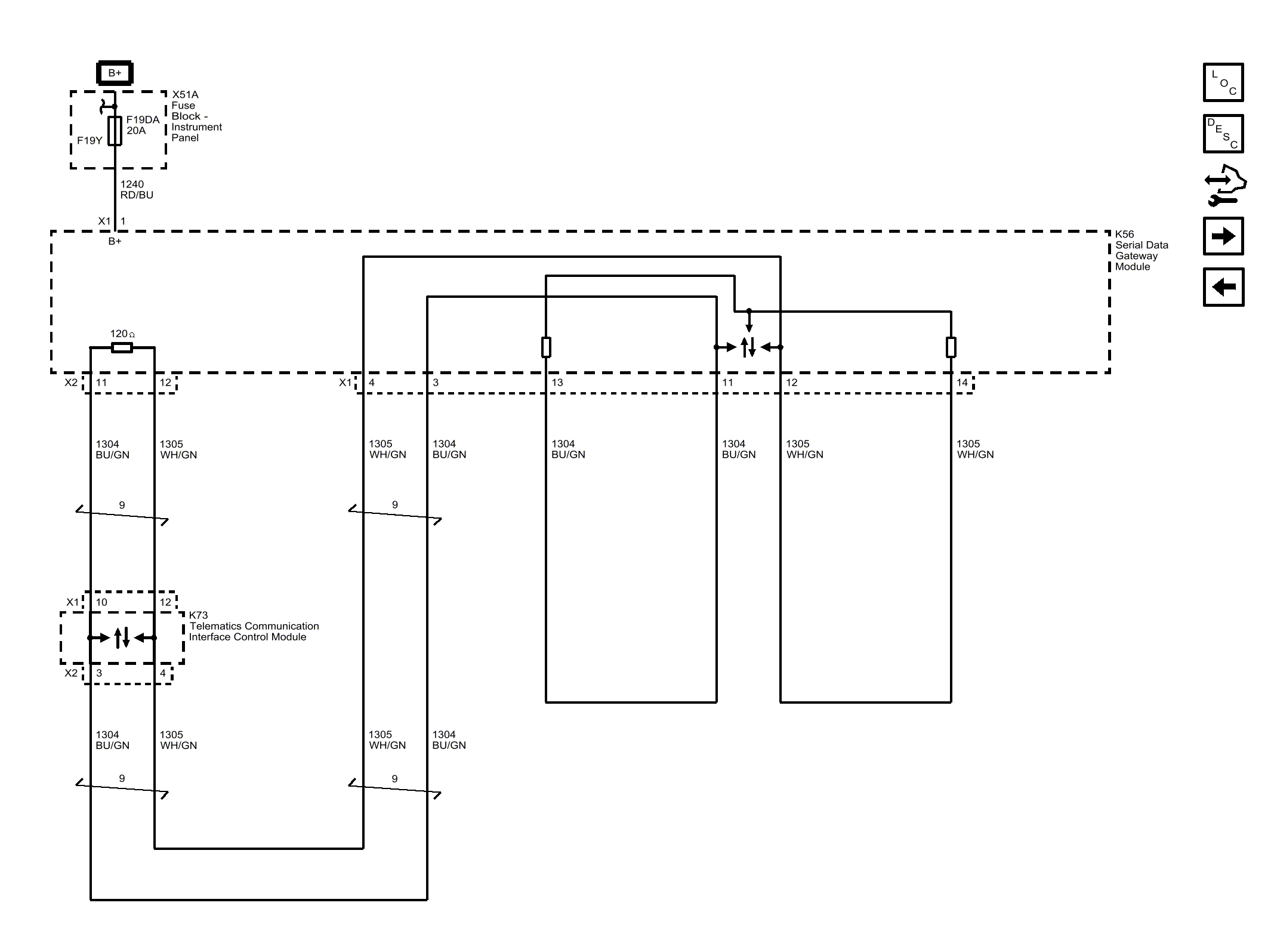

Fig 1: Isolated High Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
