Parking Assist Control Module Replacement (Hatchback)

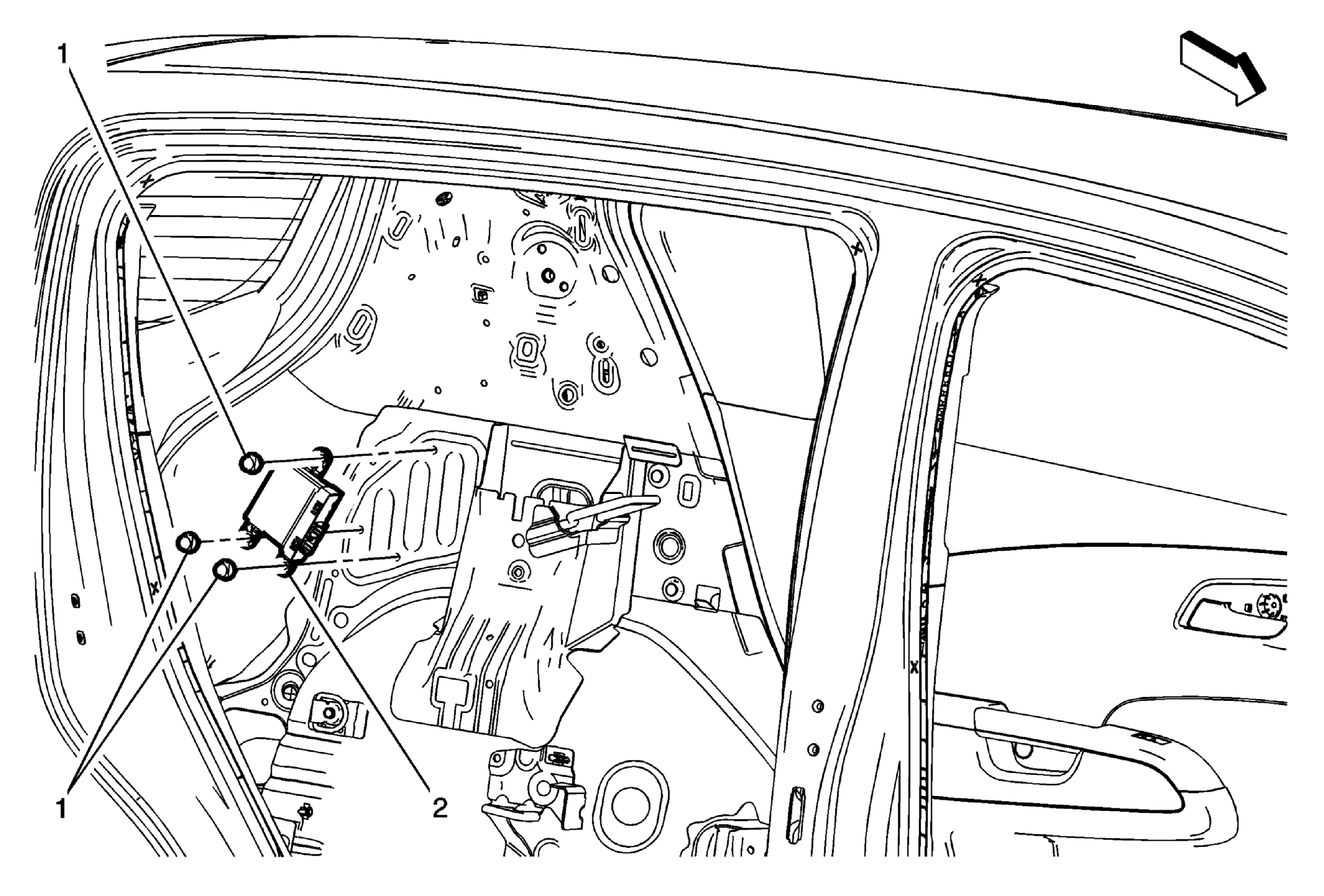

Fig 1: Parking Assist Control Module (Hatchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement (Hatchback) .
1	Rear Object Alarm Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Rear Object Alarm Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement (Hatchback) .

Rear Object Alarm Module Fasteners (Qty: 3)

CAUTION:

Rear Object Alarm Module

Procedure
