Parking Assist Control Module Replacement (Sedan)

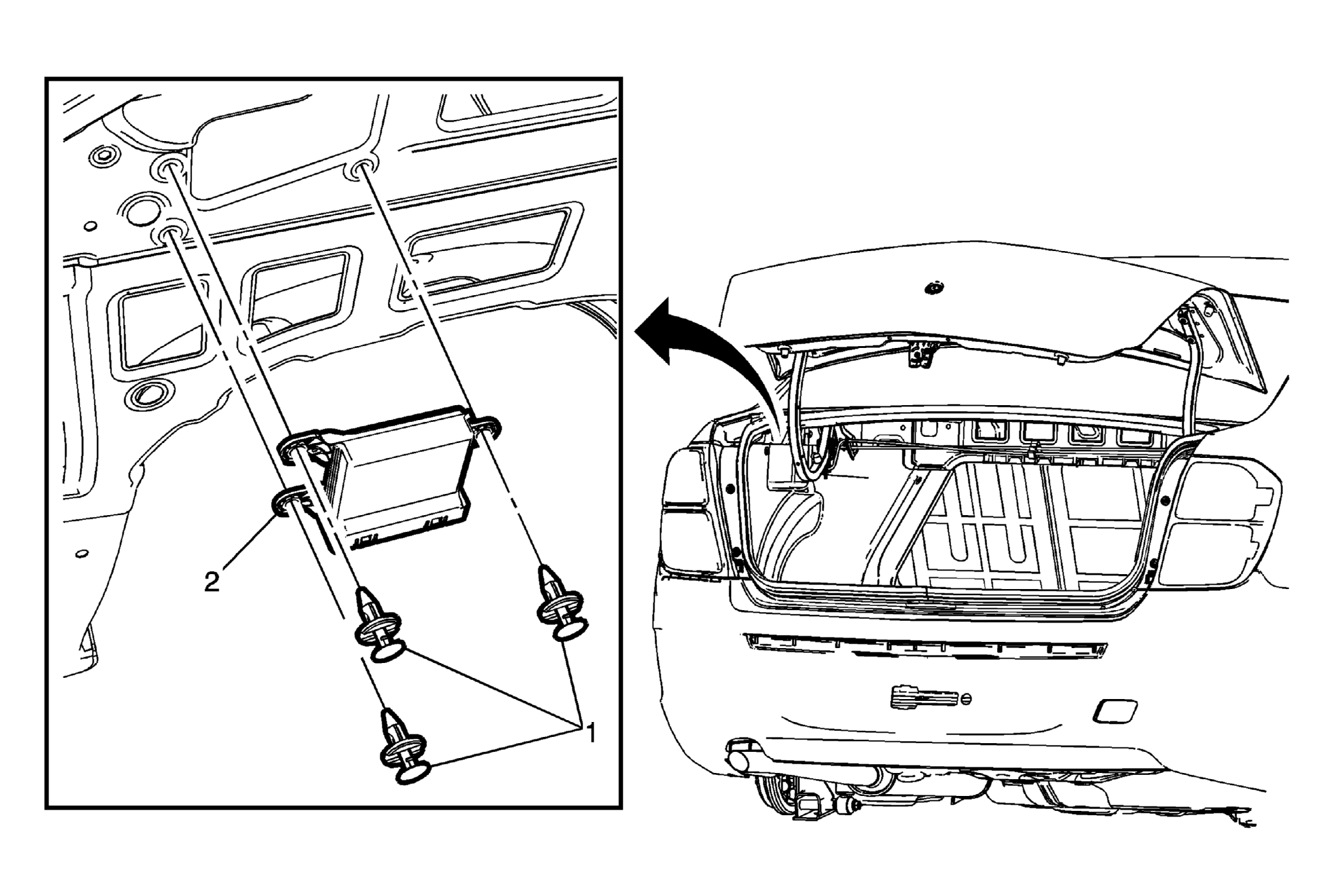

Fig 1: Parking Assist Control Module (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan) .
1	Rear Object Alarm Control Module Retainers (Qty: 3)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan) .

Rear Object Alarm Control Module Retainers (Qty: 3)

Rear Object Alarm Control Module

Procedure
