Air Cleaner Element Replacement

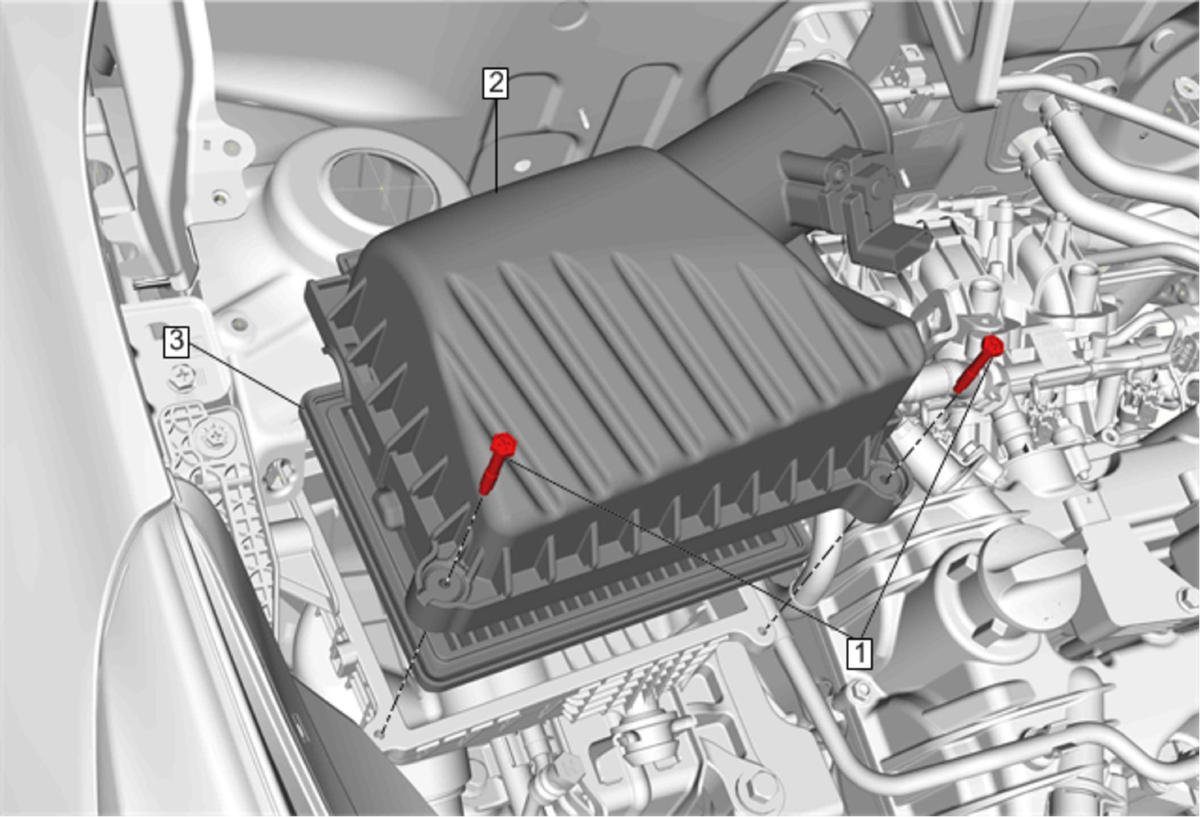

Fig 1: Air Cleaner Element
GM4013530Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Housing Fastener (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
