Front Intake Air Duct Adapter Replacement

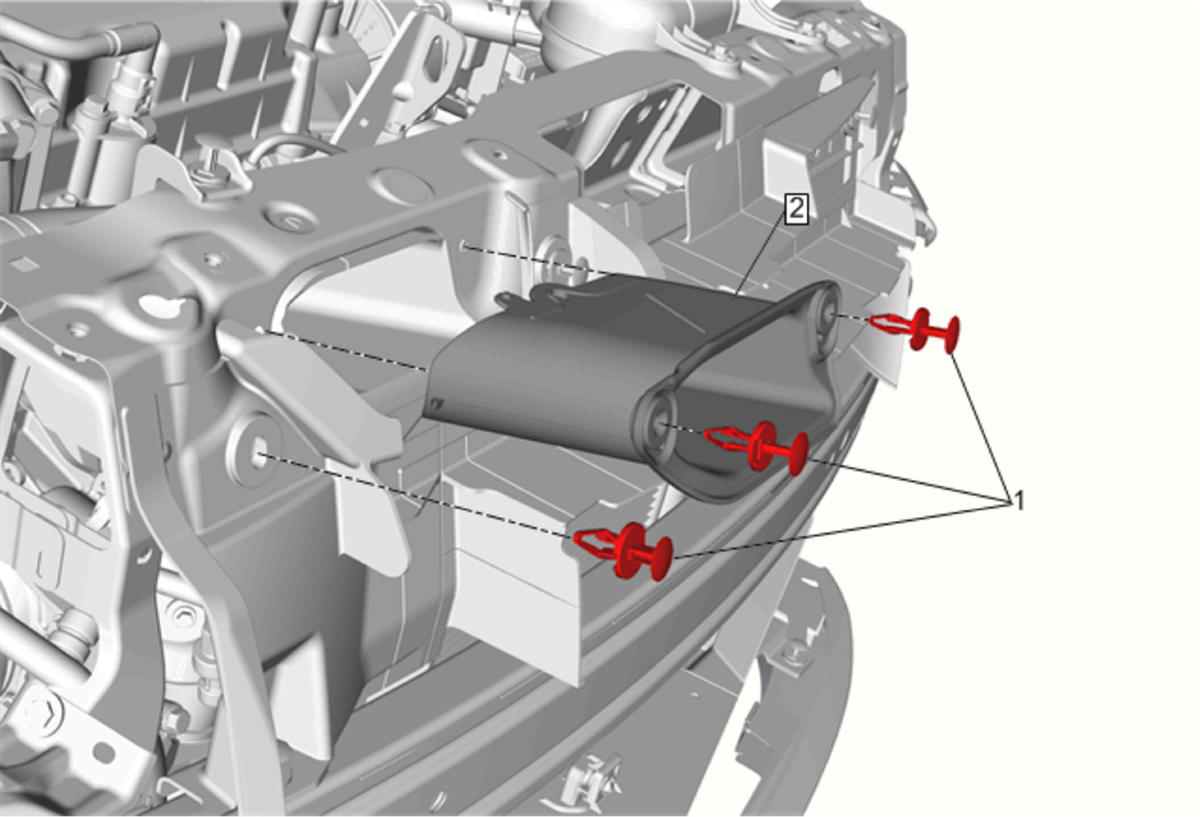

Fig 1: Front Intake Air Duct Adapter
GM4013659Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1 Front Intake Air Duct Adaptor Retainer (Qty: 3)
2 Front Intake Air Duct Adaptor
