Engine Components - Right Front (L5Q)

Engine Components - Right Front (L5Q)

Items
1. G13 Generator G13 Generator X1G13 Generator X2
2. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake
3. T8A Ignition Coil 1 (LQ5 or LV7) T8A Ignition Coil 1 (LV7)
4. T8B Ignition Coil 2 (LQ5 or LV7) T8B Ignition Coil 2 (LV7)
5. T8C Ignition Coil 3 (LQ5 or LV7) T8C Ignition Coil 3 (LV7)
6. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
7. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
8. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1
9. G1 A/C Compressor
10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

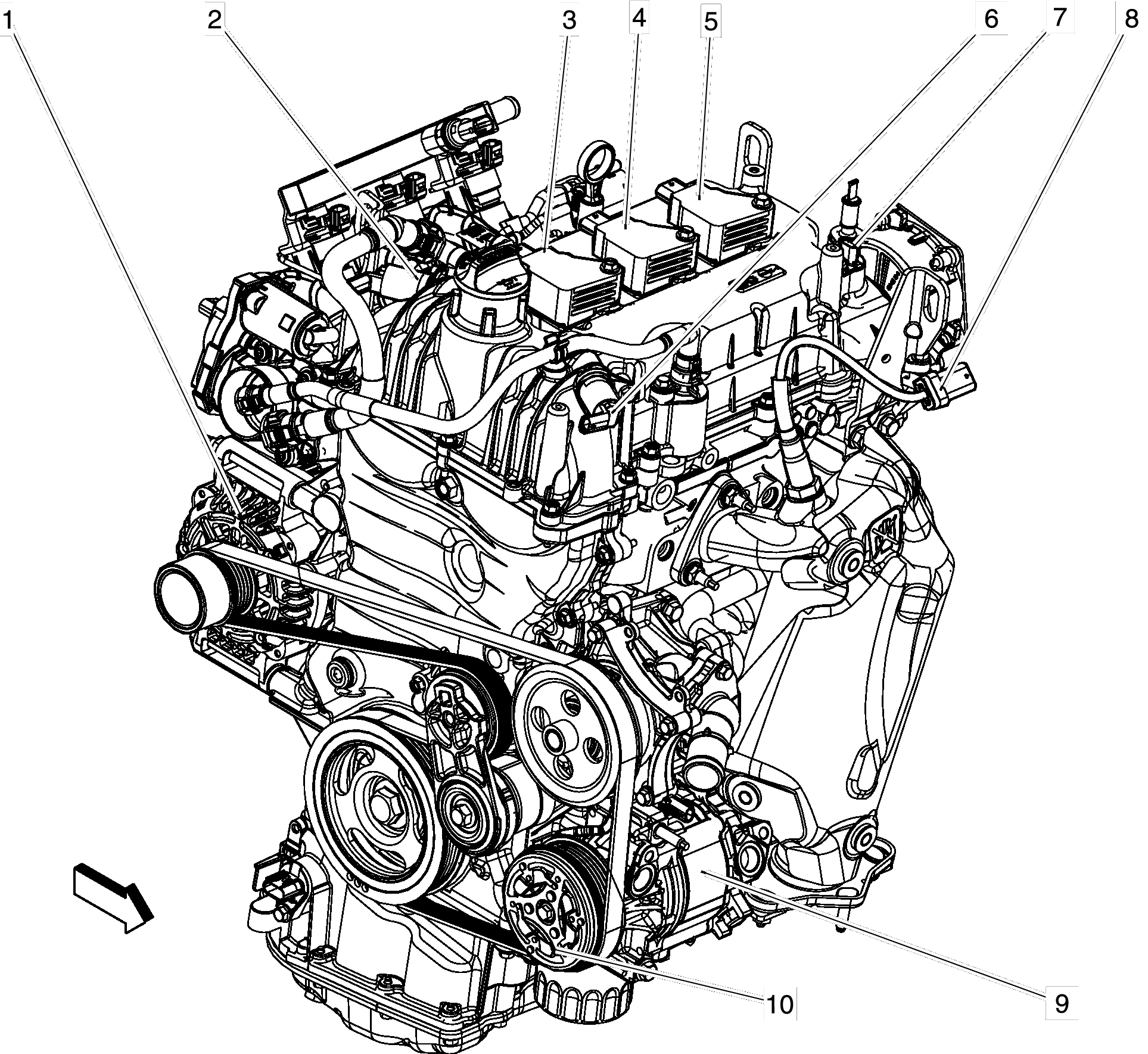

Fig 1: Engine Components - Right Front (L5Q)
GM4496596Courtesy of GENERAL MOTORS COMPANY
