Communication Interface Module Battery Replacement

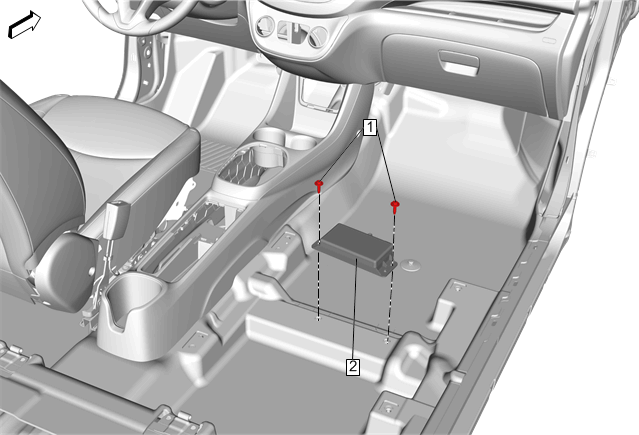

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Disconnect the battery negative cable. Remove passenger front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Communication Interface Module Battery Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Communication Interface Module Battery Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING:

Preliminary Procedures

Disconnect the battery negative cable.
Remove passenger front seat. Refer to Driver or Passenger Seat Removal and Installation .

Communication Interface Module Battery Bolt (Qty: 2)

CAUTION:

Tighten
4 N.m (35 lb in)

Communication Interface Module Battery
Procedure
Disconnect the electrical connector.
