Installation Procedure

Position the junction block base (2) to the inner wheelhouse stud.

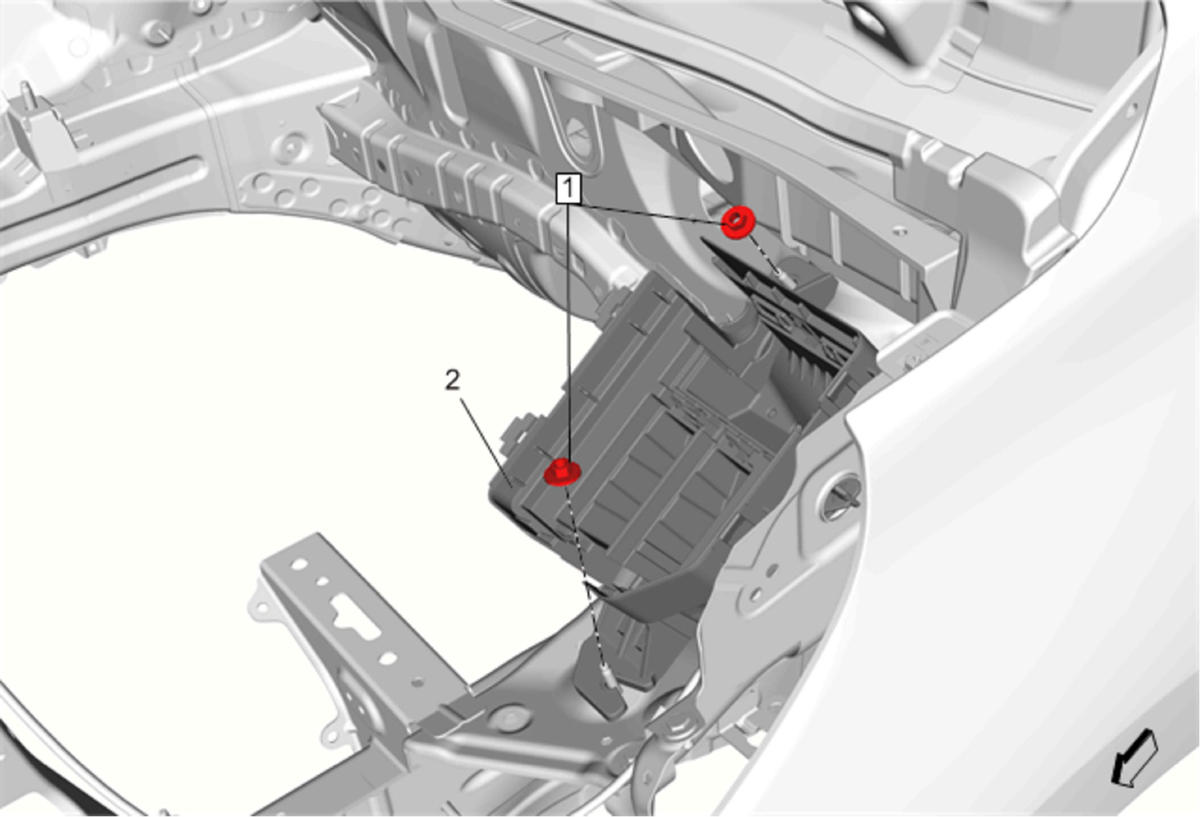

Fig 1: Junction Block Nuts And Junction Block Base
Courtesy of GENERAL MOTORS COMPANY
Install the junction block base nut (1) and tighten to 9 N.m (80 lb in).
CAUTION: Refer to Fastener Caution .
Install the junction block (2) to the base.

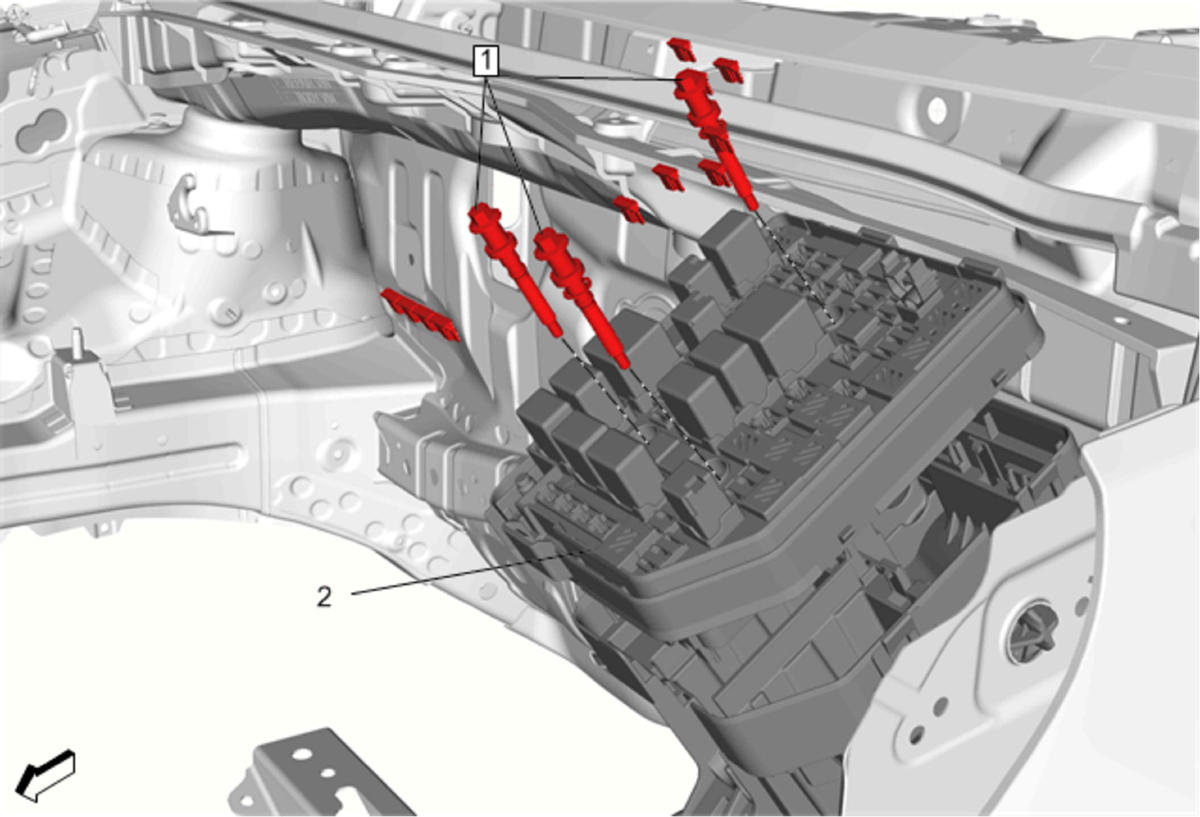

Fig 2: Junction Block Bolts And Junction Block
Courtesy of GENERAL MOTORS COMPANY
Install the junction block bolts (1) and tighten to 9 N.m (80 lb in).
Position the positive battery cable to the junction block.

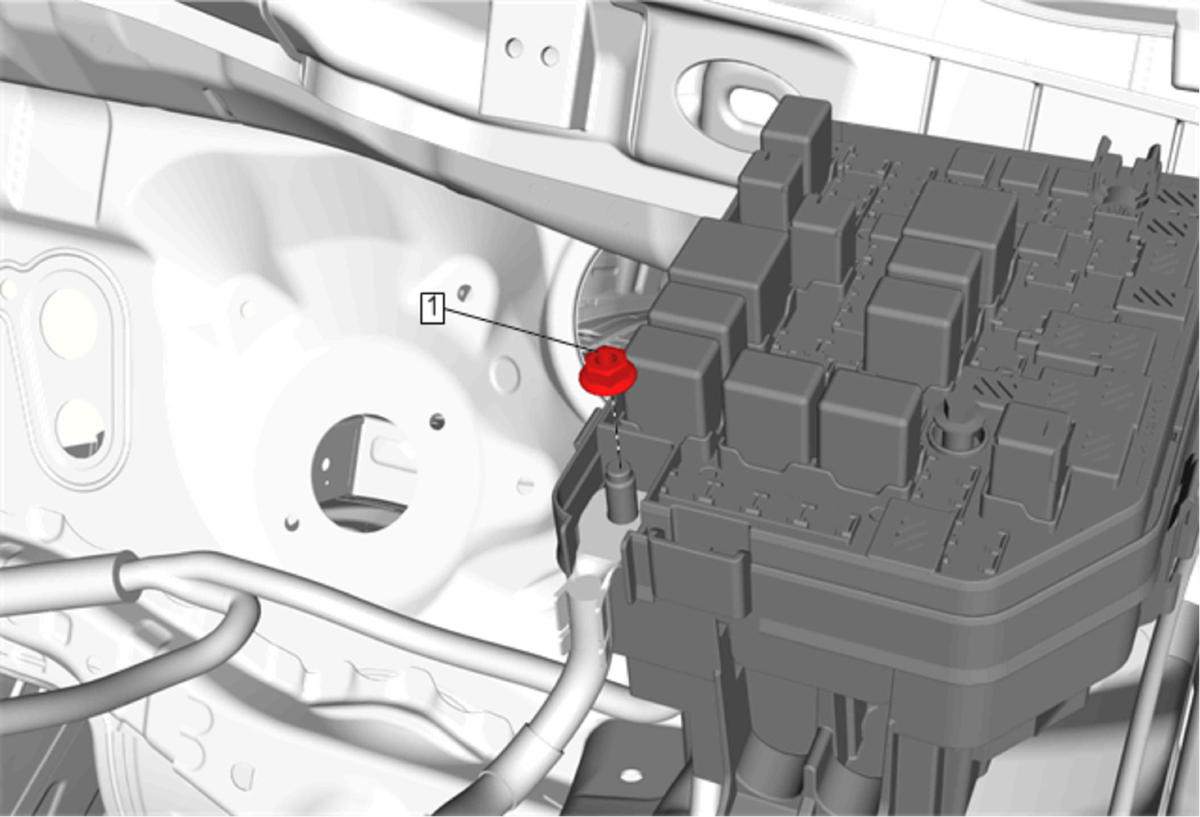

Fig 3: Positive Battery Cable Nut
Courtesy of GENERAL MOTORS COMPANY
Install the positive battery cable nut (1) and tighten to 5 N.m (44 lb in).
Install the junction block cover (1).

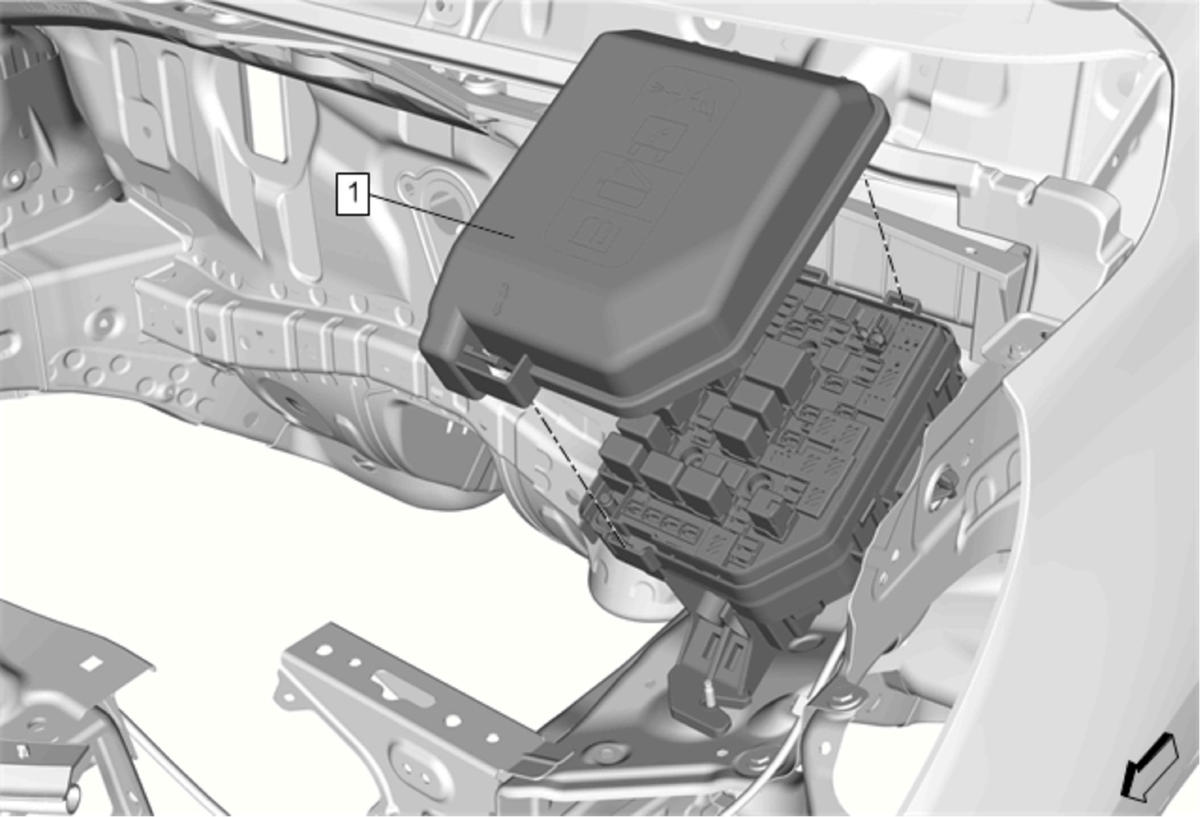

Fig 4: Junction Block Cover
Courtesy of GENERAL MOTORS COMPANY
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
