Installation Procedure

Install the rear wheel speed sensor (2) to the rear brake backing plate spacer.

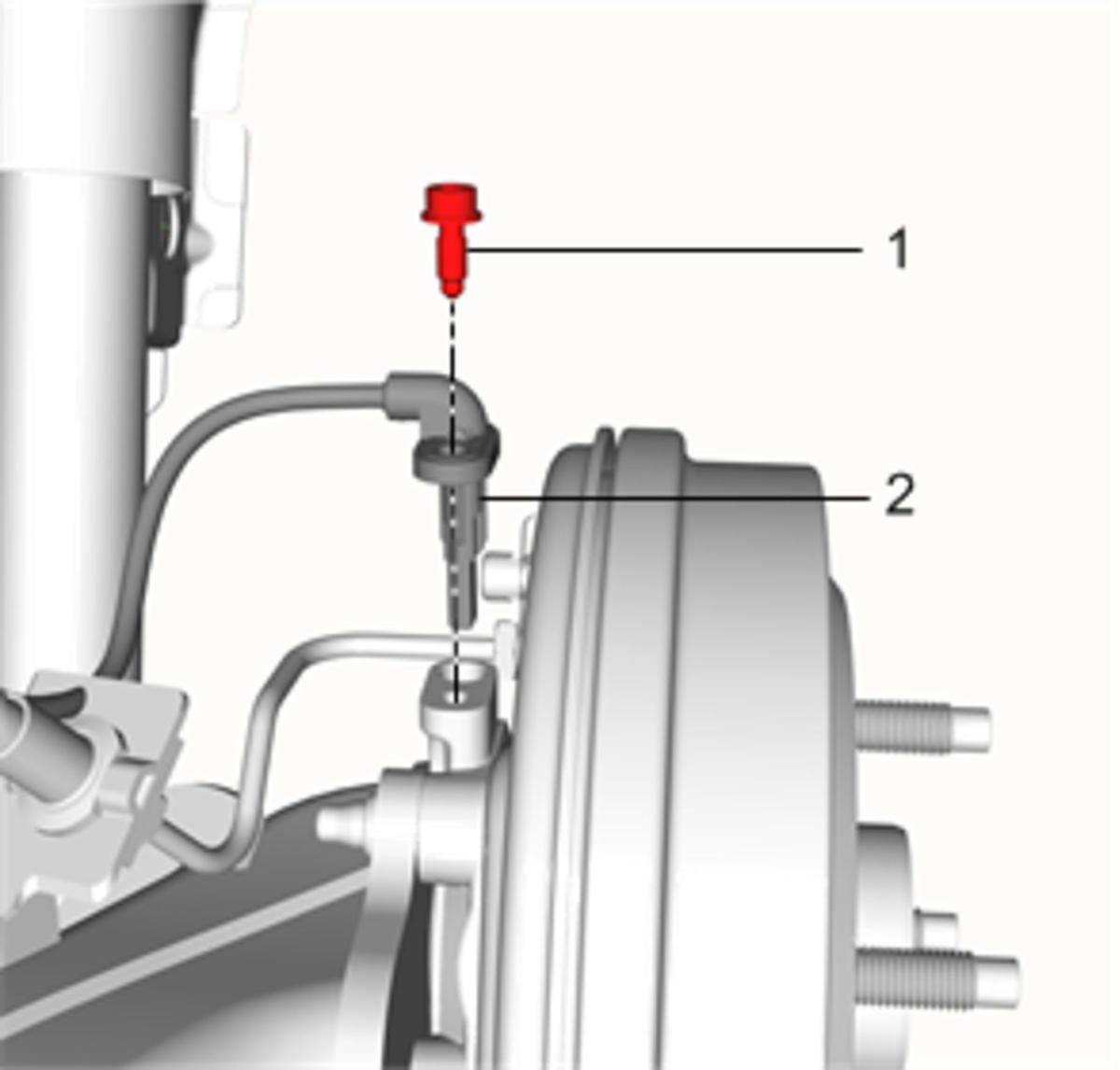

Fig 1: Rear Wheel Speed Sensor Bolt
Courtesy of GENERAL MOTORS COMPANY
Install the rear wheel speed sensor bolt and tighten to 8 N.m (71 lb in).
CAUTION: Refer to Fastener Caution .
Connect the rear wheel speed sensor electrical connector (1) to the body wiring harness.

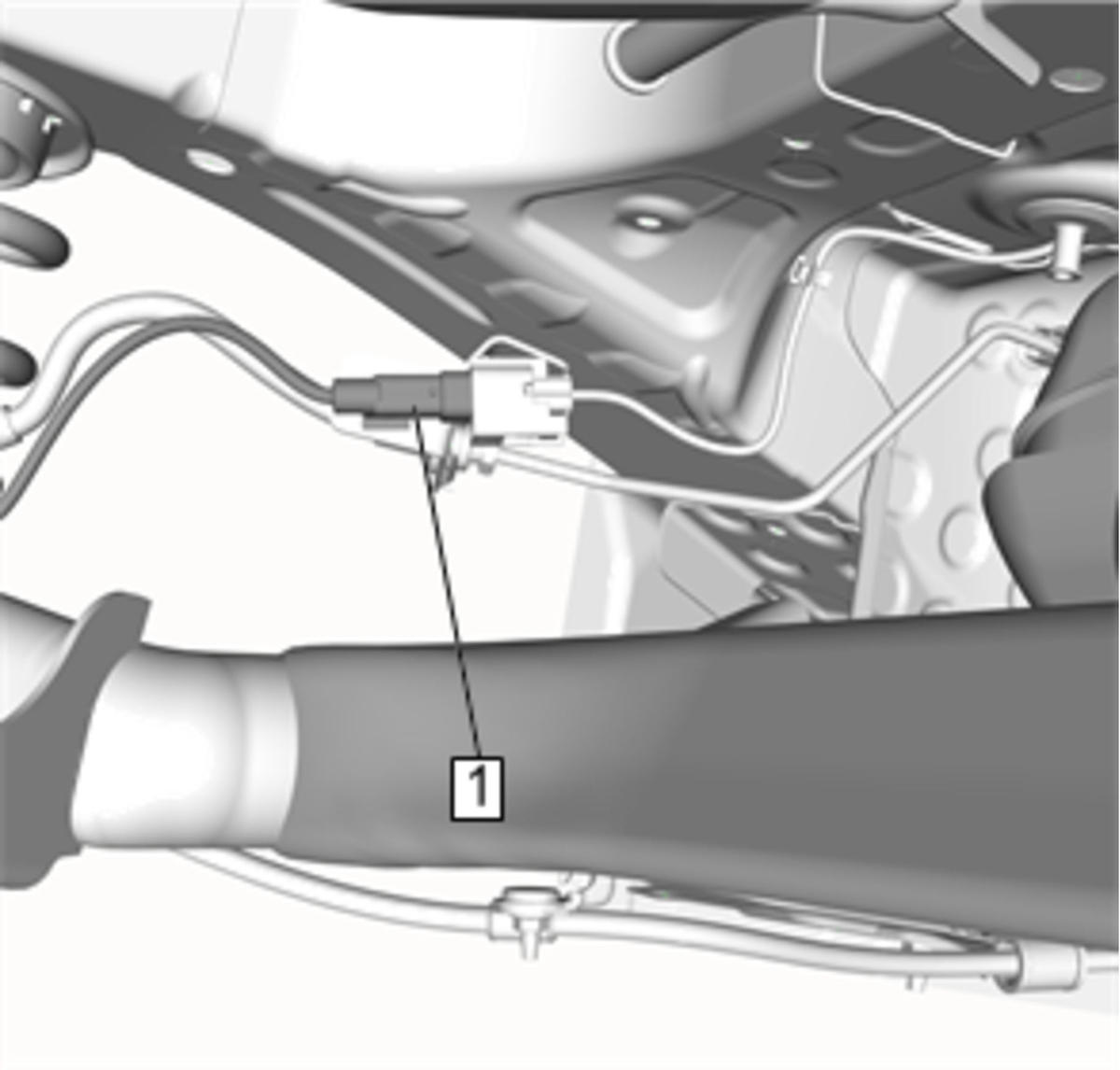

Fig 2: Rear Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS COMPANY
Attach the rear wheel speed sensor harness to the rear axle mounted bracket (2).

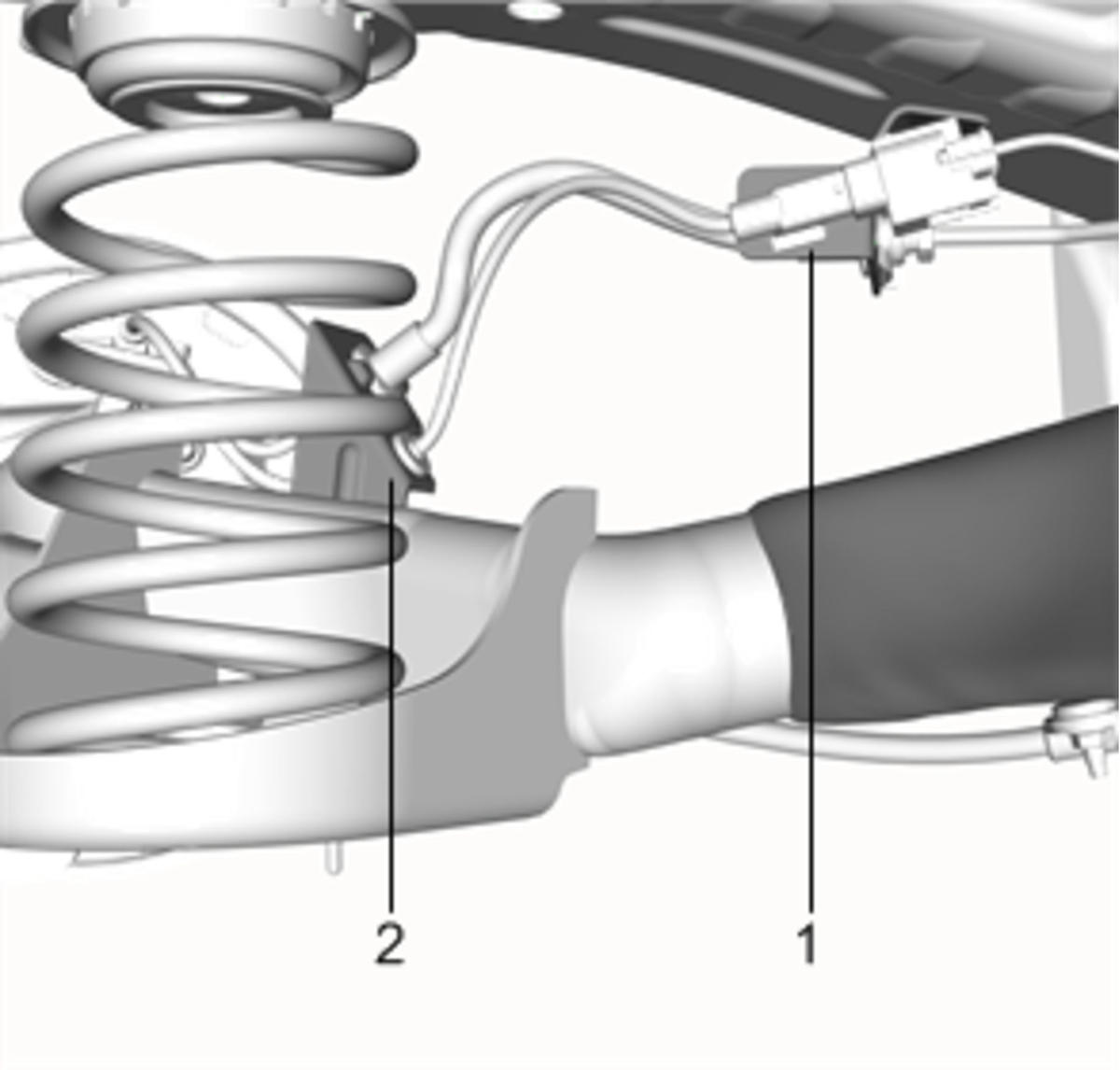

Fig 3: Body Frame Mounted Bracket And Rear Axle Mounted Bracket
Courtesy of GENERAL MOTORS COMPANY
Attach the rear wheel speed sensor harness to the body frame mounted bracket (1).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
