Inflatable Restraint Instrument Panel Compartment Module Disable Switch Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

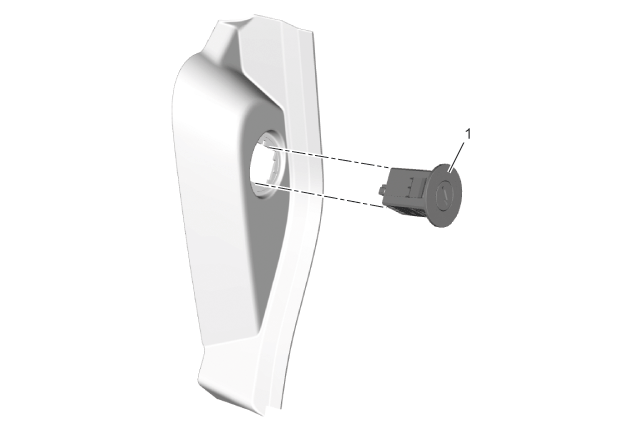

GM3947131
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Instrument Panel Outer Trim Cover Replacement - Right Side
1 Inflatable Restraint Instrument Panel Compartment Module Disable Switch
WARNING:

Verify the proper installation of the airbag disable switch. Ensure the airbag disable switch is functioning properly by activating and deactivating the switch. If the airbag disable switch is not properly installed, and its function is not verified, the airbag may discharge improperly and cause personal injury or death.

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs.
