Headlamp Control Module Bracket Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

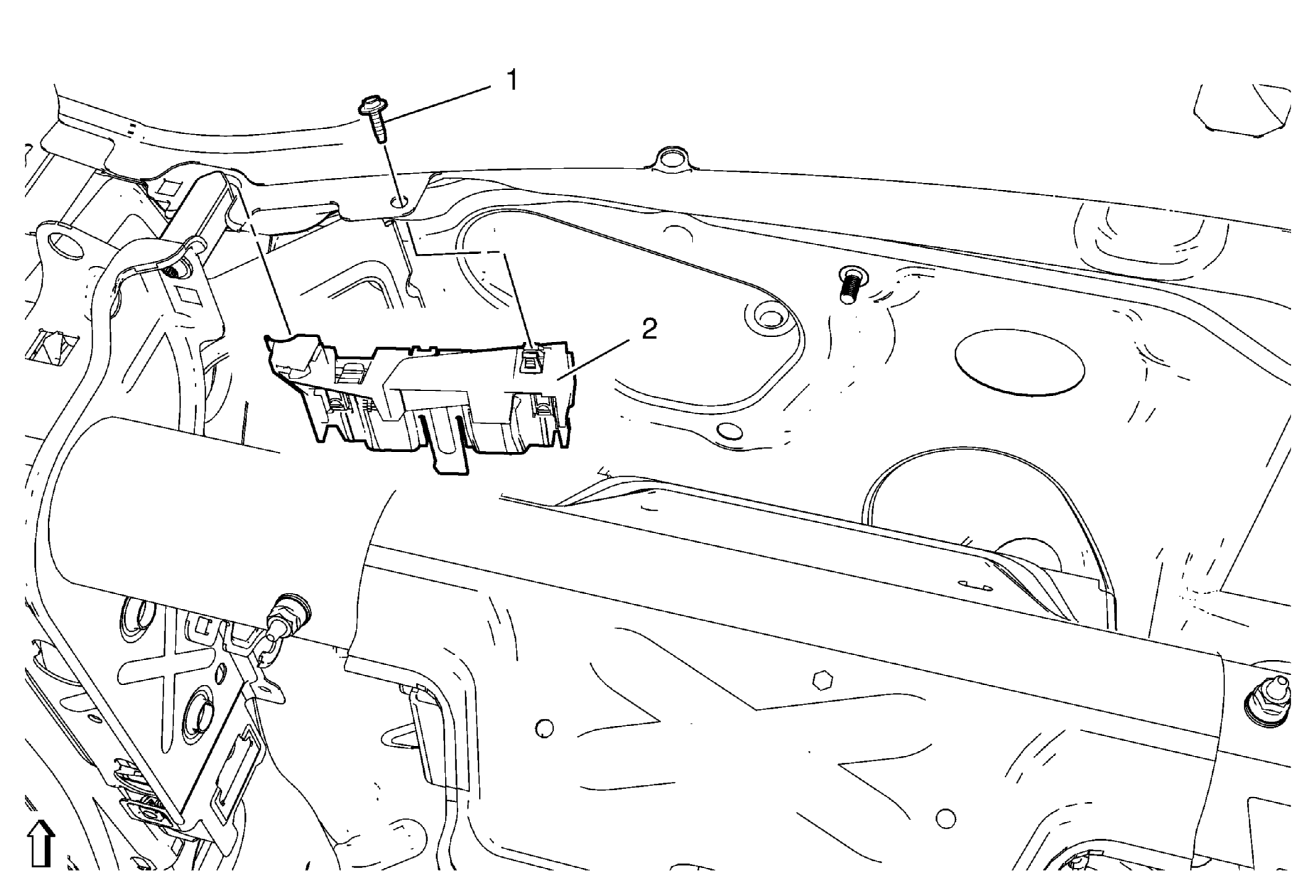

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Headlamp Control Module Bolt CAUTION: Refer to Fastener Caution .
2	Headlamp Control Module Bracket Procedure Disconnect electrical components. Remove headlamp control module. Refer to Headlamp Control Module Replacement .

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Headlamp Control Module Bolt

CAUTION:

Refer to Fastener Caution .

Headlamp Control Module Bracket

Procedure

Disconnect electrical components.
Remove headlamp control module. Refer to Headlamp Control Module Replacement .
