Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield outside moisture sensor to the windshield.

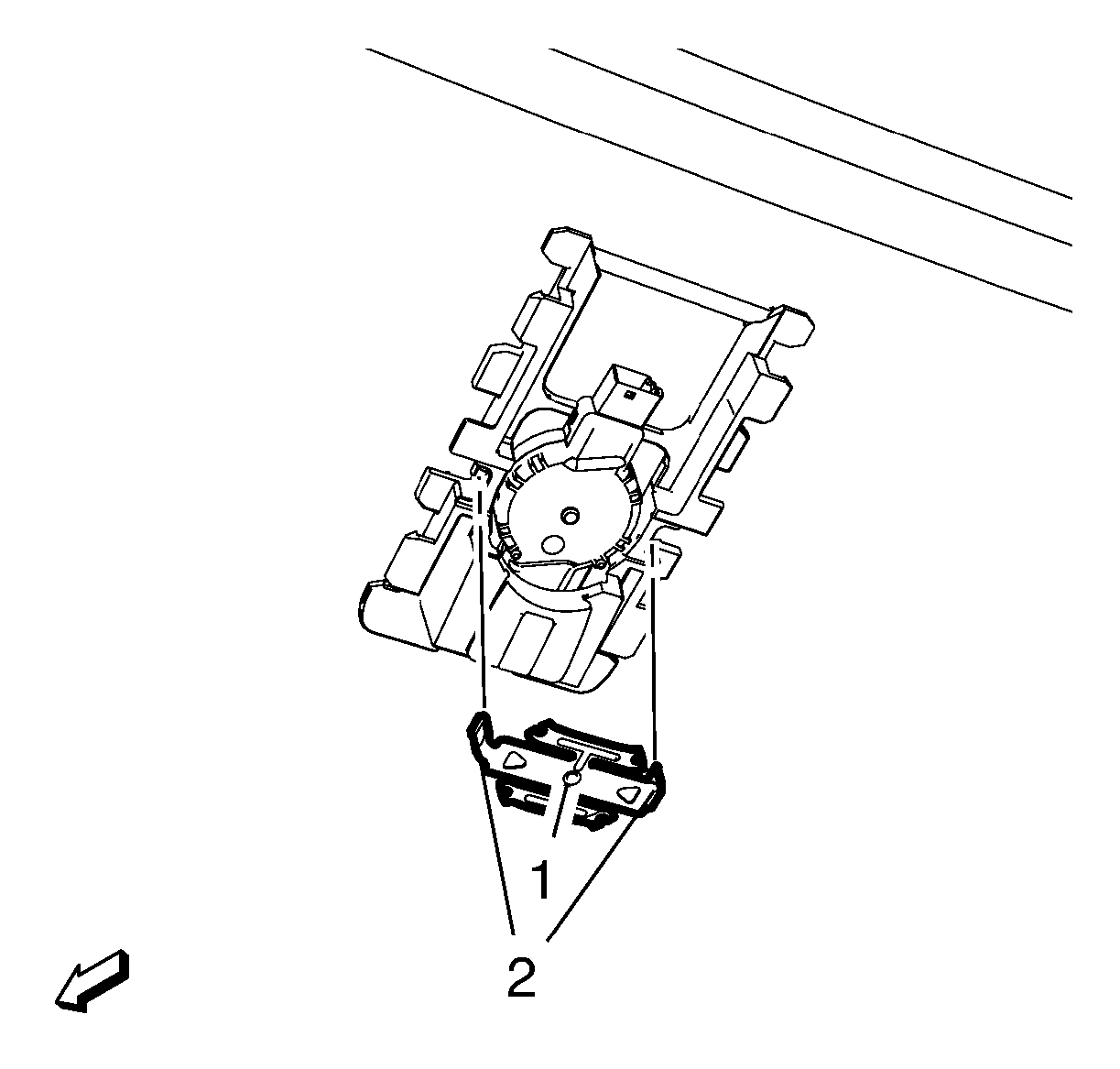

  2. GM3471717

    To install the windshield outside moisture sensor spring (1) push them and lock the 2 retainer (2).

  3. Install the vehicle direction camera cover. Refer to Vehicle Direction Camera Cover Replacement .
