Front Seat Adjuster Memory Module Bracket Replacement

Procedure

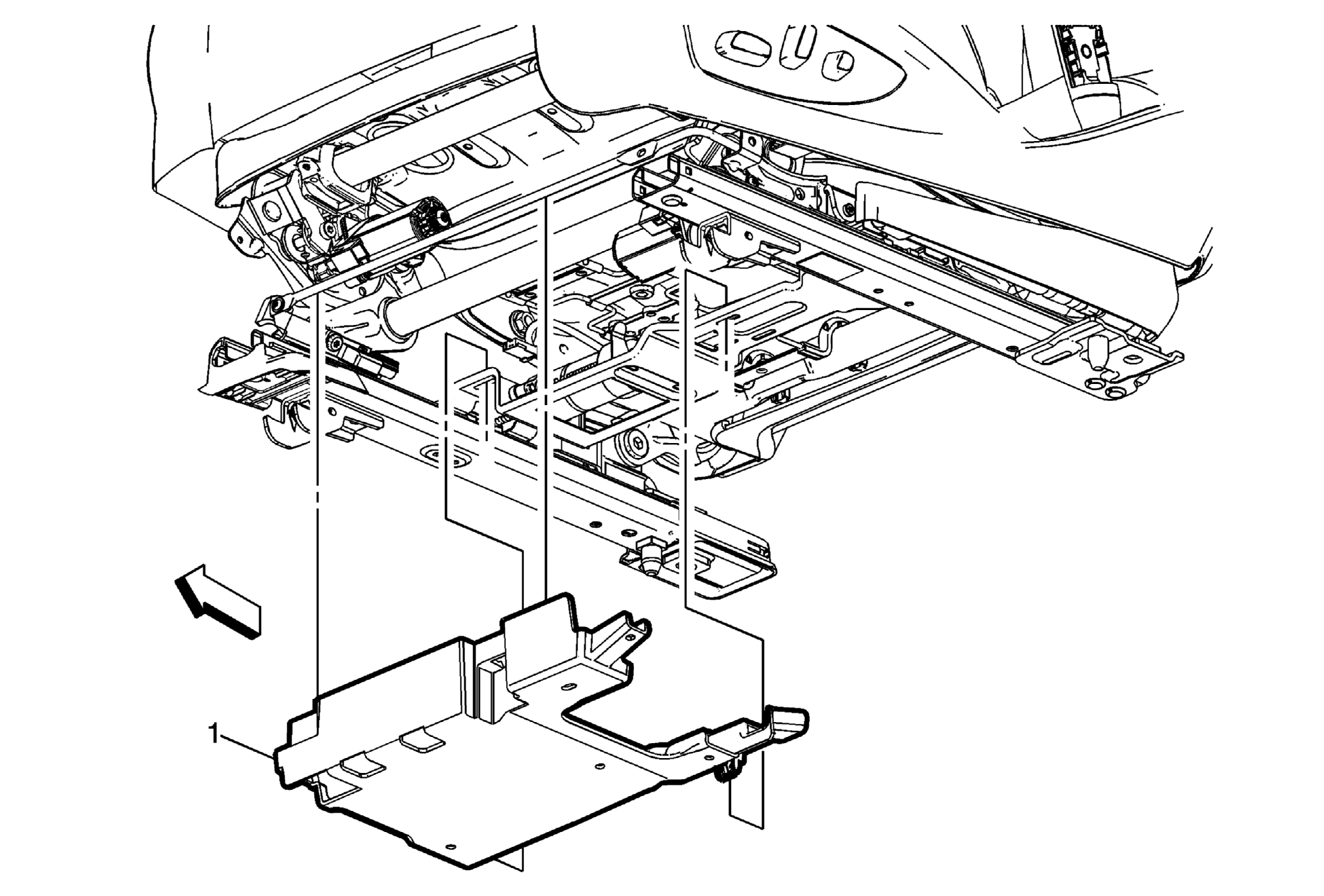

1. Raise the seat to the highest position to gain access to the module bracket.
2. Disconnect the electrical connection.
3. Gently pull forward on the front of the tray to disconnect it from the electrical tray rod.
4. Gently push up on the rear of the cover to disengage the remaining retainers from the seat adjuster actuator motor mounting bracket.
