Windshield Washer Solvent Level Switch Replacement

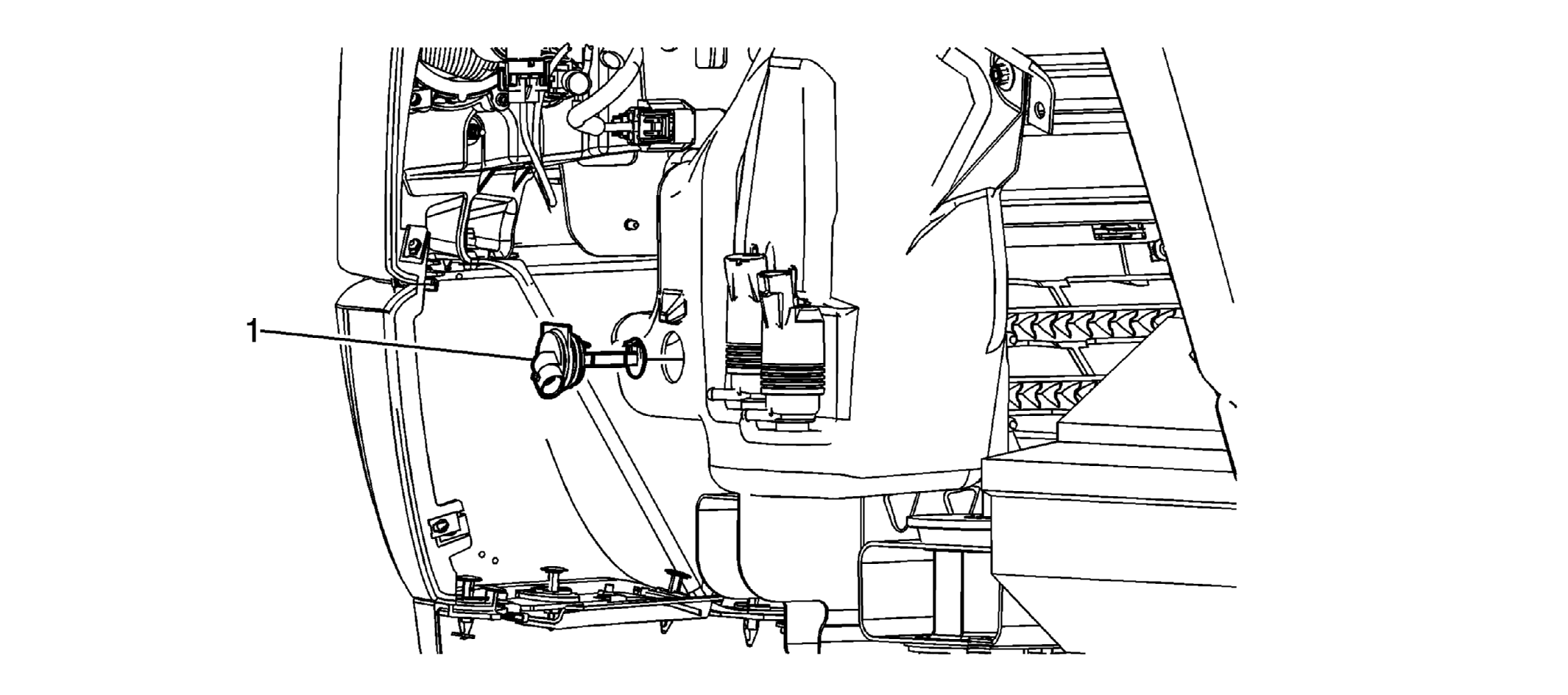

Fig 1: Windshield Washer Solvent Level Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the wheelhouse liner in order to access the level indicator. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
1	Windshield Washer Solvent Level Indicator Procedure Disconnect the electrical connector. Using two flat-bladed tools under the lip of the level indicator, pry outward using a suitable clean container in order to recover the windshield washer solvent. Discard the level indicator and grommet.

Callout

Component Name

Preliminary Procedure
Remove the wheelhouse liner in order to access the level indicator. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .

Windshield Washer Solvent Level Indicator

Procedure

Disconnect the electrical connector.
Using two flat-bladed tools under the lip of the level indicator, pry outward using a suitable clean container in order to recover the windshield washer solvent.
Discard the level indicator and grommet.
