Installation Procedure

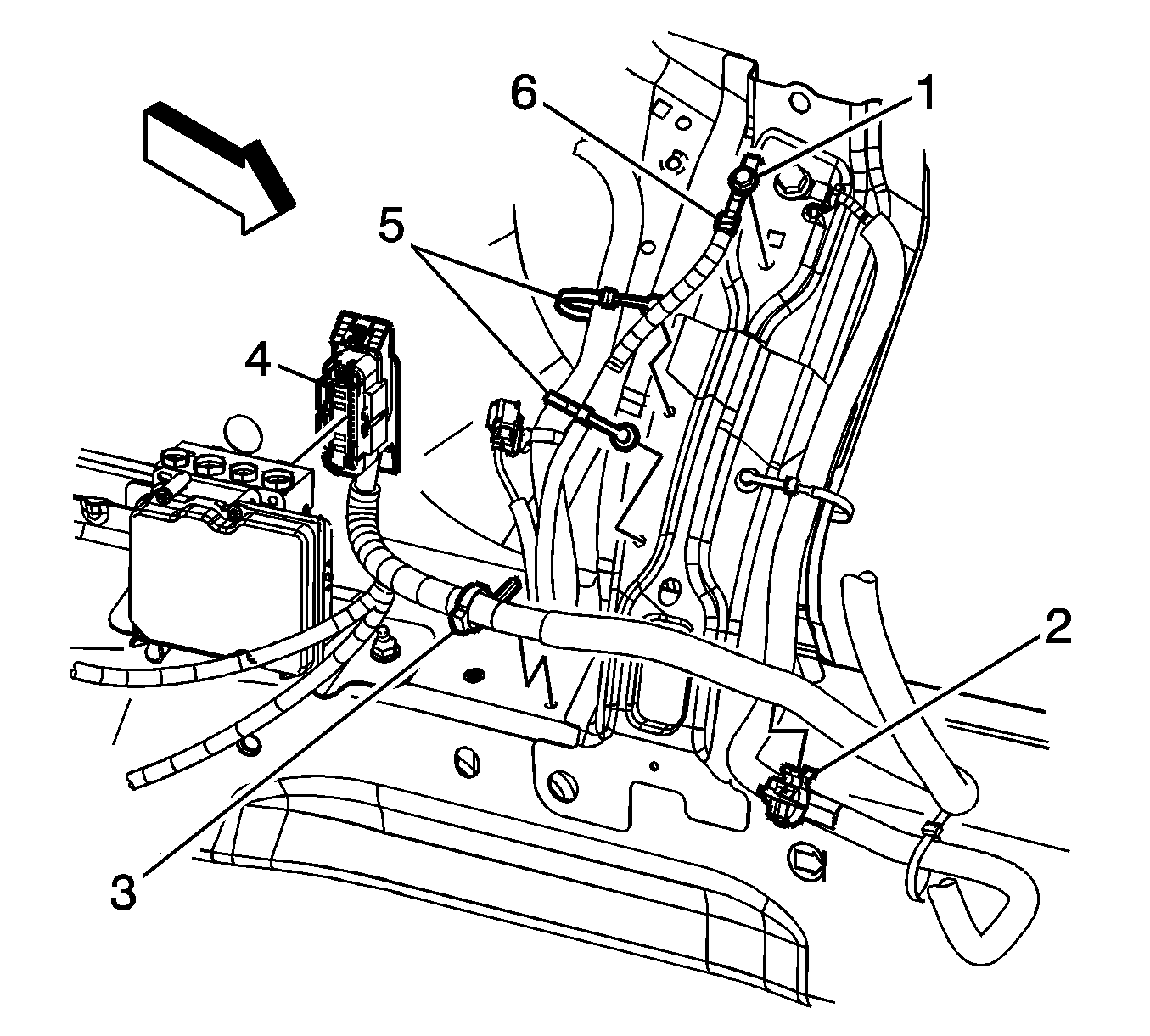

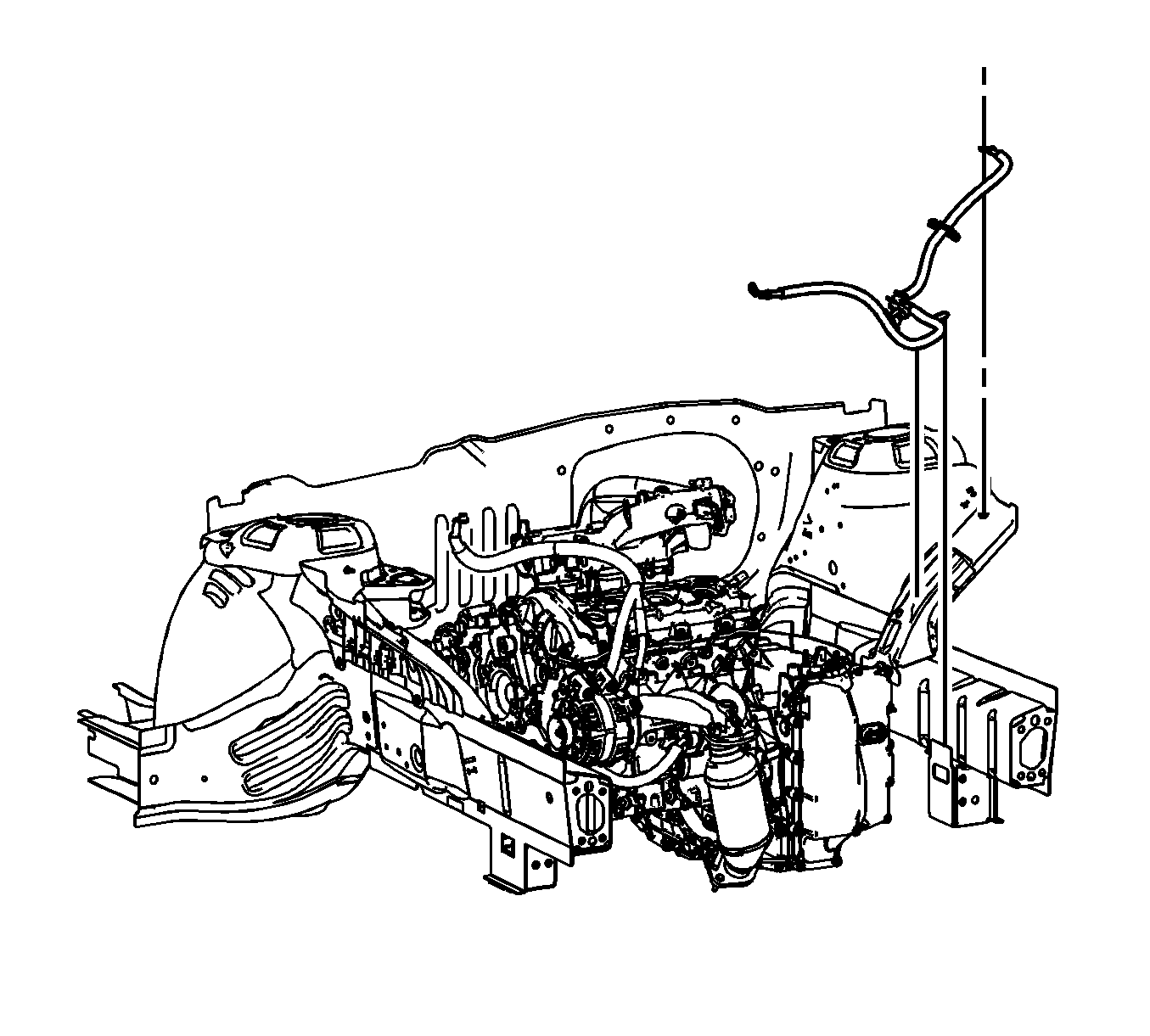

Fig 1: Battery Negative Cable Extension Cable

Courtesy of GENERAL MOTORS COMPANY

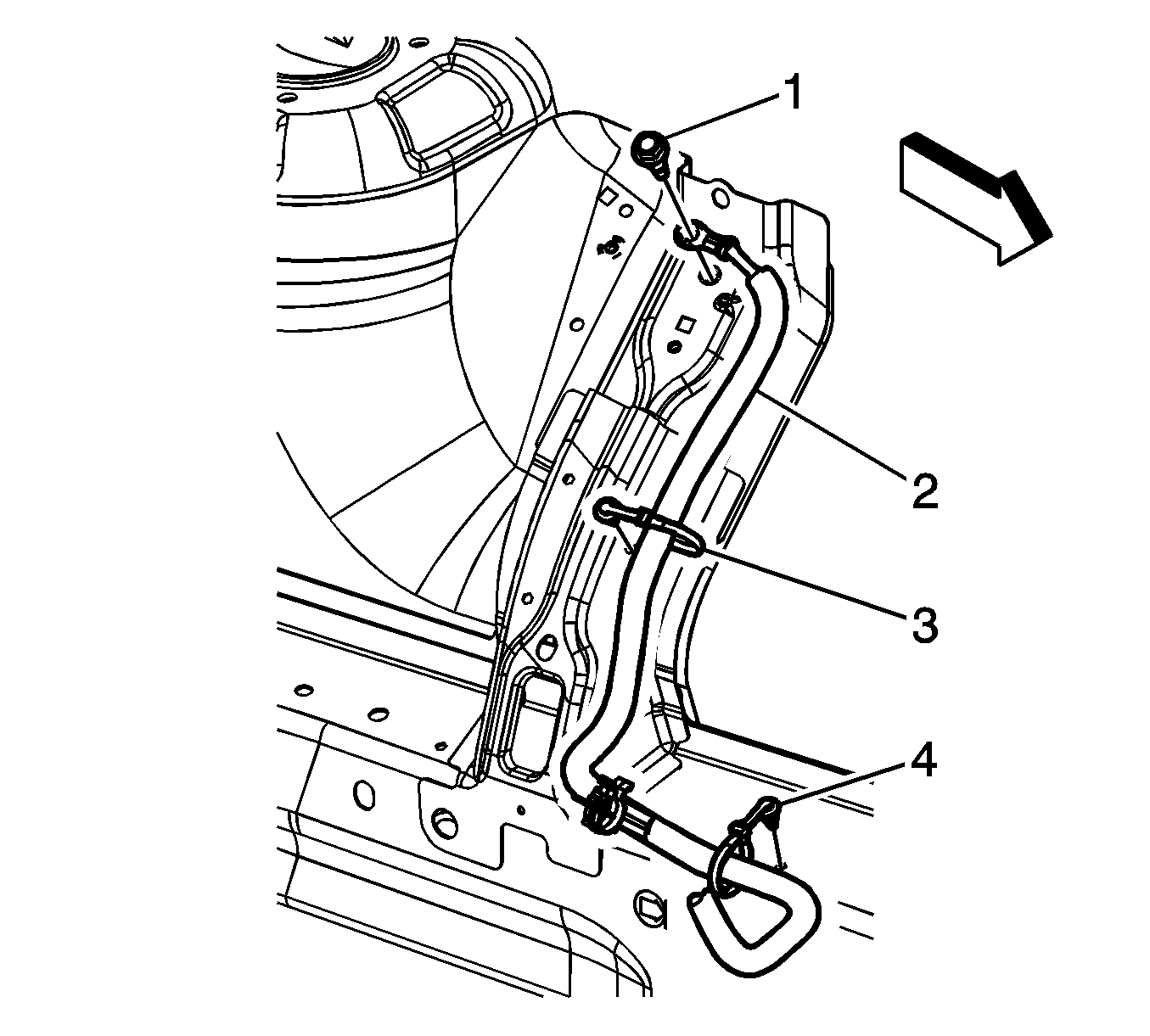

Fig 2: Battery Negative Extension Cable Ground Bolt & Battery Negative Extension Cable Clip

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the battery negative cable extension cable ground bolt (1) to the left wheelhouse panel upper reinforcement.
Tighten

Tighten the bolt to 58 N.m (43 lb ft).
Install the battery negative cable extension cable clip (3) to the left upper engine compartment support bracket.
Install the battery negative cable extension cable clip (4) to the front compartment side rail.

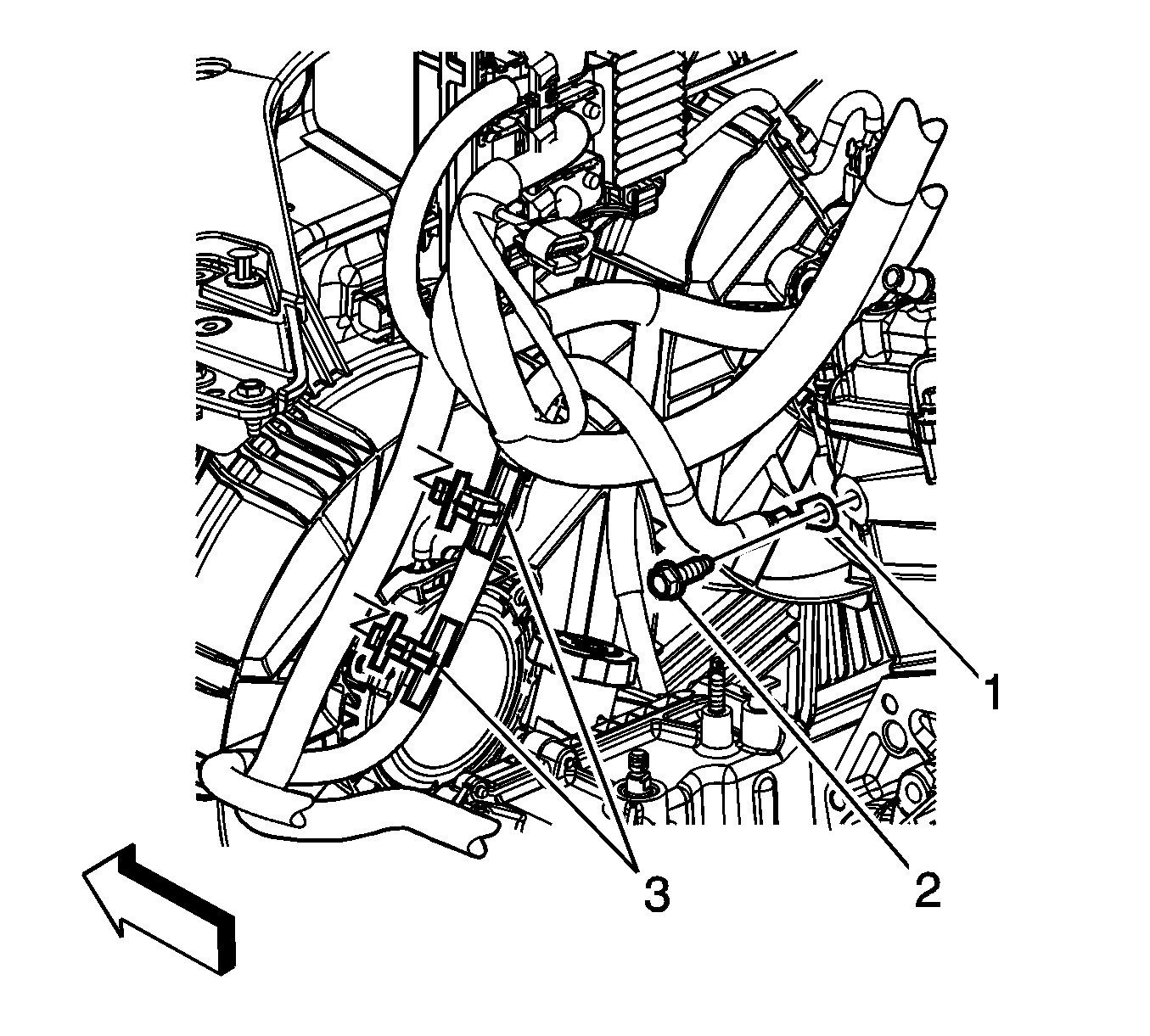

Fig 3: Battery Negative Extension Cable Ground Bolt & Battery Negative Extension Cable Terminal

Courtesy of GENERAL MOTORS COMPANY

Position the battery negative cable extension cable terminal (1) to the cylinder head.
Install the battery negative cable extension cable ground bolt (2) to the cylinder head.
Tighten

Tighten the bolt to 58 N.m (43 lb ft).

Fig 4: Battery Negative Cable Extension Cable Clip

Courtesy of GENERAL MOTORS COMPANY

Install the engine wiring harness to the battery negative cable extension cable clip (2).
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
